Victron Battery Switch ON/OFF 275A

Victron Battery Switch ON/OFF 275A
(48V, Ignition Protected, Marine & Van Use)

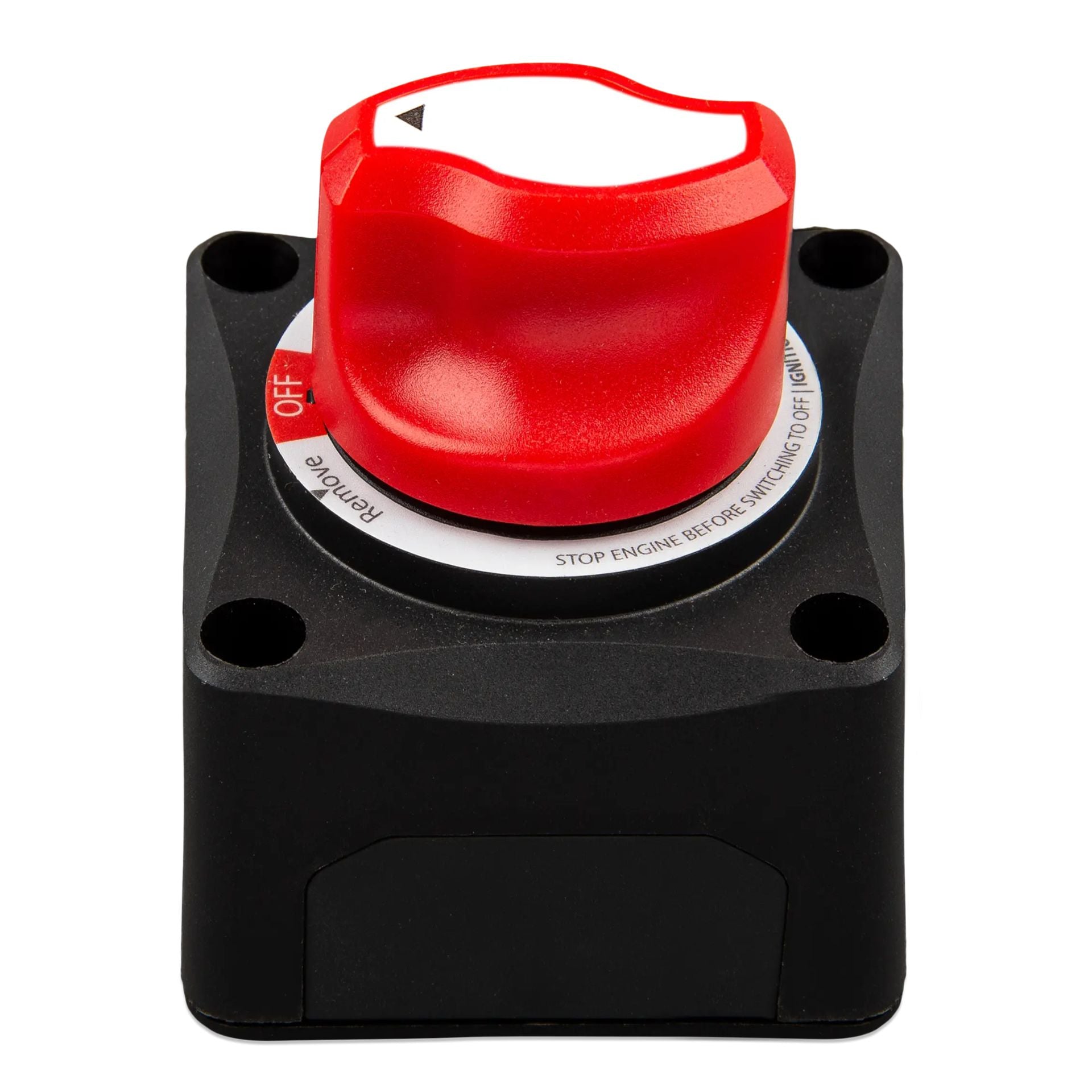

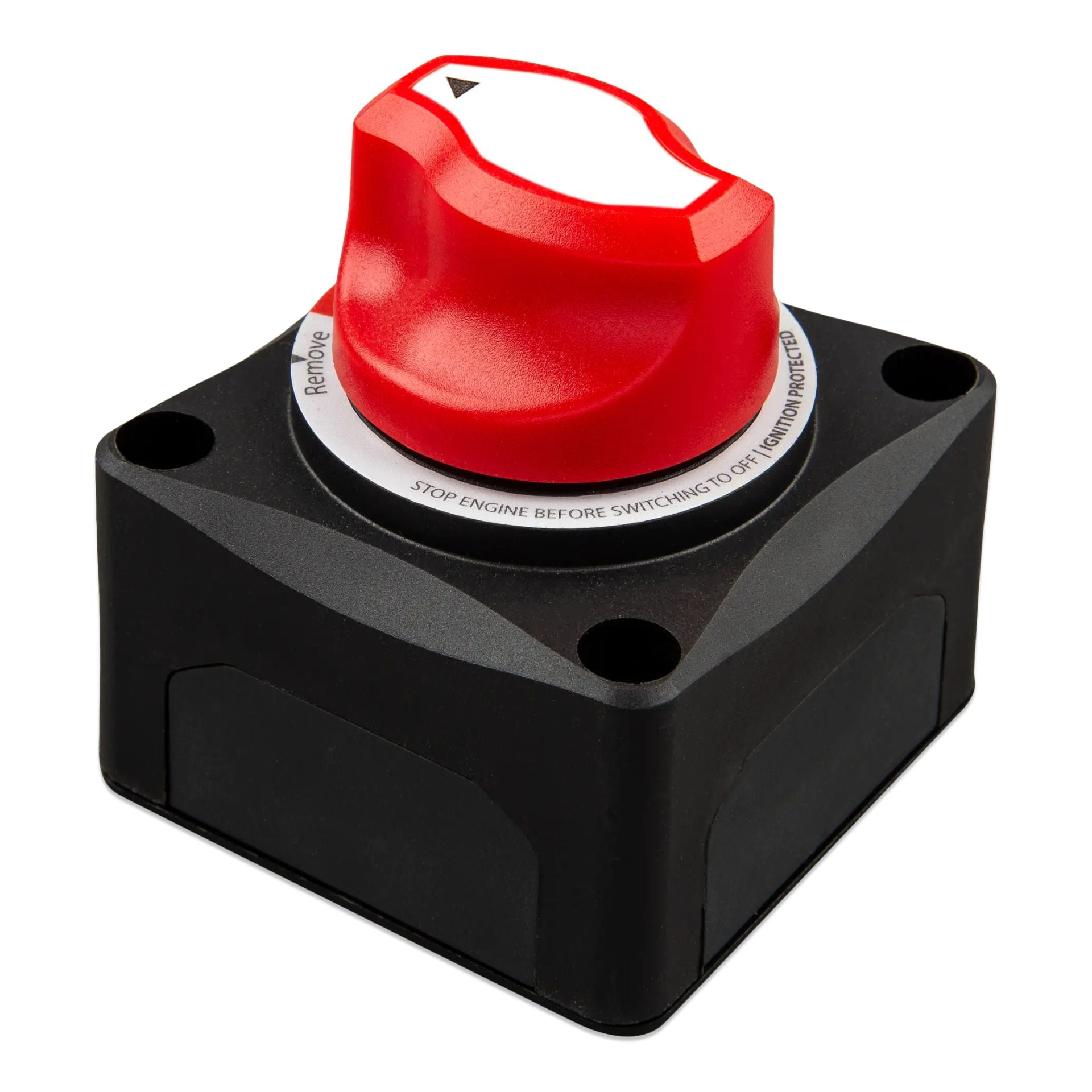

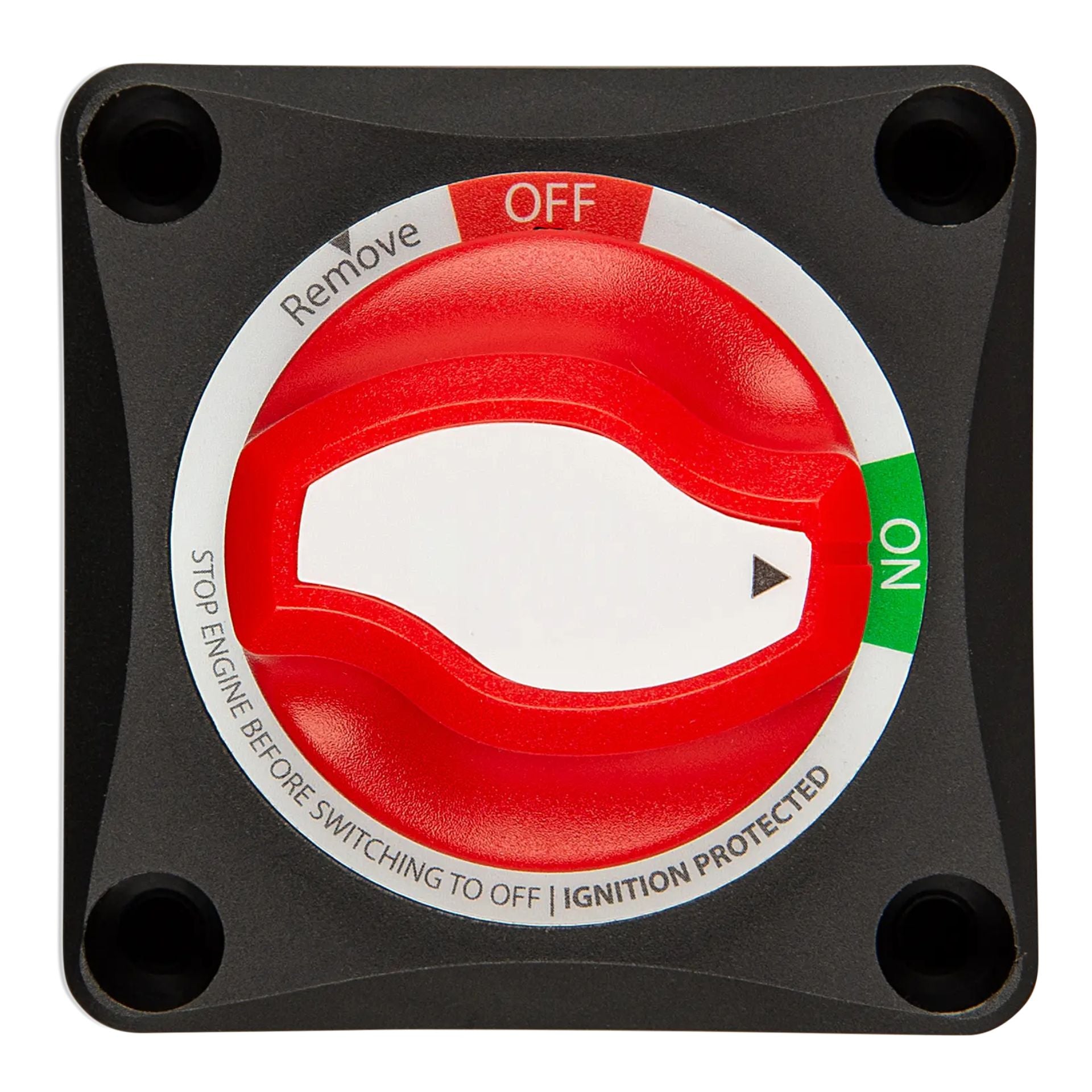

The Victron Battery Switch ON/OFF 275A is designed for marine, van, and off-grid battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes. The Battery Switch can be either surface or panel mounted, providing flexibility during install.

Features

1. Interchangeable label stickers
2. Glass fibre reinforced nylon enclosure
3. Removable cable access window on all 4 sides
4. Removable ergonomic knob

Usages

• The Battery Switch can be used to isolate a battery from DC loads and/or DC charge sources.
• It is used to preserve battery charge in case a system is unattended, for system maintenance or in an emergency.
• It can also be used to parallel connect the house battery to the starter battery to supplement a flat starter battery or a flat house battery in case of an emergency.

Installation

• The Battery Switch can be either surface or panel mounted, providing flexibility during install.

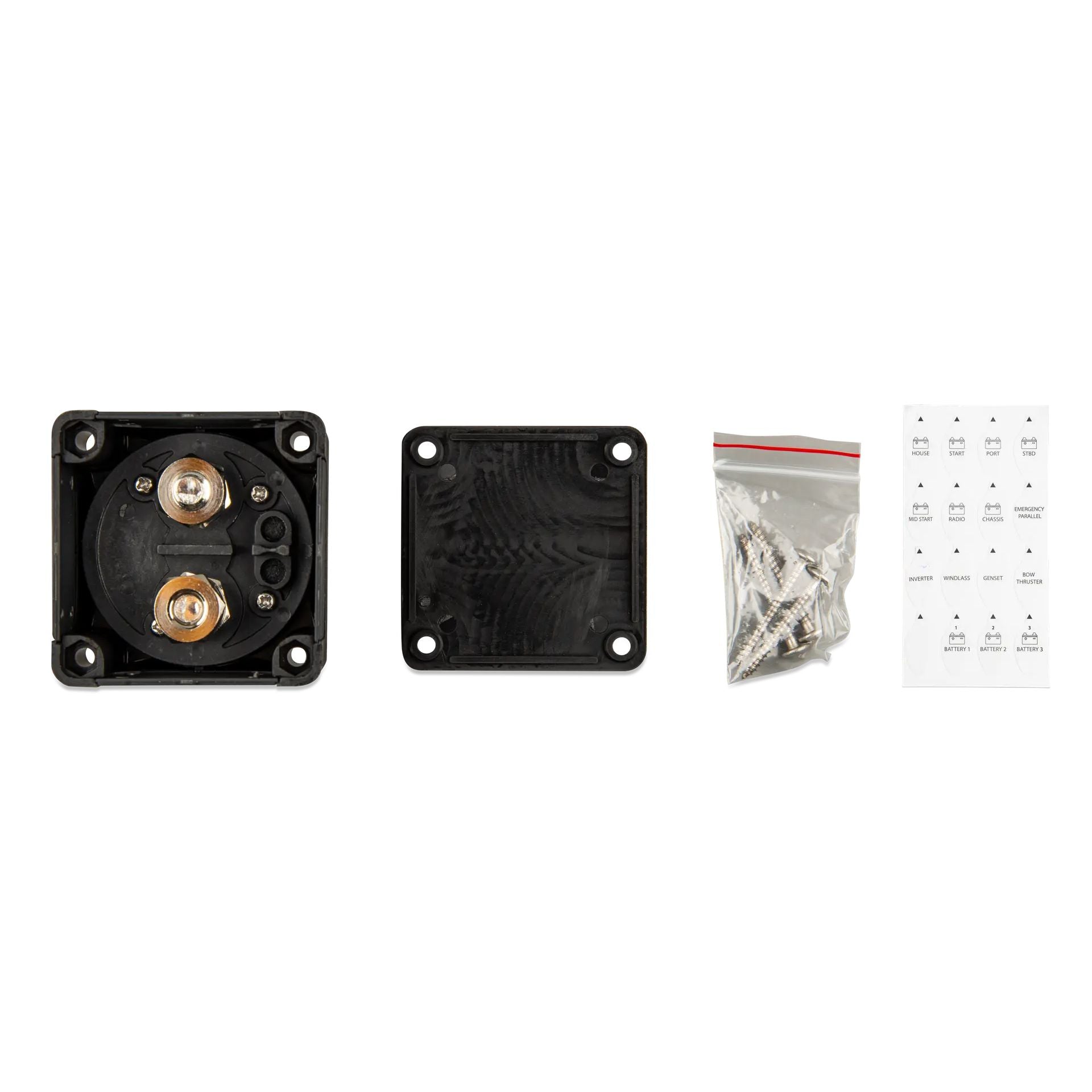

• It features 4 easily removable side panels for cable access.

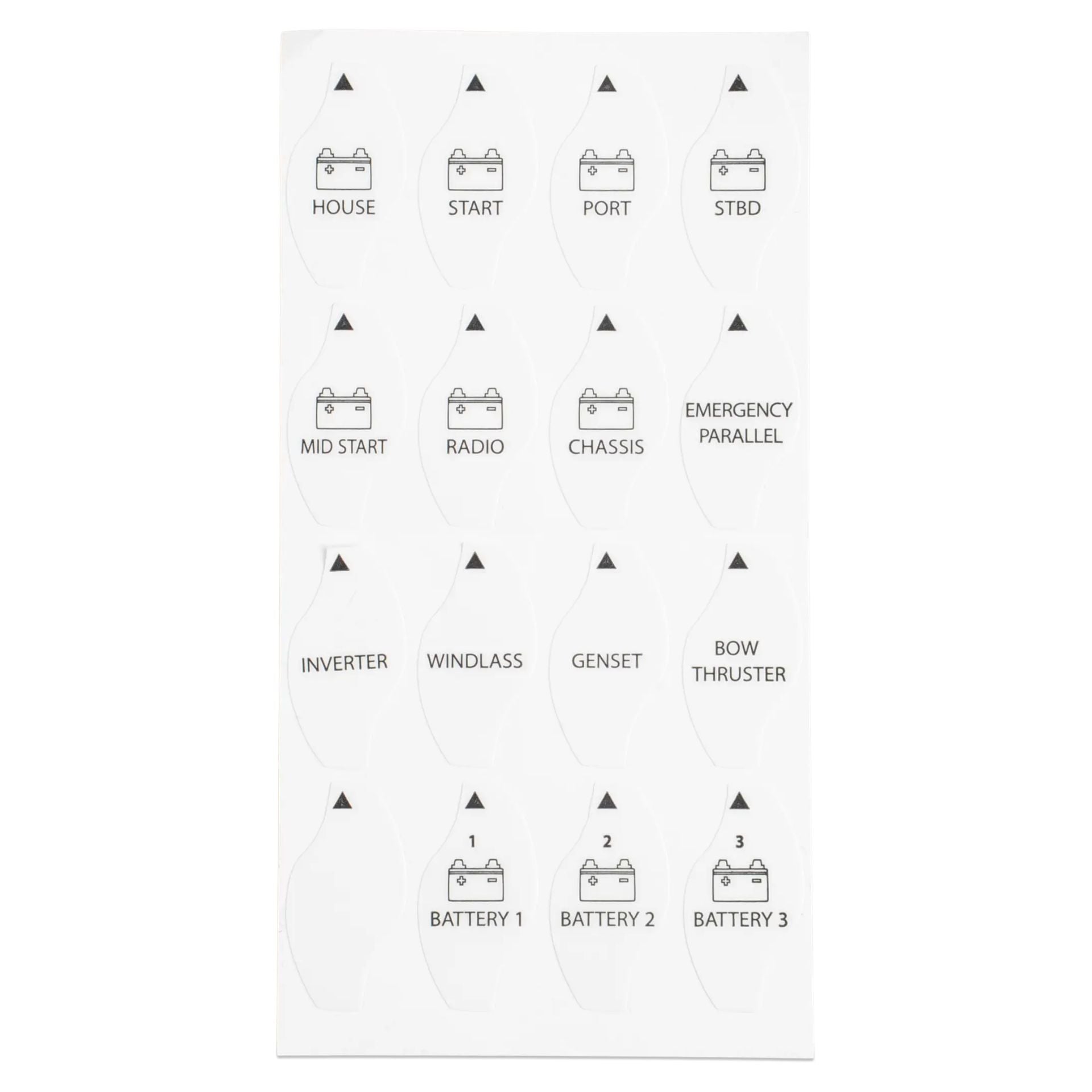

• It ships with 16 different label stickers, for customization of the Battery Switch.

Safety

• The knob is removable for isolation or safety purposes.
• The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

Specifications

• Max. continuous current: 275 A
• One minute rating: 455 A
• Cranking rating: 1250 A
• Maximum operating voltage: 60 V
• Terminal material: Tin-plated copper
• Hex nut material: Tin-plated copper
• Terminal diameter: M10 (3/8 inch / 9.53 mm)
• Recommended torque: 70 lbf·inch / 8 N·m
• Base material: Glass fiber reinforced nylon
• Weight: 0.4 lb / 0.2 kg
• Dimensions (l x w x h): 2.7 x 3.0 x 2.7 inch / 69.5 x 76.3 x 69.5 mm
• Mounting: Surface or rear panel mount
• Ignition protected: ISO8846 / SAE J1171

Documentation

• Datasheet
• User Manual
• Technical Drawing
