Solar Powered Electric Awning with Integrated LED Lighting
Electric Solar Awning for Camper Vans, Sprinter Vans & Off-Grid Use
One-Touch Operation | Built-in Light Strip
Power, Shade, and Light — All in One Smart Electric Solar Awning

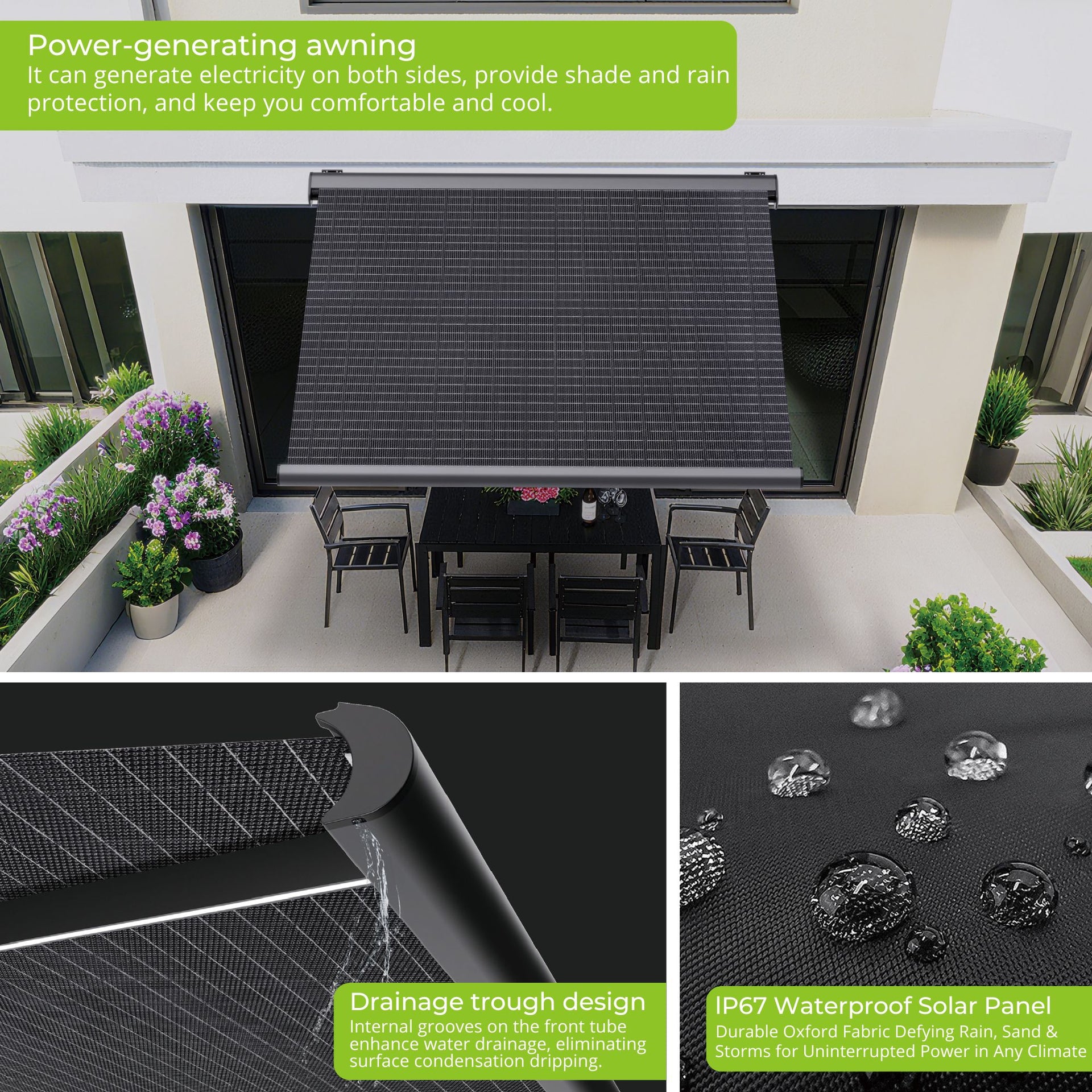

The Solar Powered Electric Awning is a motorized electric solar awning that combines high-efficiency solar power generation with reliable shade and integrated LED lighting. Designed for outdoor applications where space, durability, and energy independence matter. This solar-powered awning generates electricity using integrated solar fabric while also providing shade, UV protection, and rain coverage.

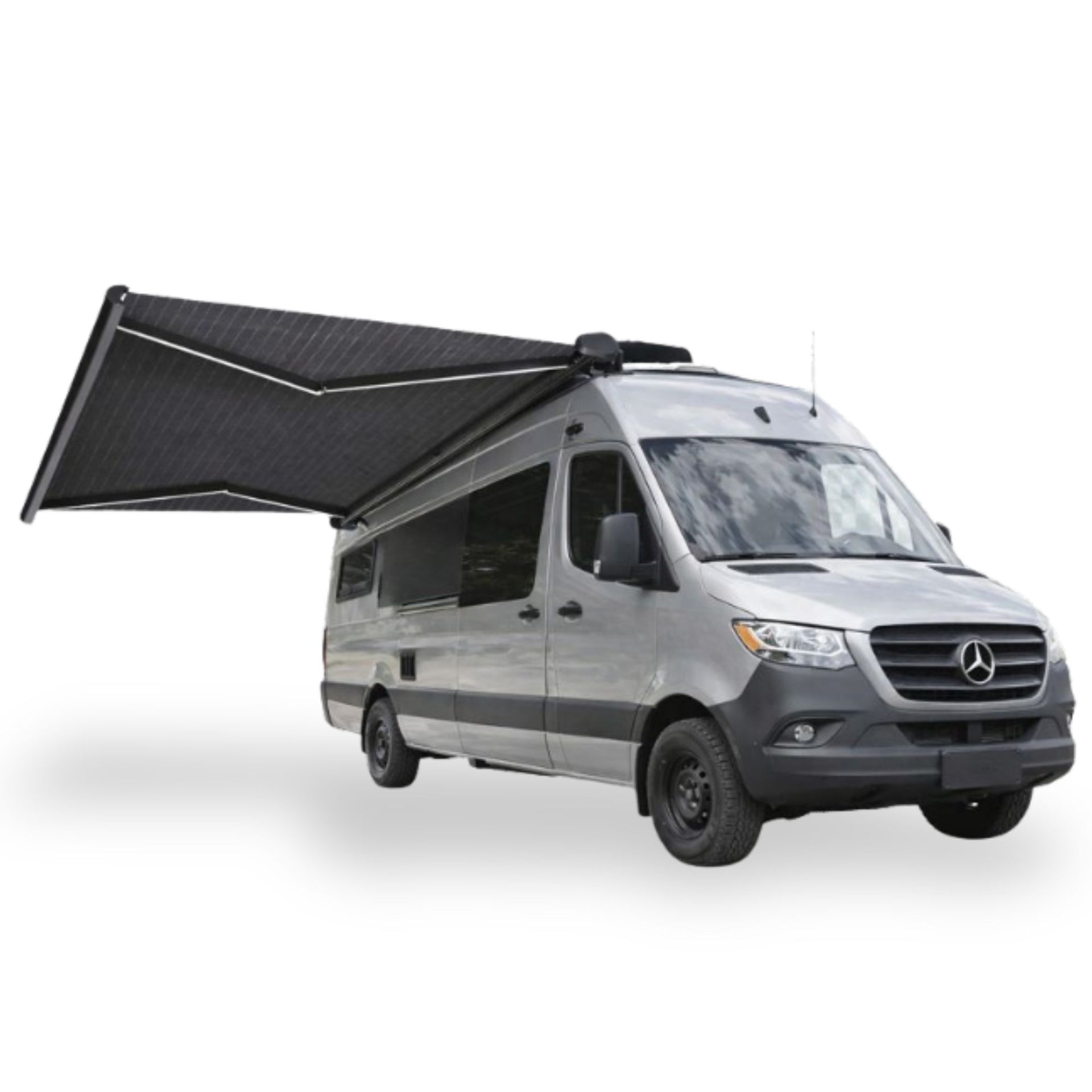

Designed around a 442W solar configuration, this system is purpose-built for Sprinter camper vans, Ram ProMaster vans, and adventure vans, with additional applications for marine docks, overland rigs, commercial outdoor spaces, and off-grid installations.

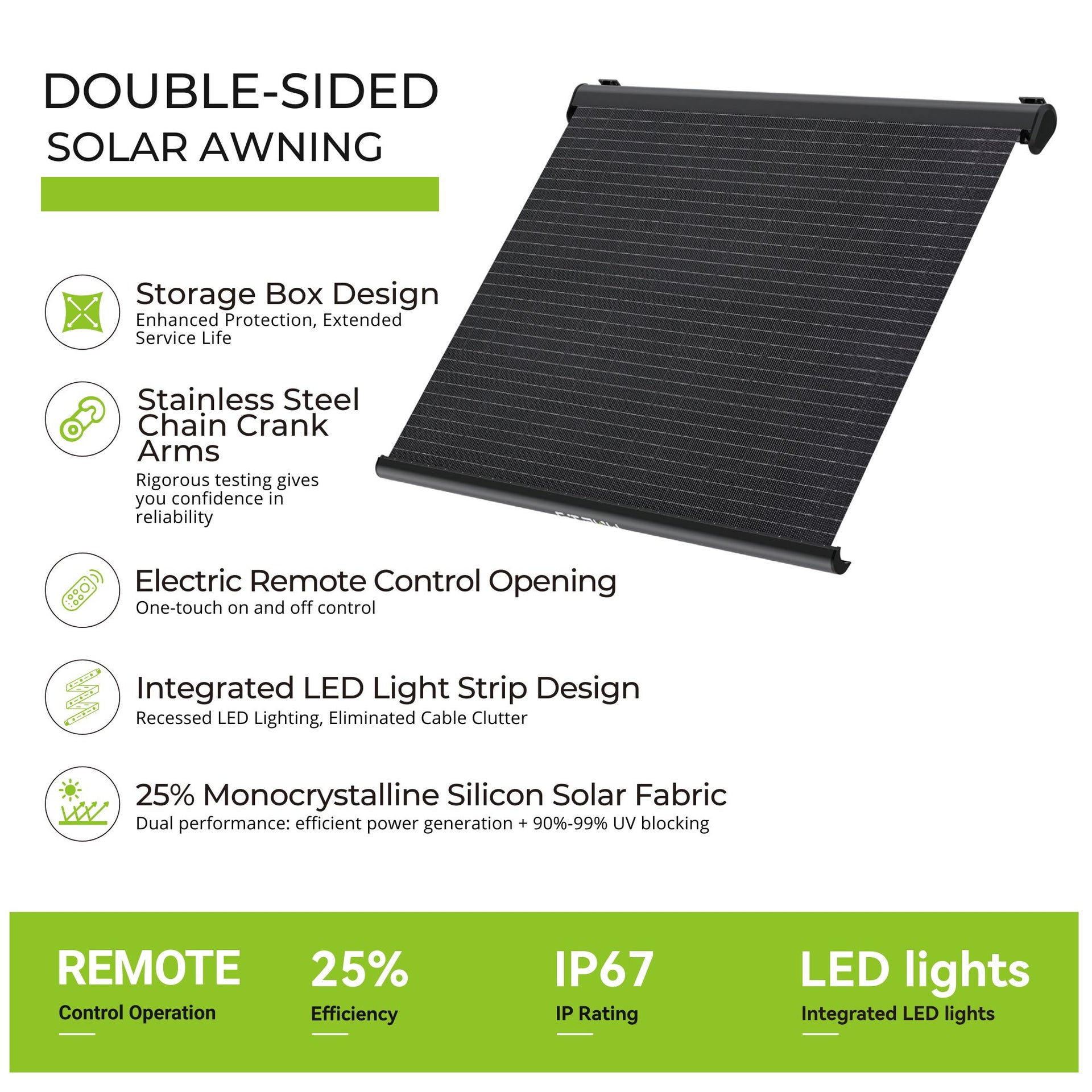

🔹 Key Features

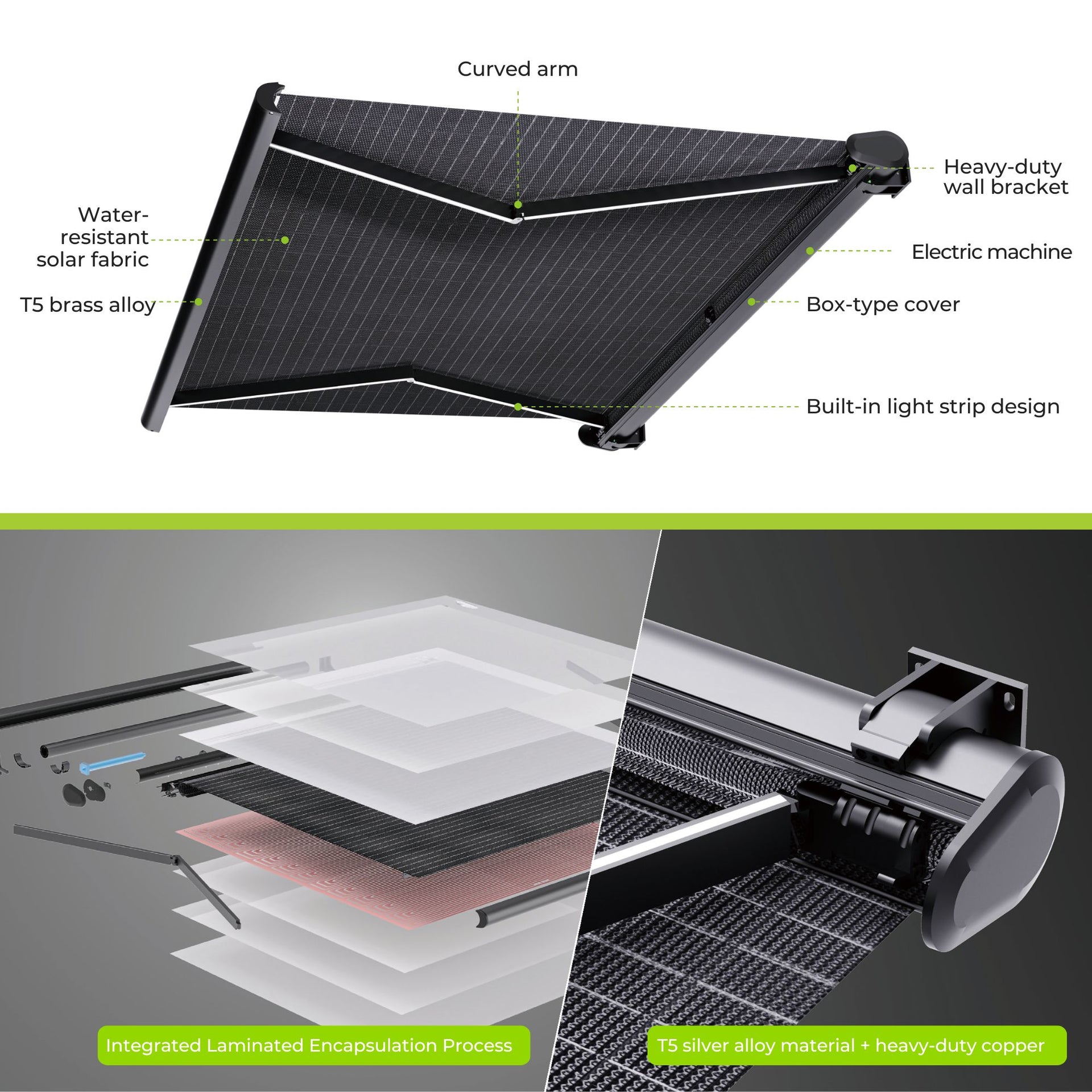

- Double-Sided Solar Awning
- High-Efficiency 25% Monocrystalline Silicon Solar Fabric
- Storage Box Design: Enhanced Protection, Extended Service Life
- Stainless Steel Chain Crank Arms
- Electric Motor with One-Touch Remote Control Operation

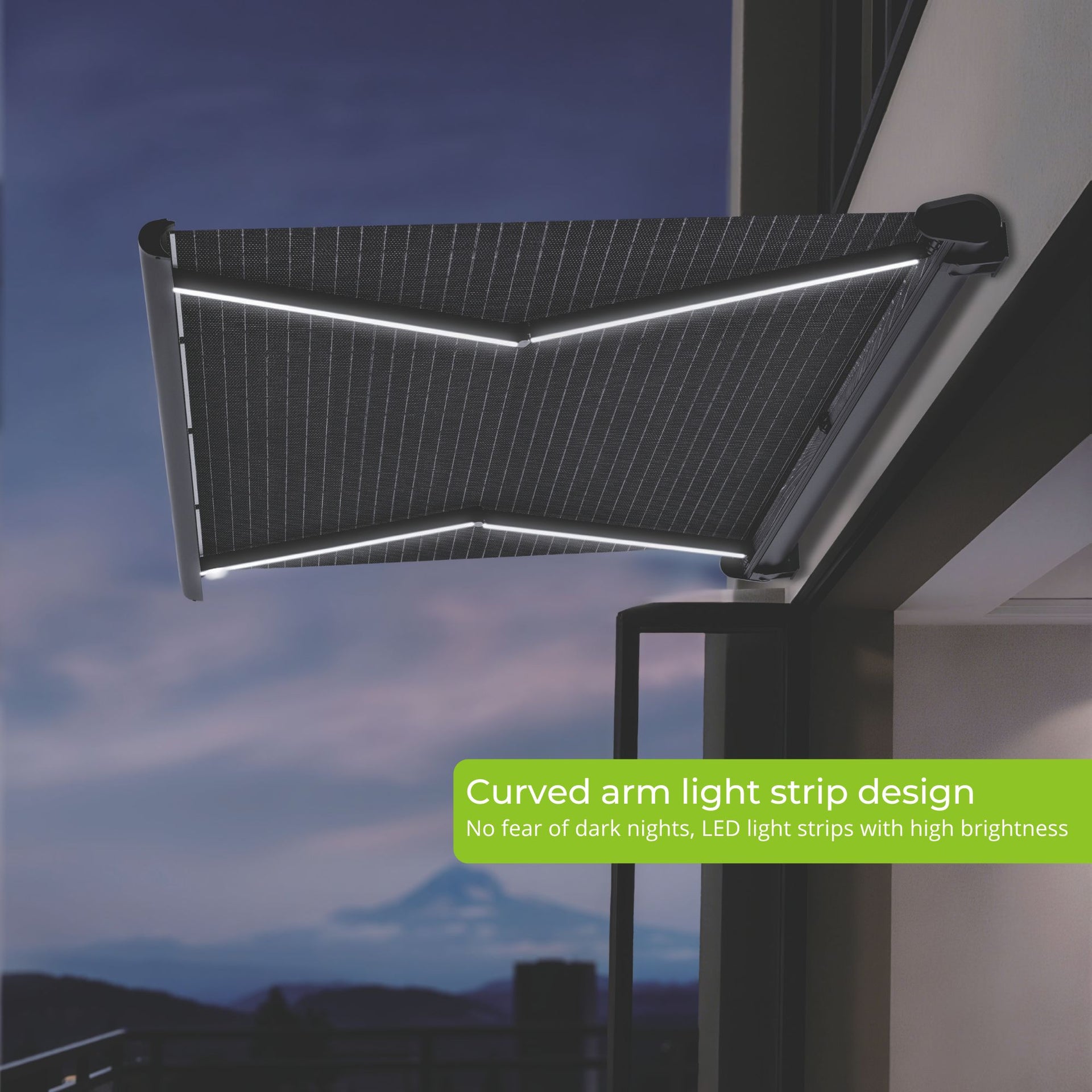

- Integrated LED Light Strip for Nighttime Illumination
- Waterproof Solar Fabric (IP67 Rated)
- Maximum Power: 442W
🔹 Applications (SEO Expansion)
- Marine docks & waterfront installations
- RVs, vans & overland vehicles
- Outdoor patios & commercial spaces
- Off-grid solar systems
- Mobile power and shading solutions

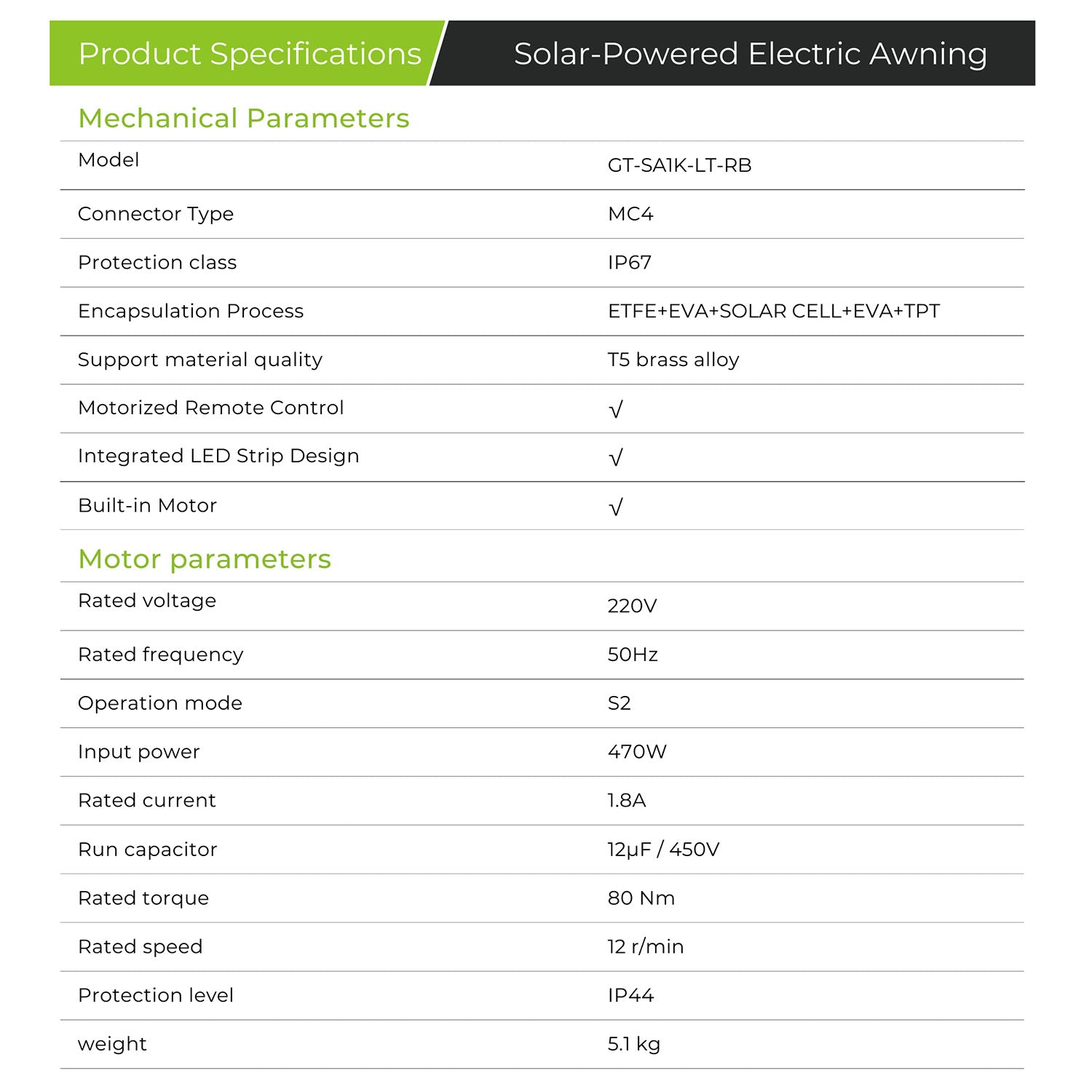

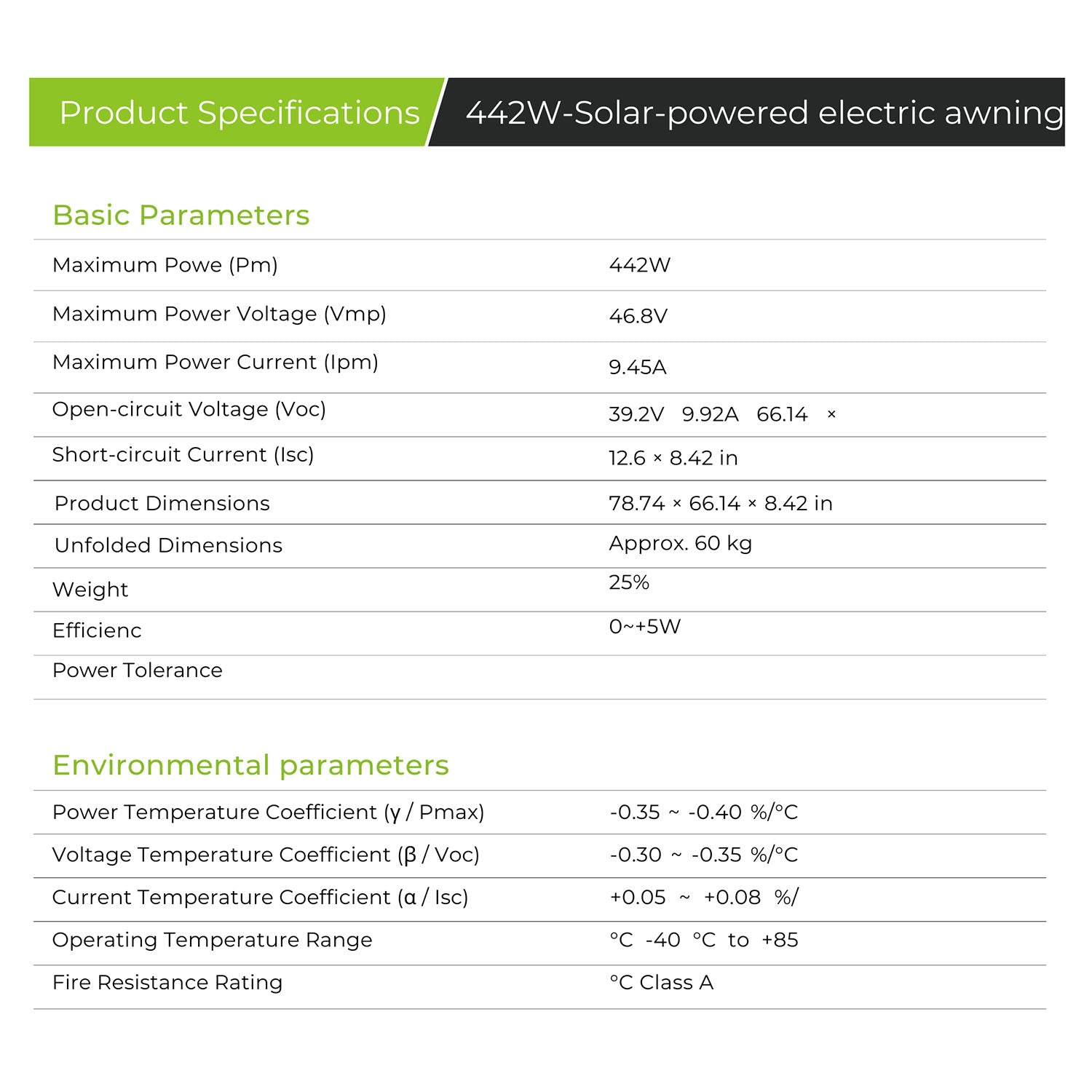

🔹 Specifications
- Solar Cell Type: Monocrystalline Silicon
- Solar Fabric Efficiency: ~25%
- Protection Class: IP67 (Solar Panel)
- Operating Temperature: -40°C to +85°C
- Fire Resistance Rating: Class A
- Motor Control: Electric motor with remote control
- Integrated Lighting: Built-in LED light strip
- Maximum Power (Pm): 442W
- Maximum Power Voltage (Vmp): 46.8V
- Maximum Power Current (Ipm): 9.45A
- Open-circuit Voltage (Voc): 39.2V
- Short-circuit Current (Isc): 9.92A

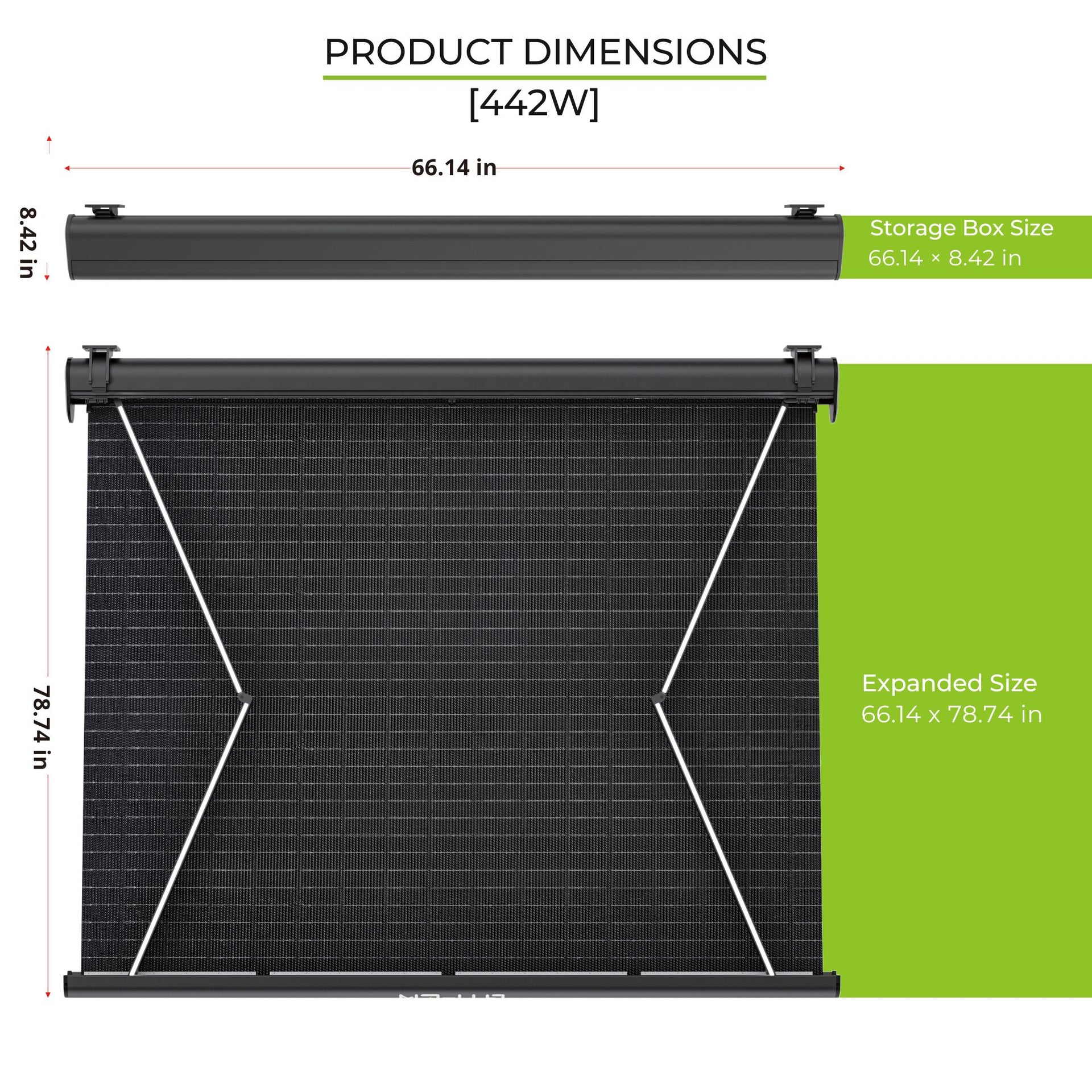

- Product Dimensions: 66.14 × 12.6 × 8.42 in
- Unfolded Dimensions: 78.74 × 66.14 × 8.42 in
- Weight: Approx. 60 kg
