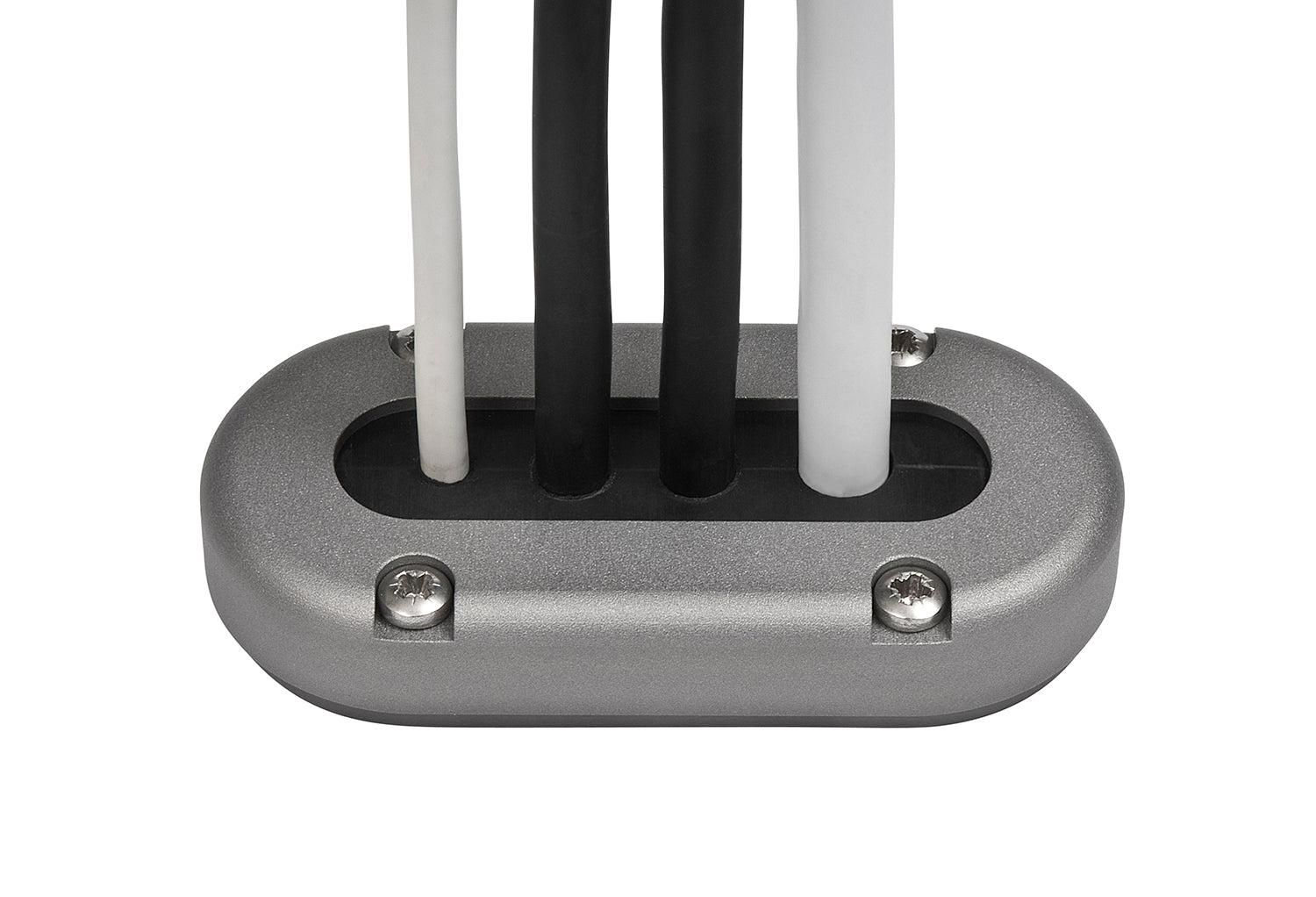

Scanstrut Vertical Multiple Cable Seal Pass Through | Waterproof Marine Cable Gland

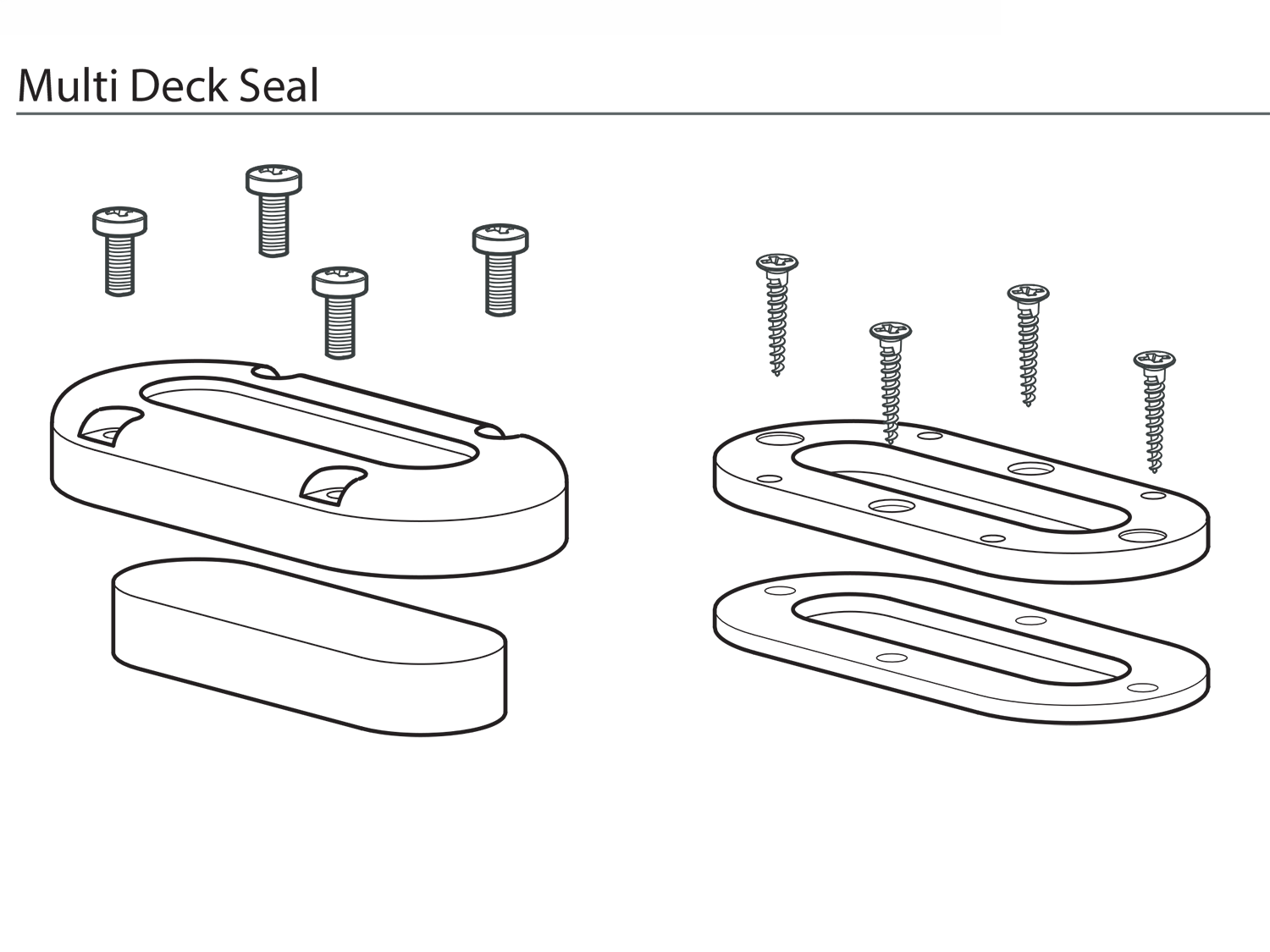

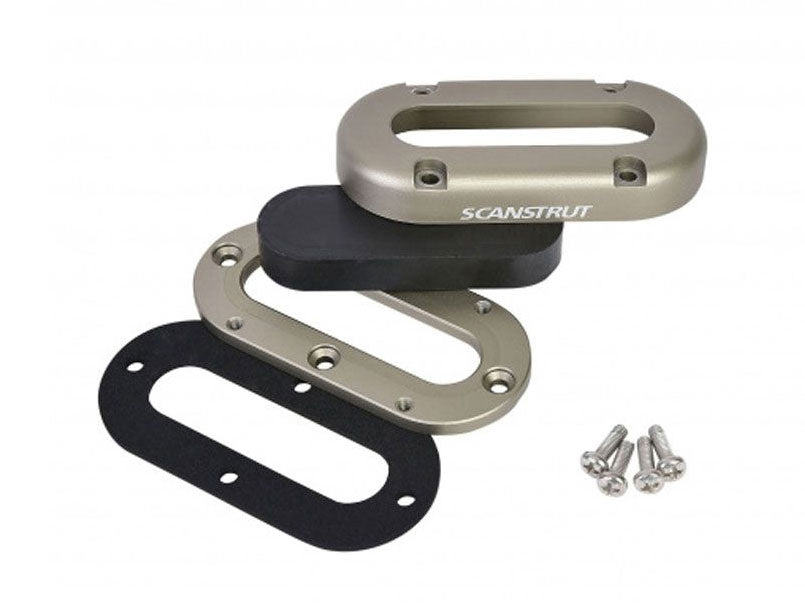

Designed to provide a quick and easy installation for multiple cables. Supplied with an undrilled seal allowing you to custom-drill holes to match your cable requirements.

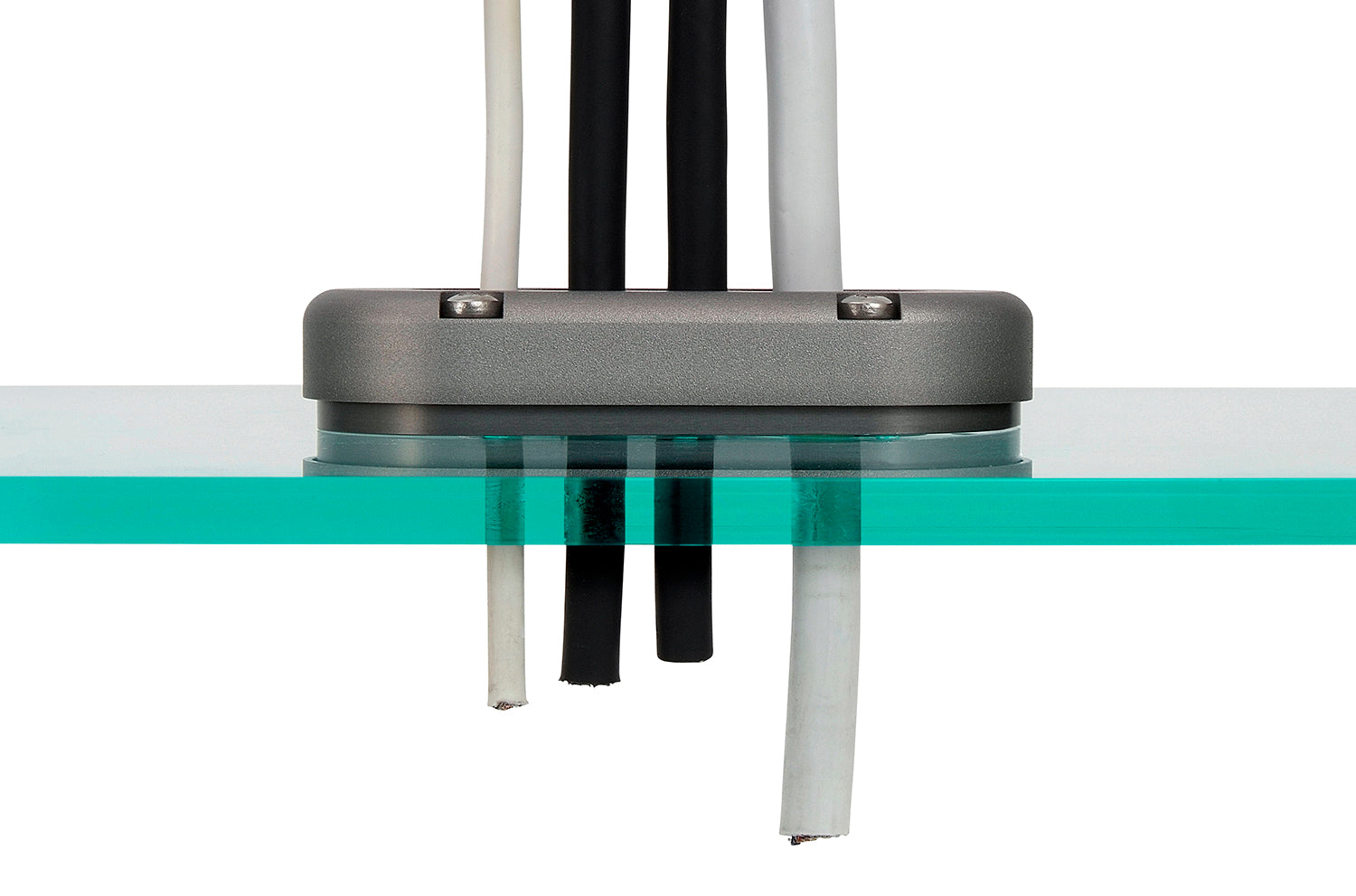

It allows the entry of multiple cables with a diameter of up to 15mm (0.59 in). With an IP68 waterproof rating, it guarantees a completely watertight seal regardless of the weather conditions.
Design

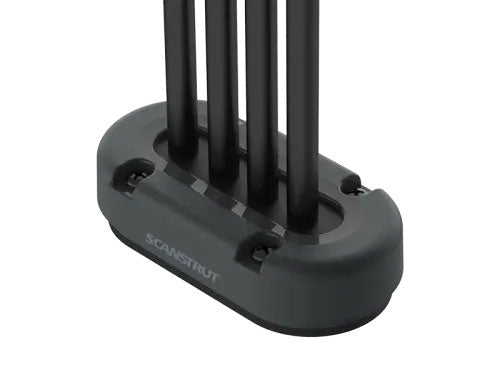

Designed for multiple cables up to Ø15mm (0.59"), it is perfect for solar panels, lights, and other rooftop electronics. Supplied with an undrilled bung, this cable seal is fully customizable, allowing you to work out the best order and placement of your cables. Achieve the best installation, no matter the job!
Water-tight Installation

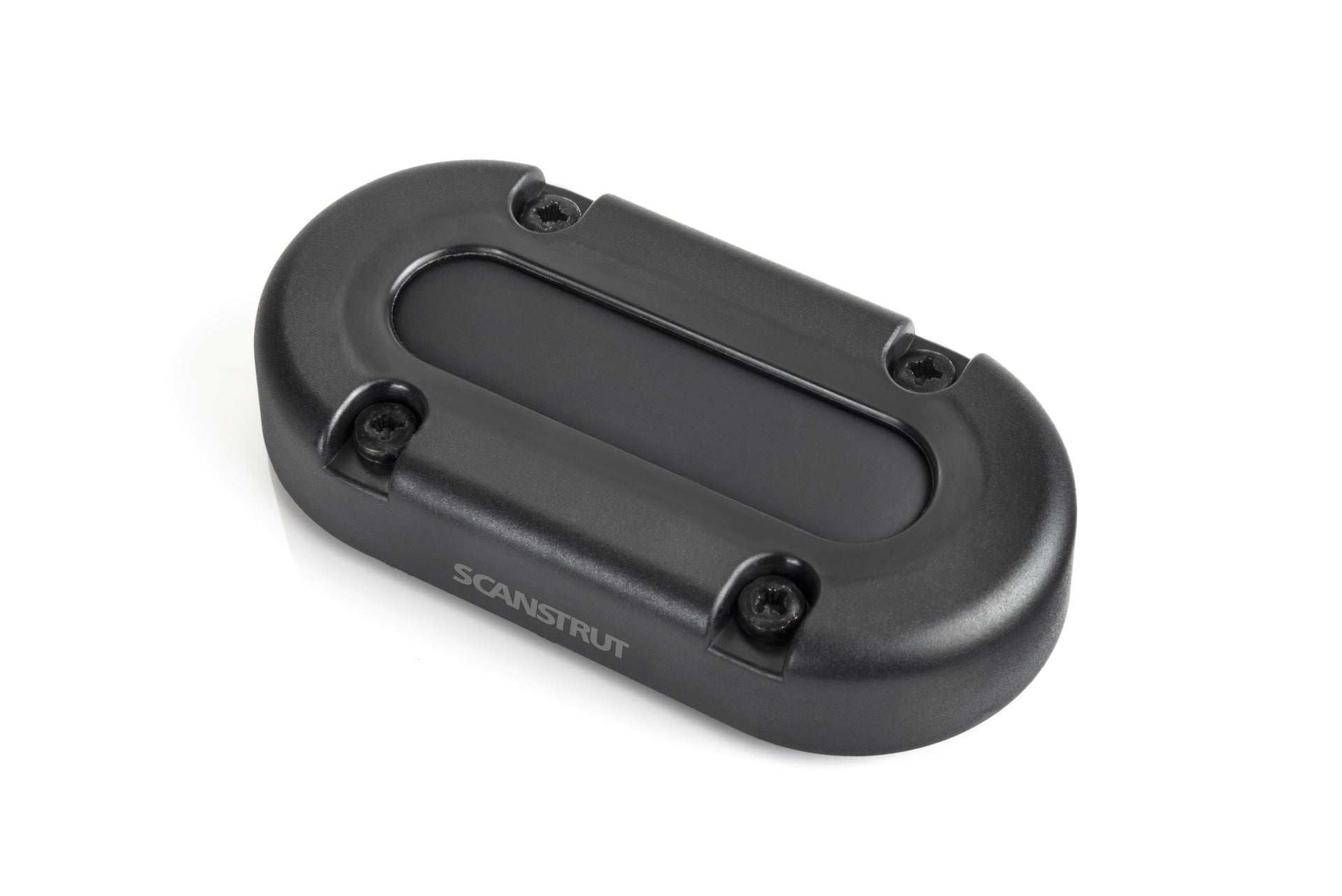

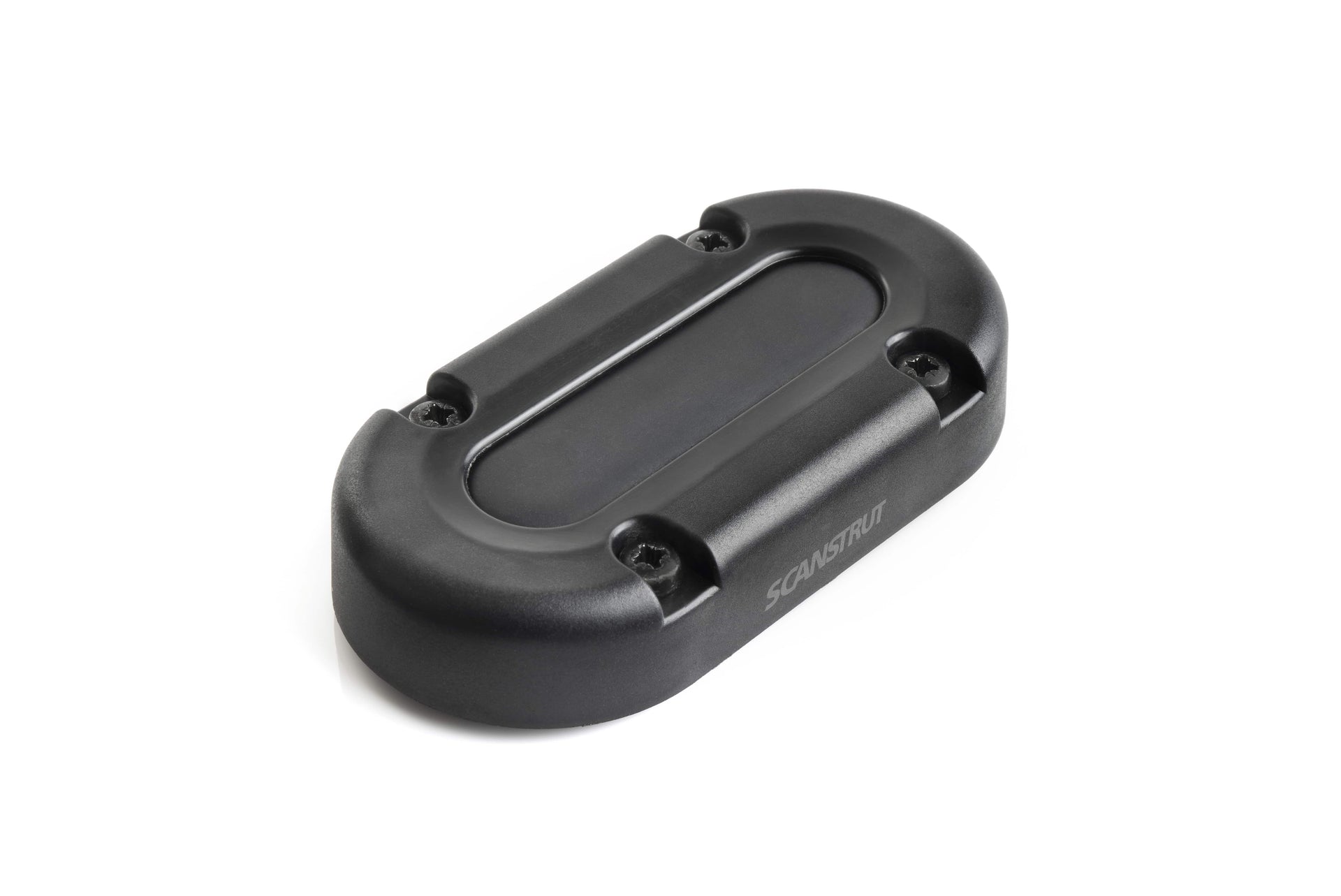

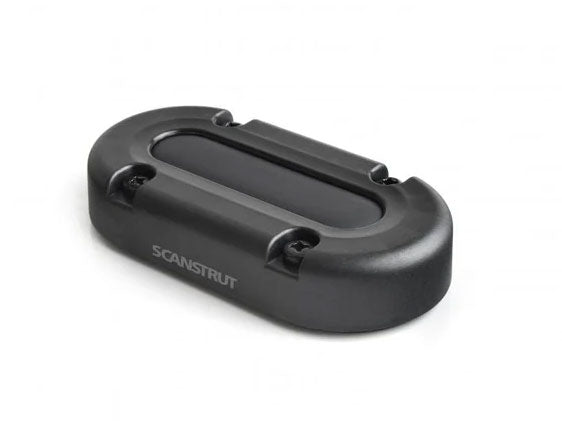

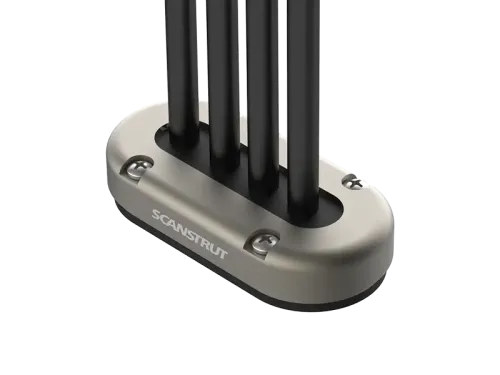

Constructed from high-impact, hard-wearing, and UV-stable material (Black = plastic / Grey = aluminum) providing a 100% watertight seal no matter the weather.
Easy & Reliable Installation
Effortless cable routing that reduces installation time significantly. The innovative design eliminates the need for sealant, ensuring a quick and clean installation while still achieving an IP68 waterproof rating.
Key Features
- IP68 Waterproof
- Designed to fit multiple cables upto 15mm (0.59")
- A guaranteed 100% watertight seal
- Made from Marine grade hard wearing UV resistant plastic (black) or aluminum (grey)

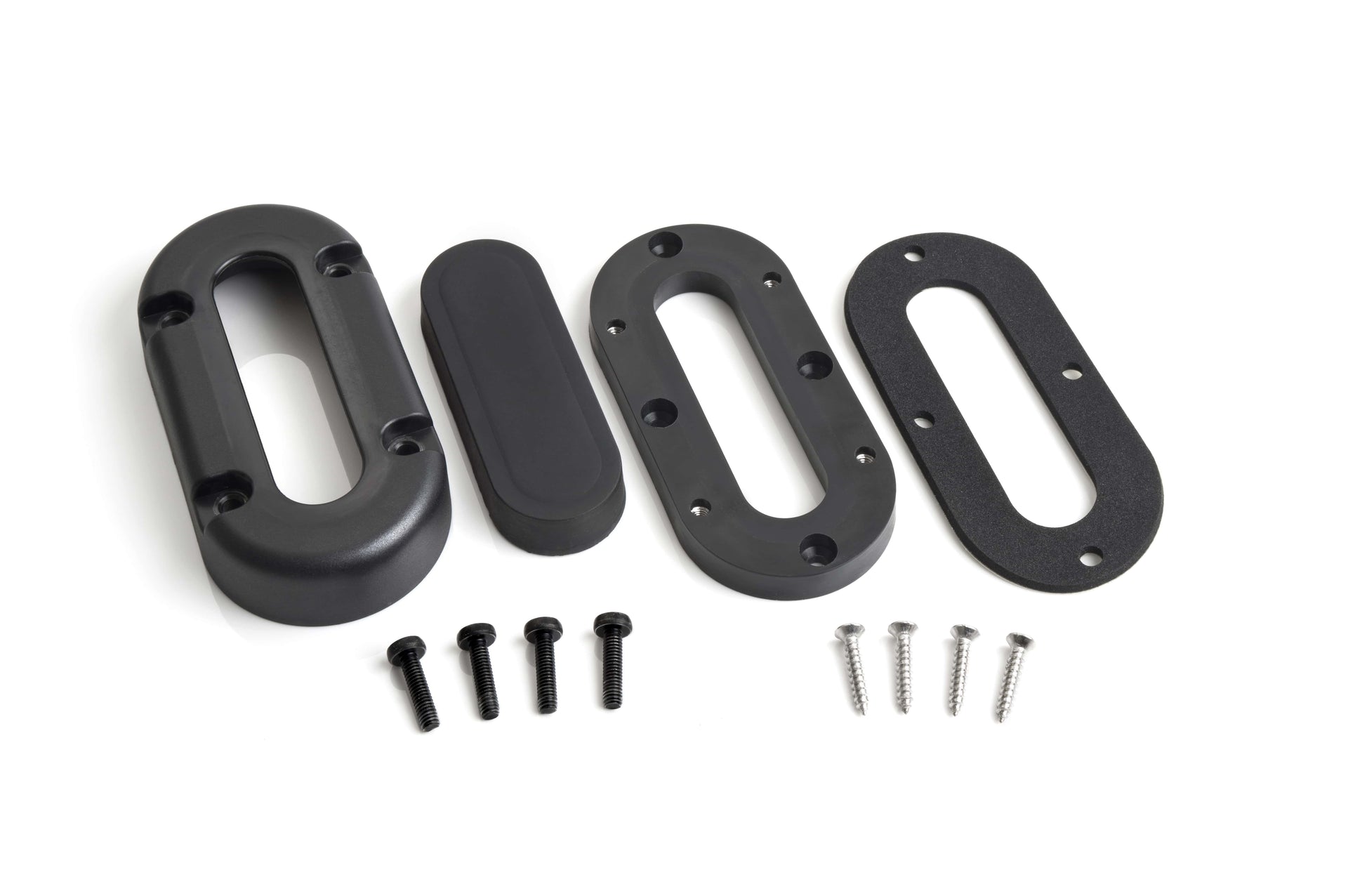

- Fully customizable, as supplied with undrilled bungs
- No messy sealant on the bung
- Easy-fit cable routing that cuts down your installation time

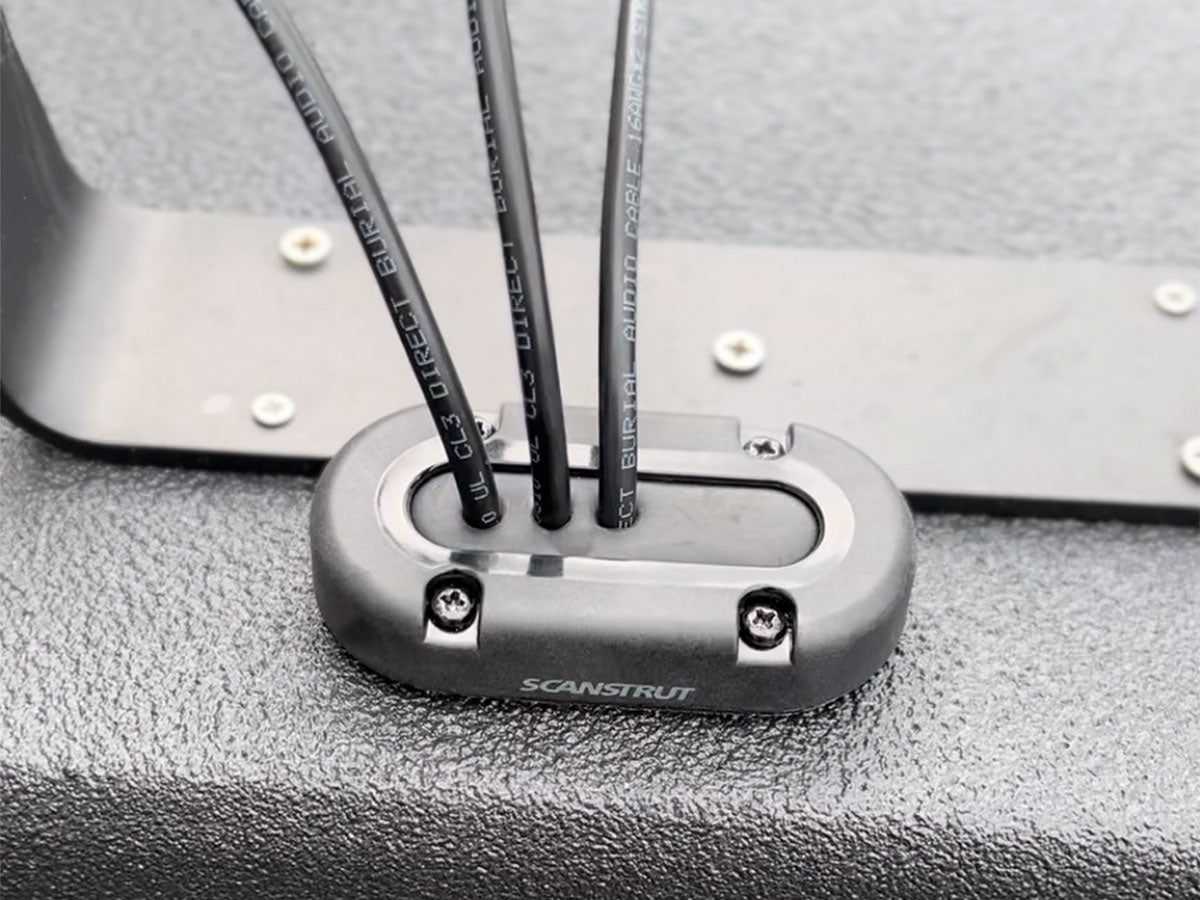

- Ideal for solar panels, light bars, lights, and various other rooftop electronics

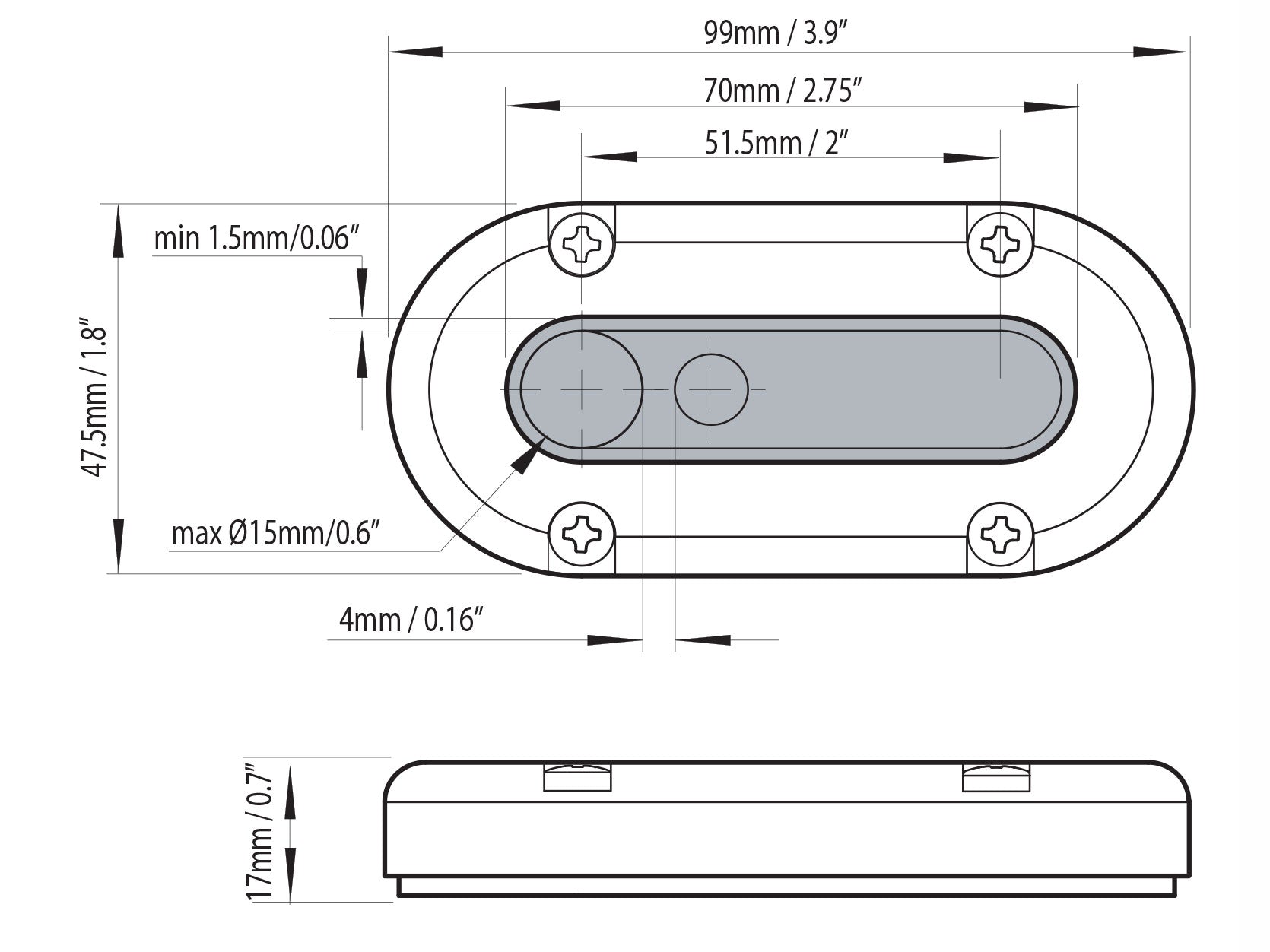

Technical Specification
| Material | High Impact Plastic (Black) or Marine Grade Anodized Aluminium (Grey) |
| Height | 23.0mm (0.91") |
| Length | 105.0mm (4.13") |
| Color | Grey (Aluminum) & Black (Plastic) |
| Max Cable Diameter | 15mm (0.59”) |
| Included Bungs | 1 x Self drill |
Installation Guide
