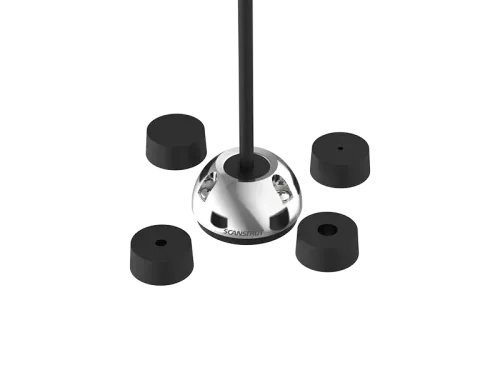

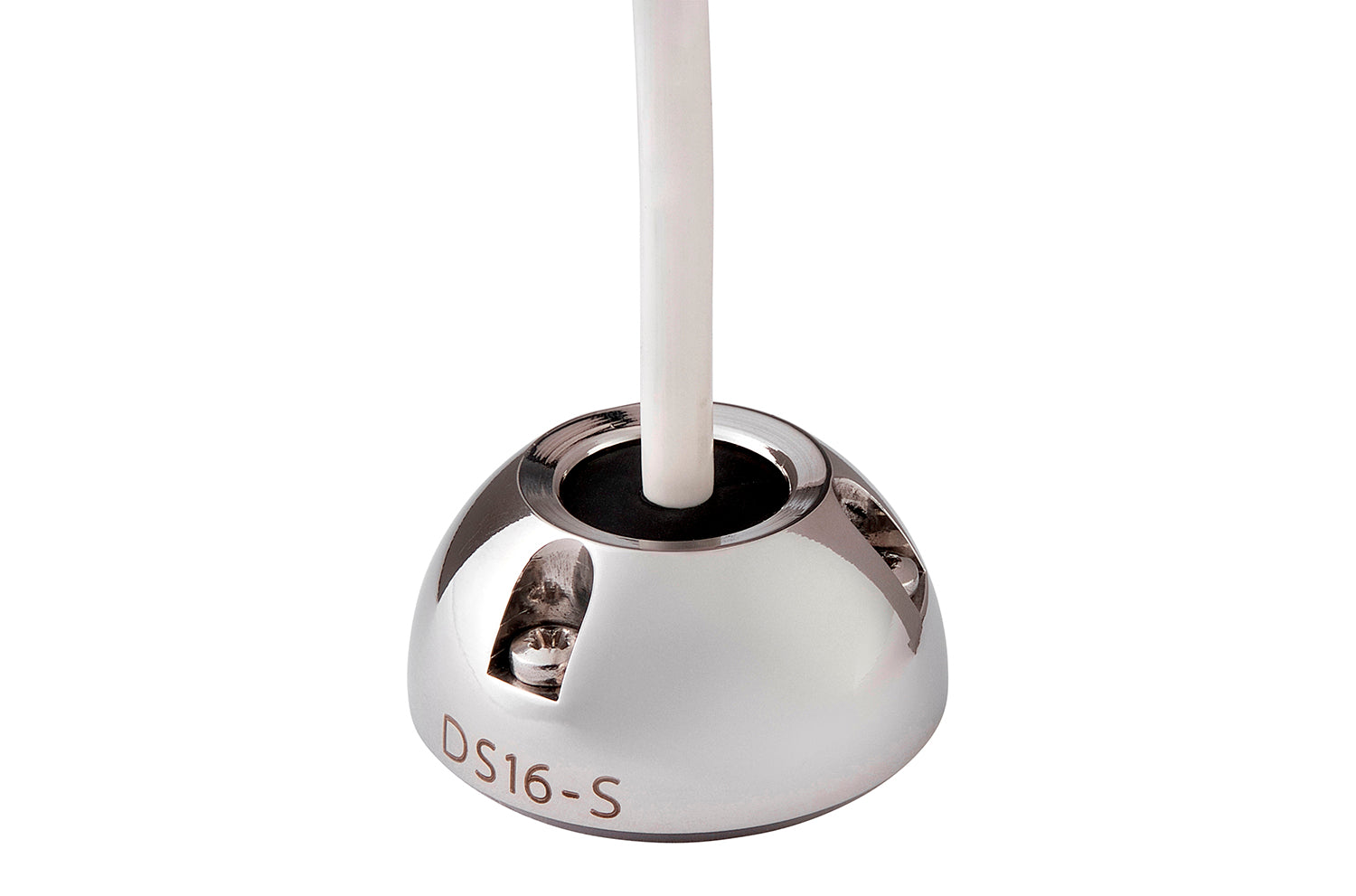

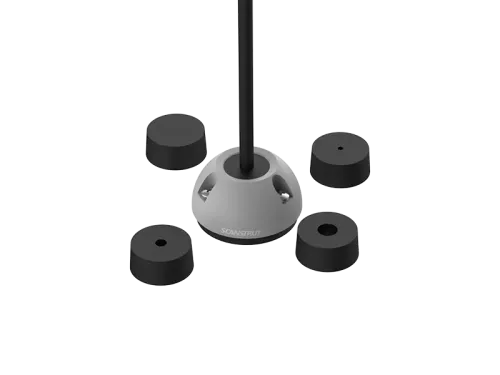

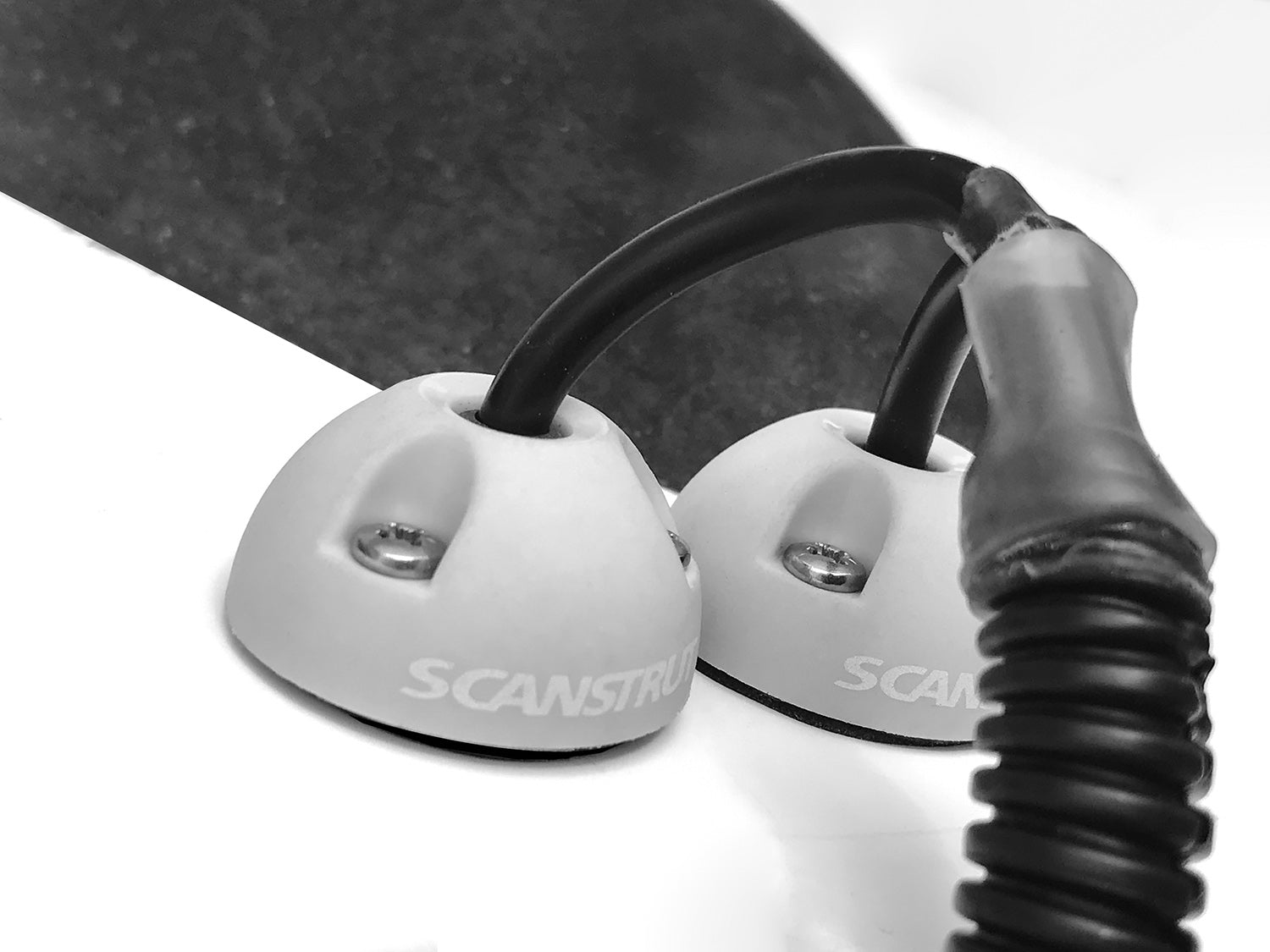

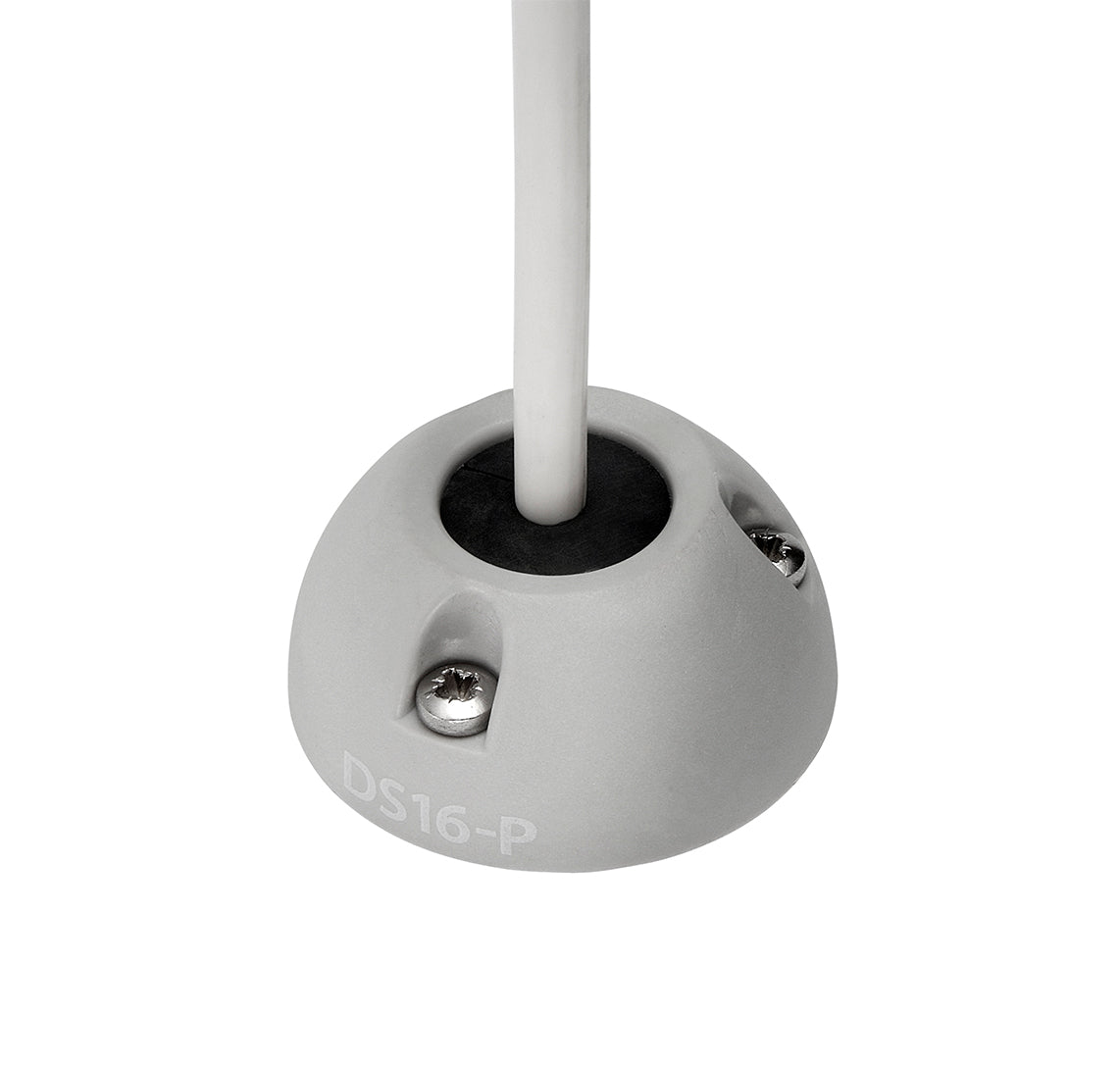

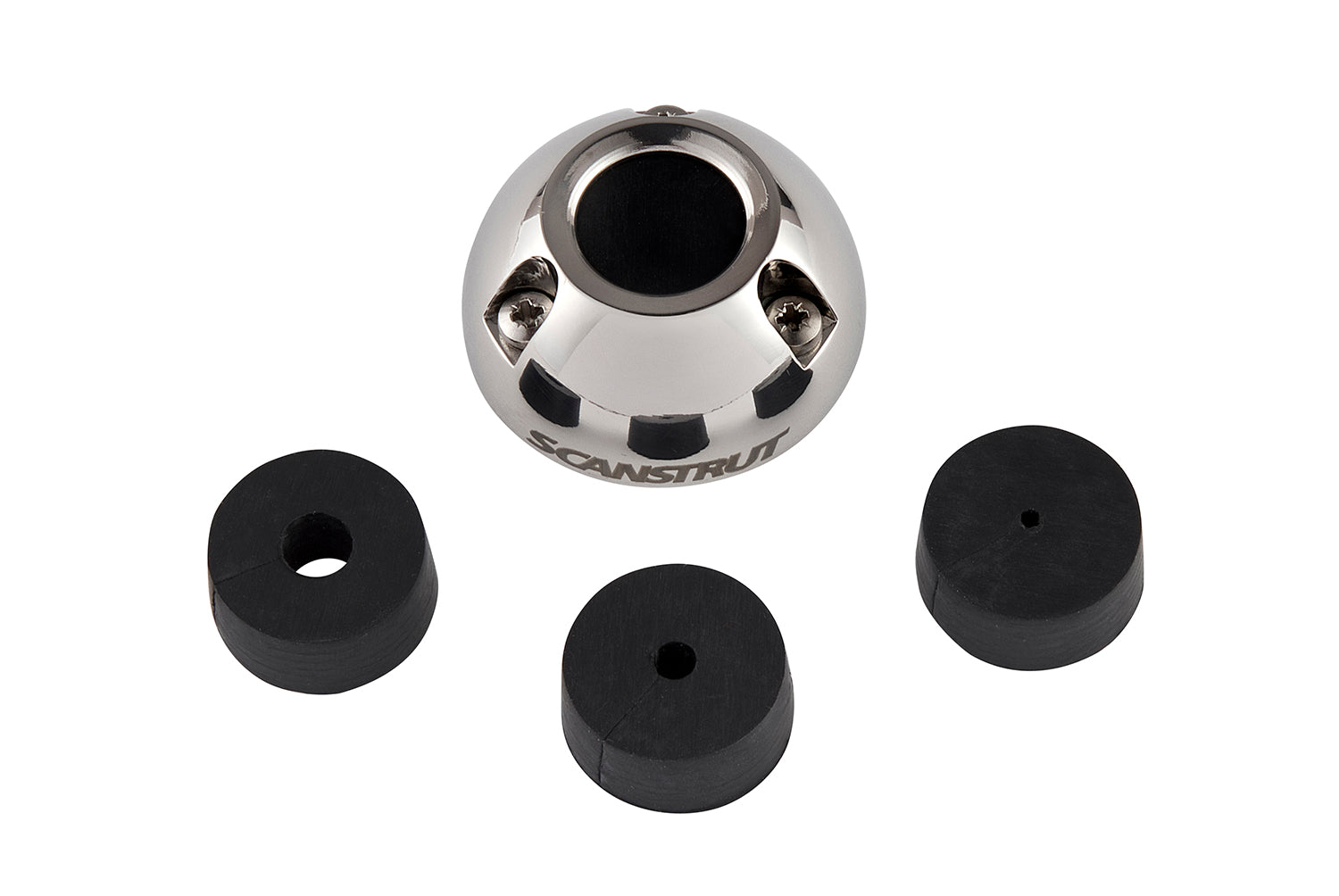

Scanstrut DS16 Vertical Cable Seal | Waterproof Marine Cable Gland
The Scanstrut DS16 Vertical Cable Seal is a compact IP68 waterproof marine cable gland designed to provide a secure, watertight cable entry for 2–8 mm (0.08–0.31") cables and and connectors up to Ø16mm (0.63"). Perfect for solar panels, navigation lights, antennas, and other rooftop electronics, this durable vertical cable seal features a low-profile, impact-resistant dome design for long-lasting protection in harsh marine and outdoor environments. With captive nuts for quick, reliable installation, the DS16 delivers a clean, professional finish for boats, RVs, camper vans, and off-grid applications.
Compatible with many 12-8 AWG wire gauge, depending on their overall jacket diameter.

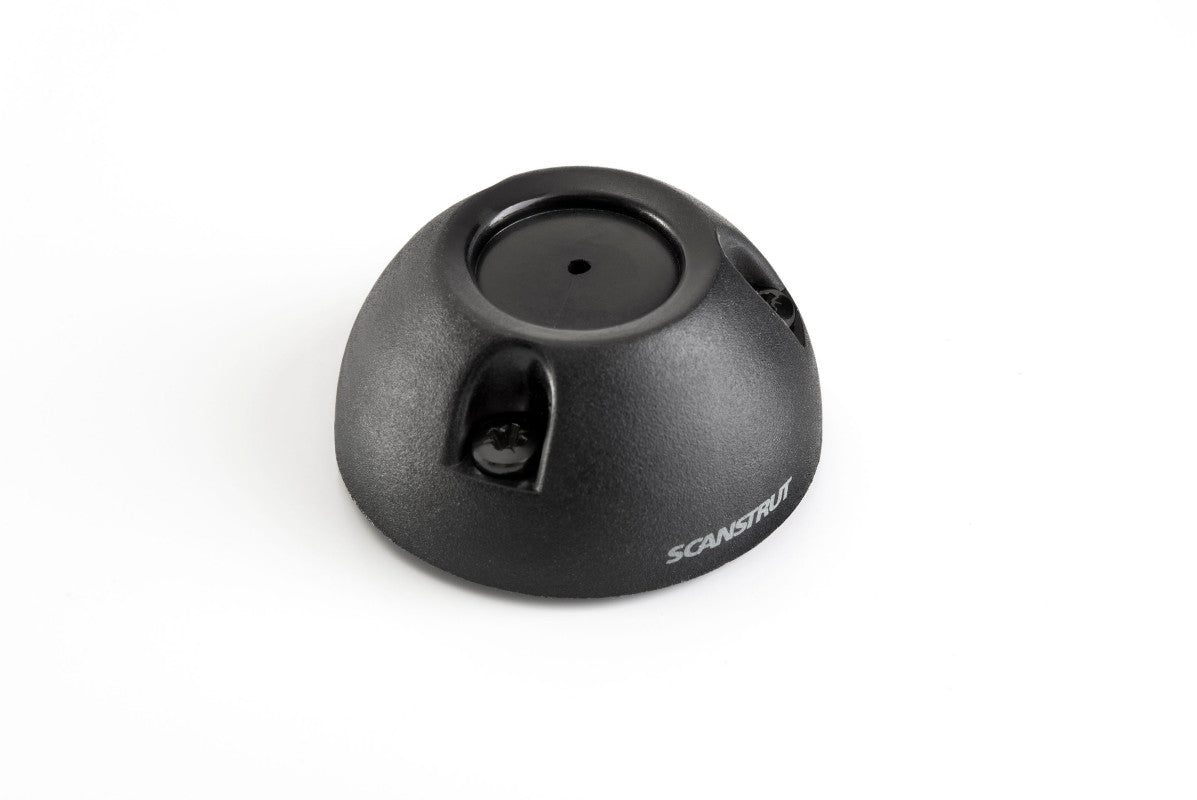

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation

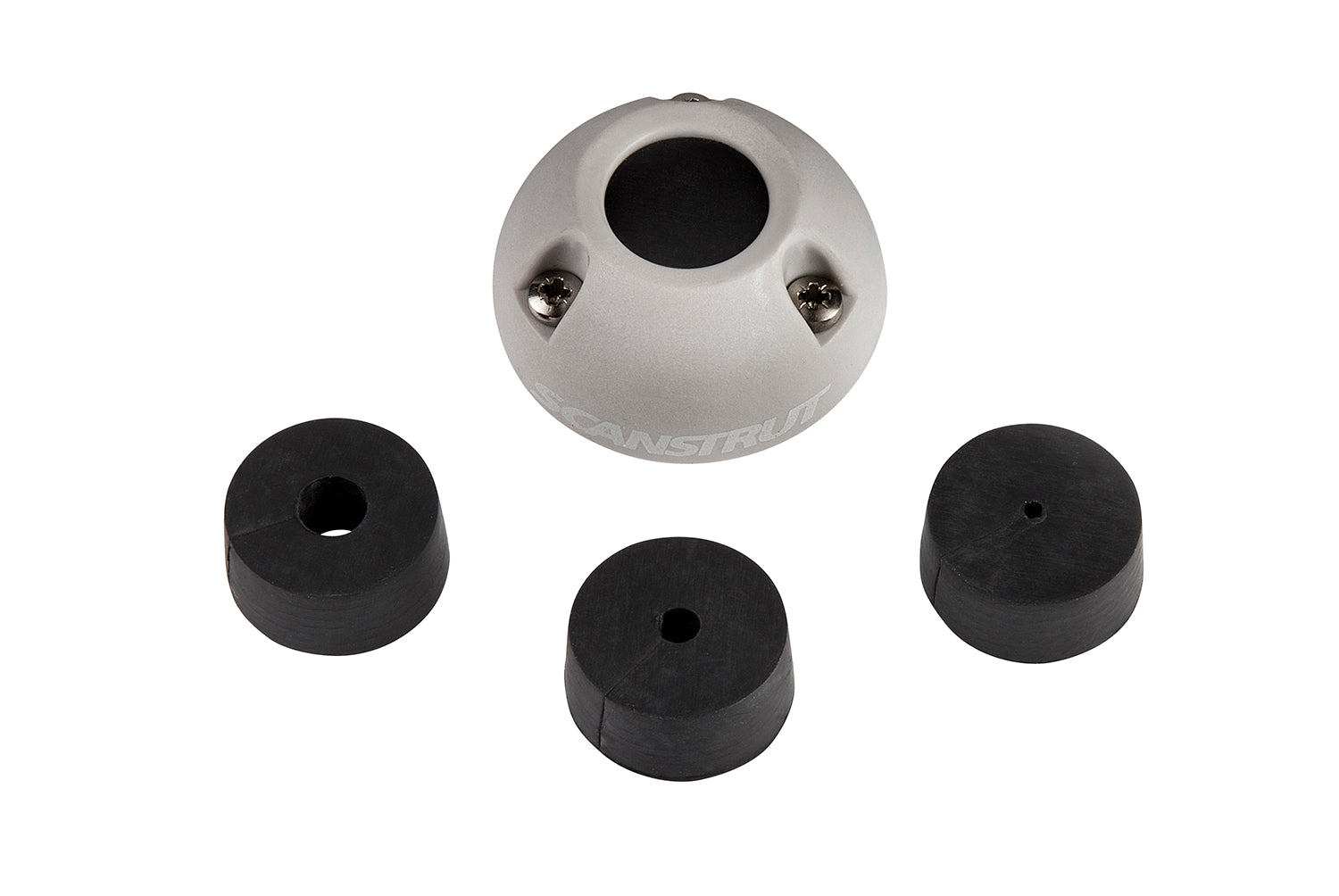

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option enables connectors up to 16mm (0.63") to remain installed during the installation process.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials

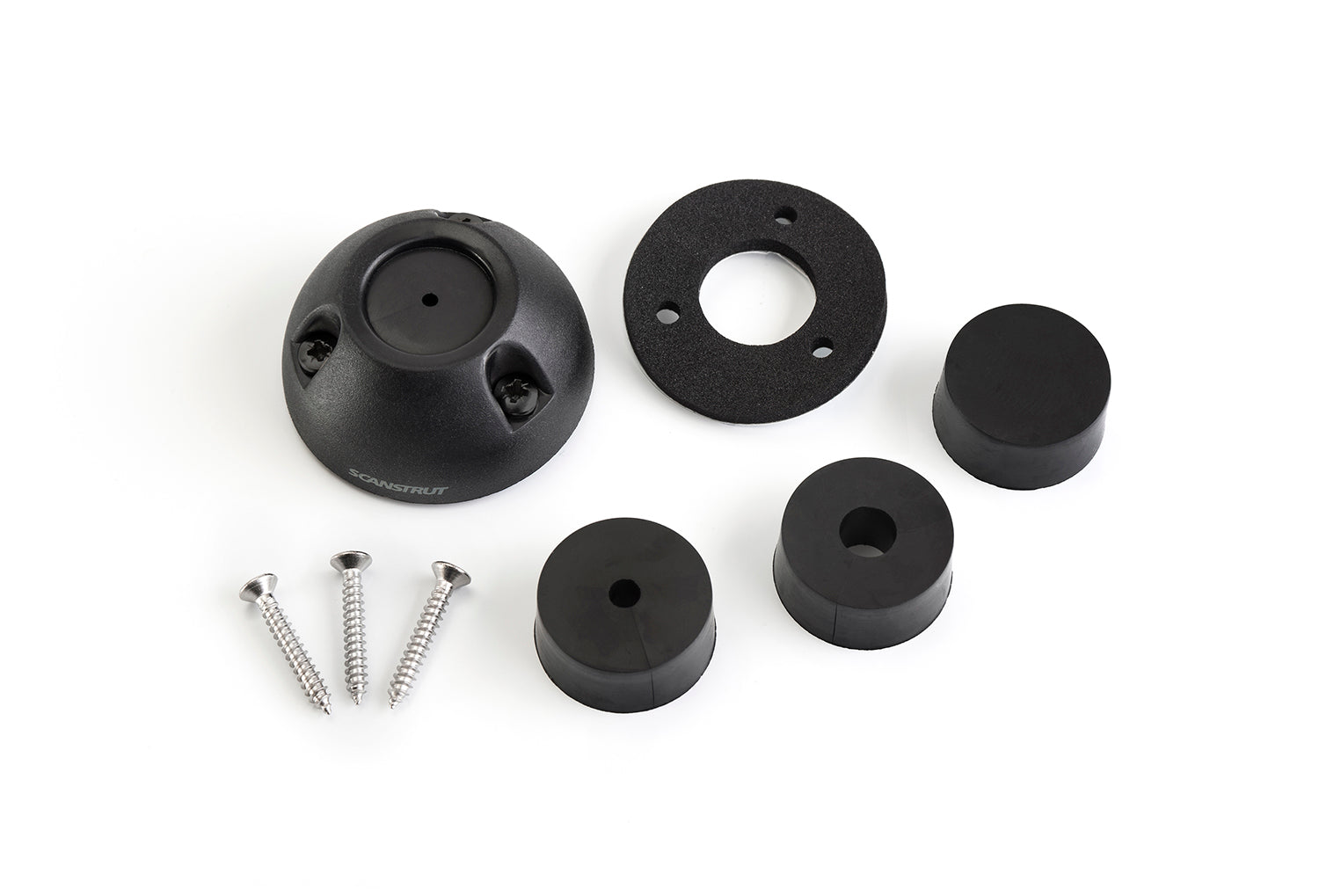

- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to 16mm (0.63") in diameter
- Fully customizable with self-drill bung options
Technical Specification
| Material | High Impact Plastic / Marine-Grade 316 Stainless Steel |
| Height | 19mm (0.75") |
| Color | Plastic (Grey, Black) / Stainless Steel (Silver) |
| Diameter of Cable Seal | 39mm (1.53") |
| Diameter of Cable | 2 - 8mm (0.08 - 0.31") |
| Included Bungs |
1 x 3mm (0.12") 1 x 4mm (0.16") 1 x 7mm (0.28") 1 x Self drill |
