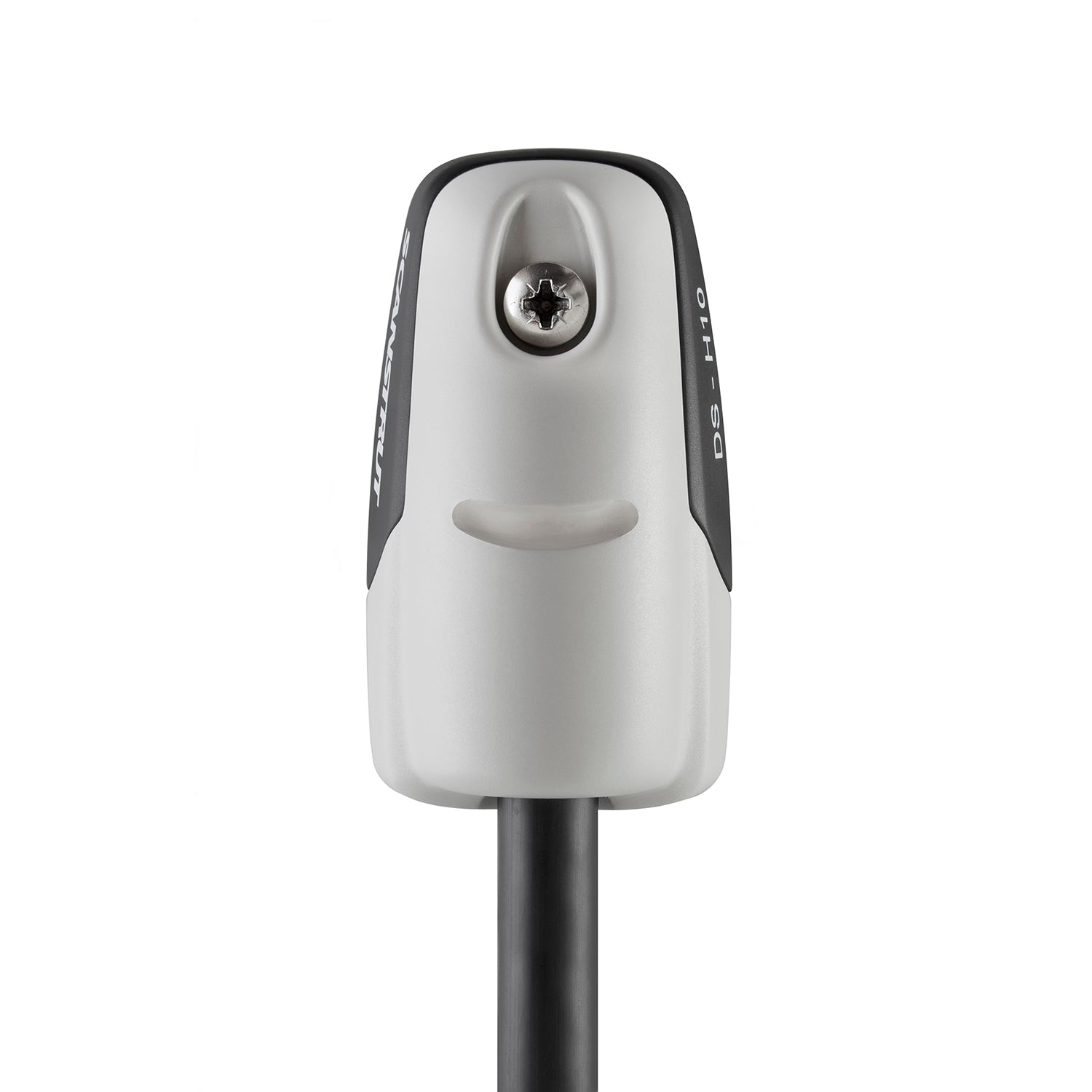

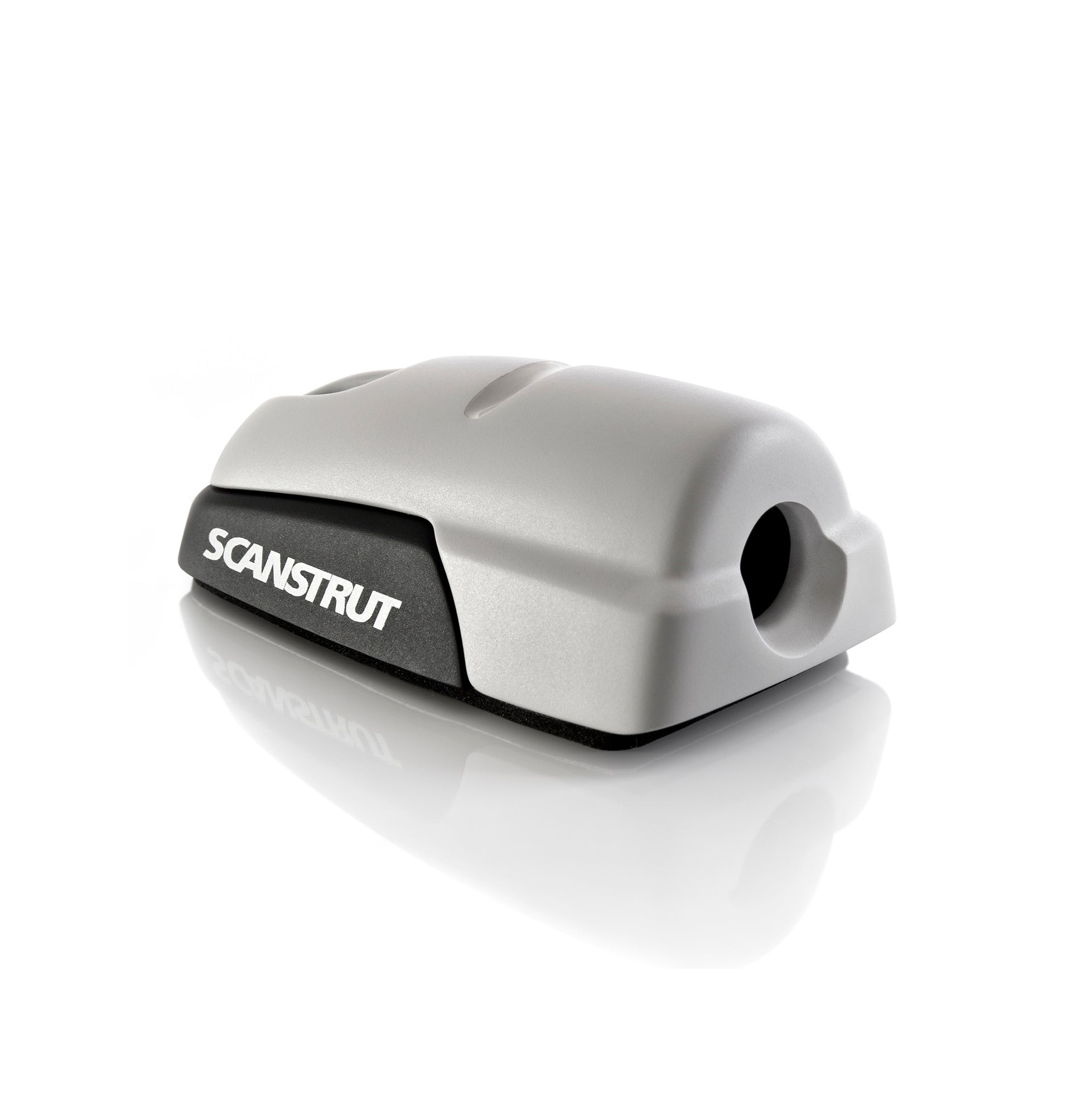

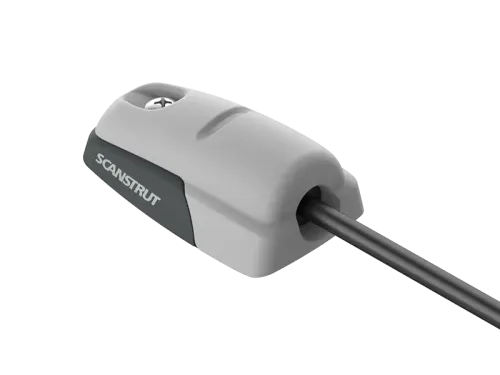

Scanstrut DS-H10 Horizontal Cable Seal | Waterproof Marine Cable Gland for 6-10mm Cables
This is a premium waterproof marine cable gland designed for routing cables from 6–10 mm (0.24” to 0.39”). It is perfect for applications like solar panels, light bars, lights, and other rooftop electronics.
Compatible with many 10-8 AWG wire gauge, depending on their overall jacket diameter.
Design:
Designed for a range of cable diameters the DS-H10 is ideal for almost every installation, with different bung sizes and self drill options. The low-profile construction is impact-resistant and provides extra protection from water.
Marine Grade Materials:

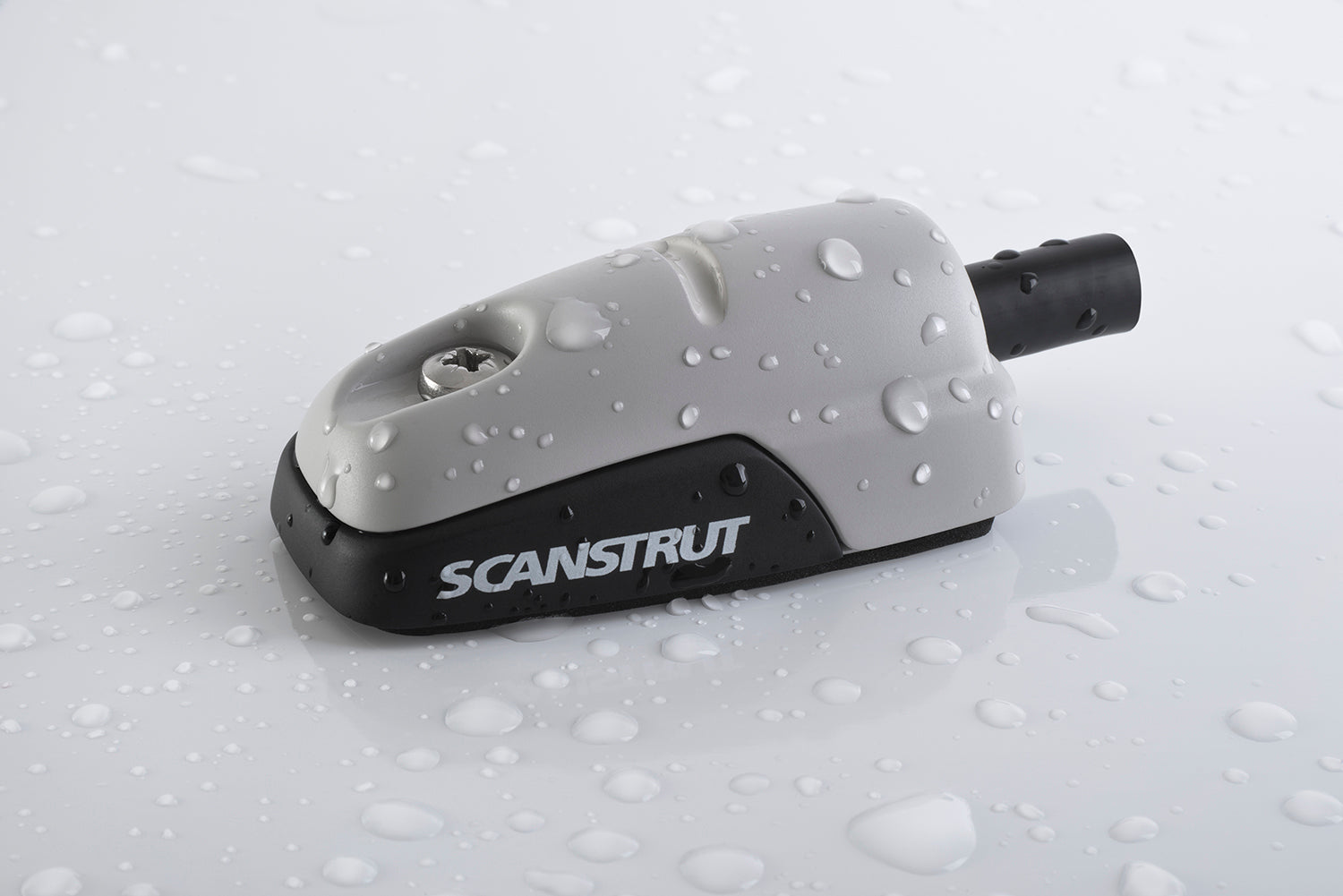

Our materials have been selected due to their UV-stable and hard-wearing properties. Rated to IP68 to ensure a guaranteed 100% watertight seal and long-lasting performance.
Easy Installation:
Designed with repeated and reliable installation in mind, the captive nuts ensure a quick and easy process. To further cut down on installation time, this premium IP68 waterproof range provides easy-fit cable routing, to speed up each cable seal fitting.
Why Choose the Scanstrut Cable Seal (Cable Gland)?
- IP68 rated seal, for a guaranteed 100% watertight seal

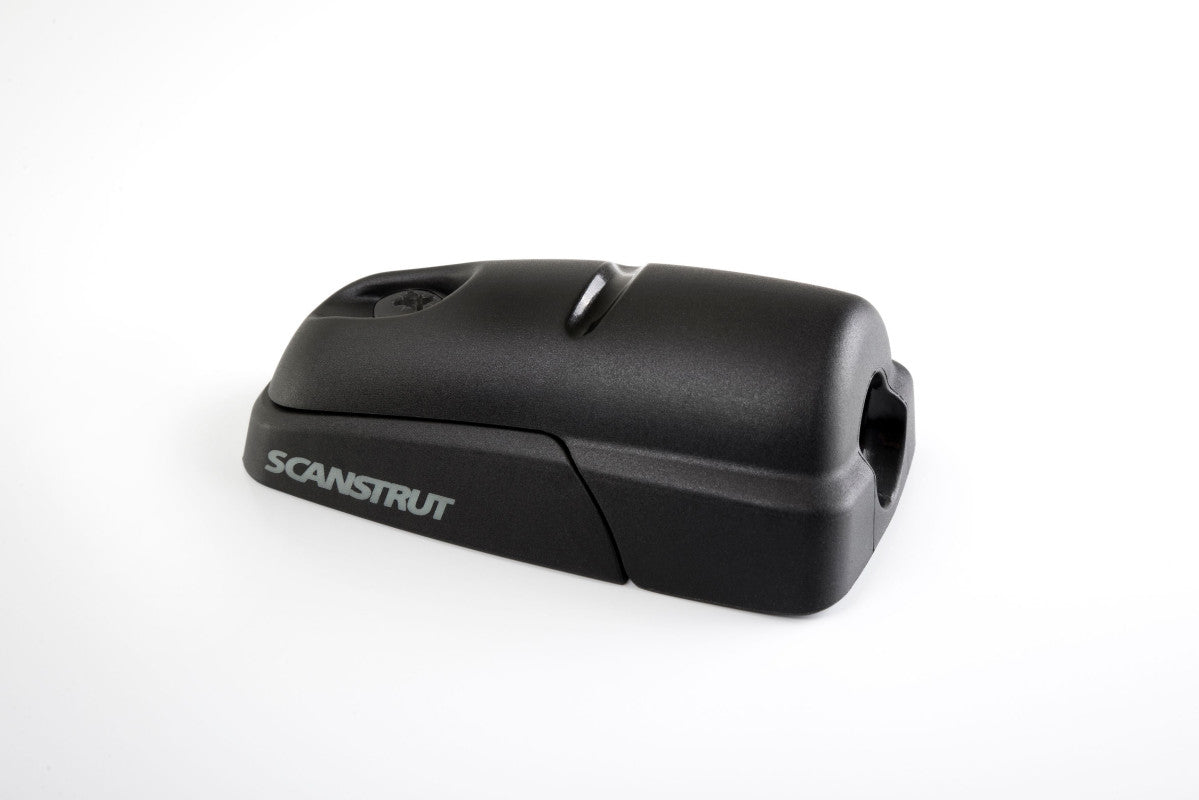

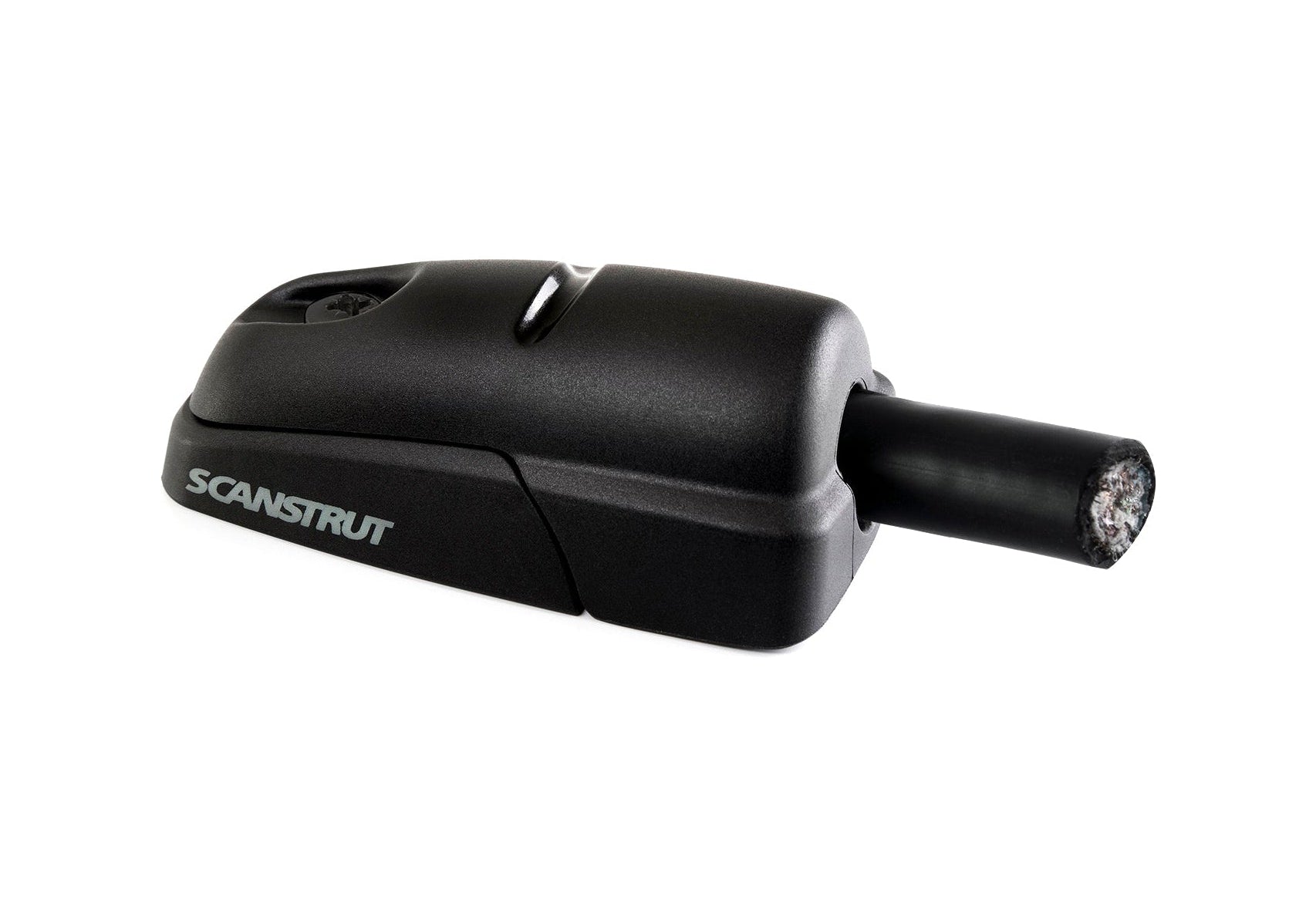

- Available in grey or black high-impact plastic
- No messy sealant on bungs
- Premium UV-stable and hard-wearing materials
- Captive nuts ensure an easy and reliable repeat installation

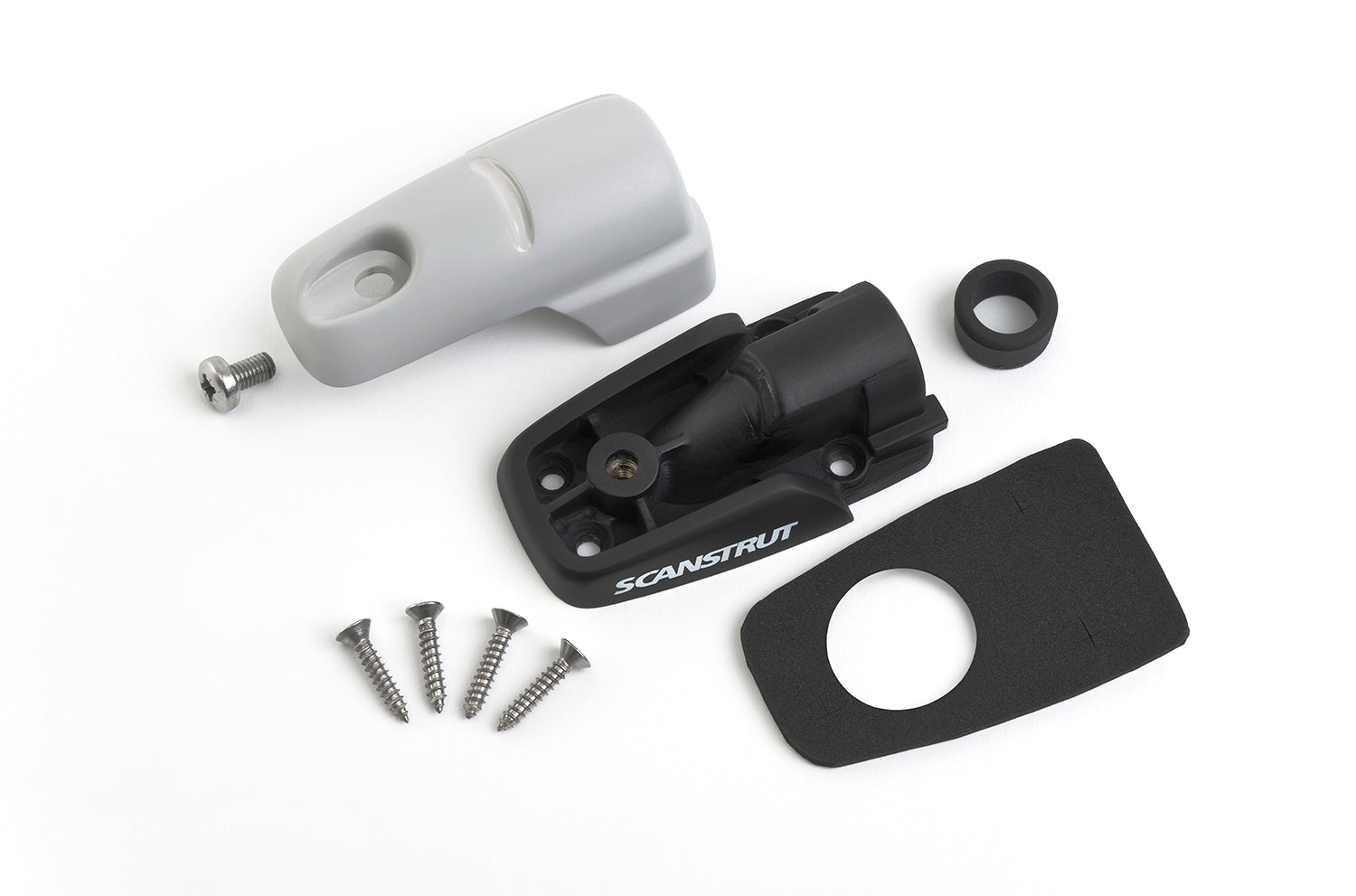

- Supplied with both pre-drilled and blank inner bungs
- Fully customizable with the self-drill bung options

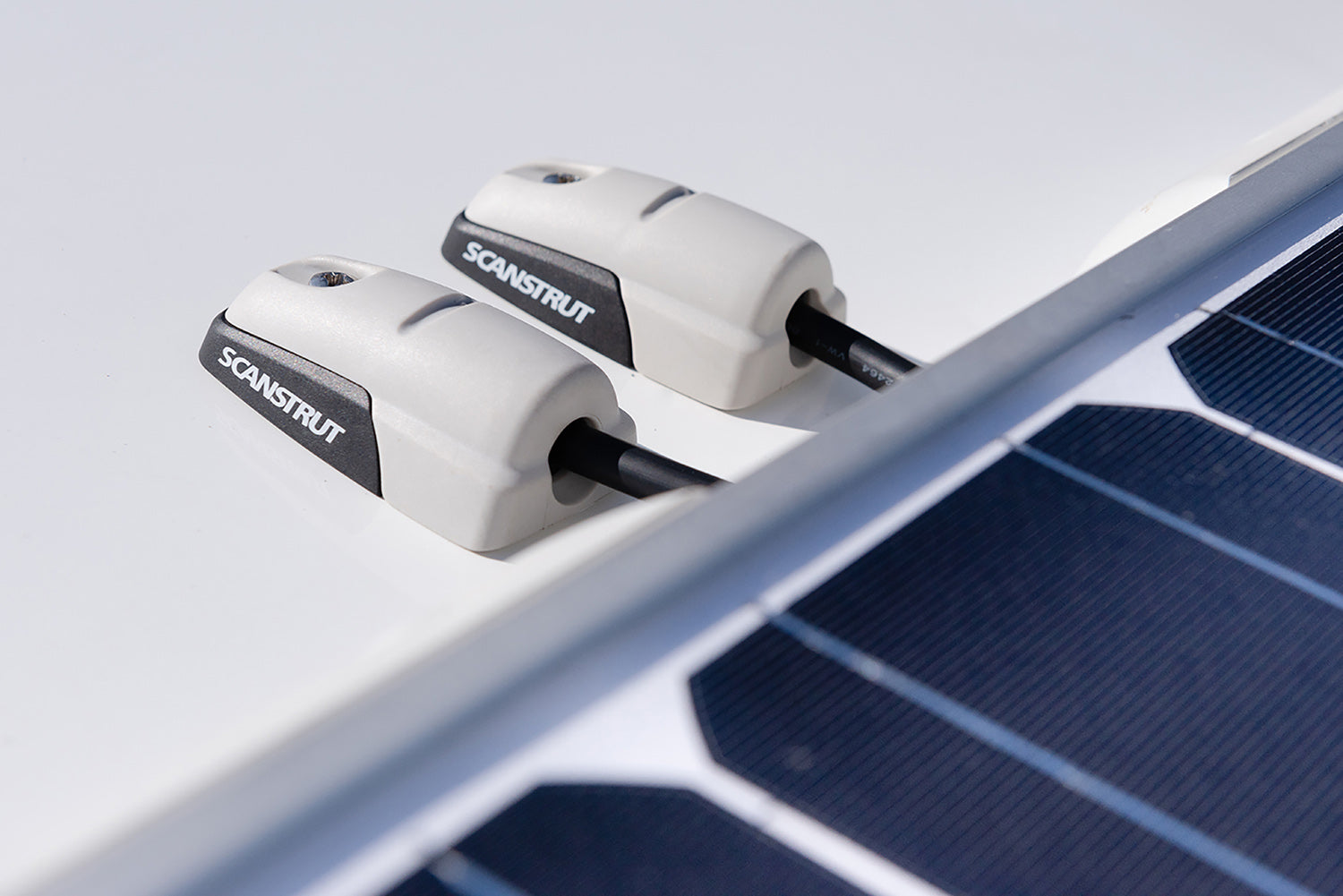

- Ideal for solar panels, light bars, lighting fixtures, and other rooftop electronic equipment

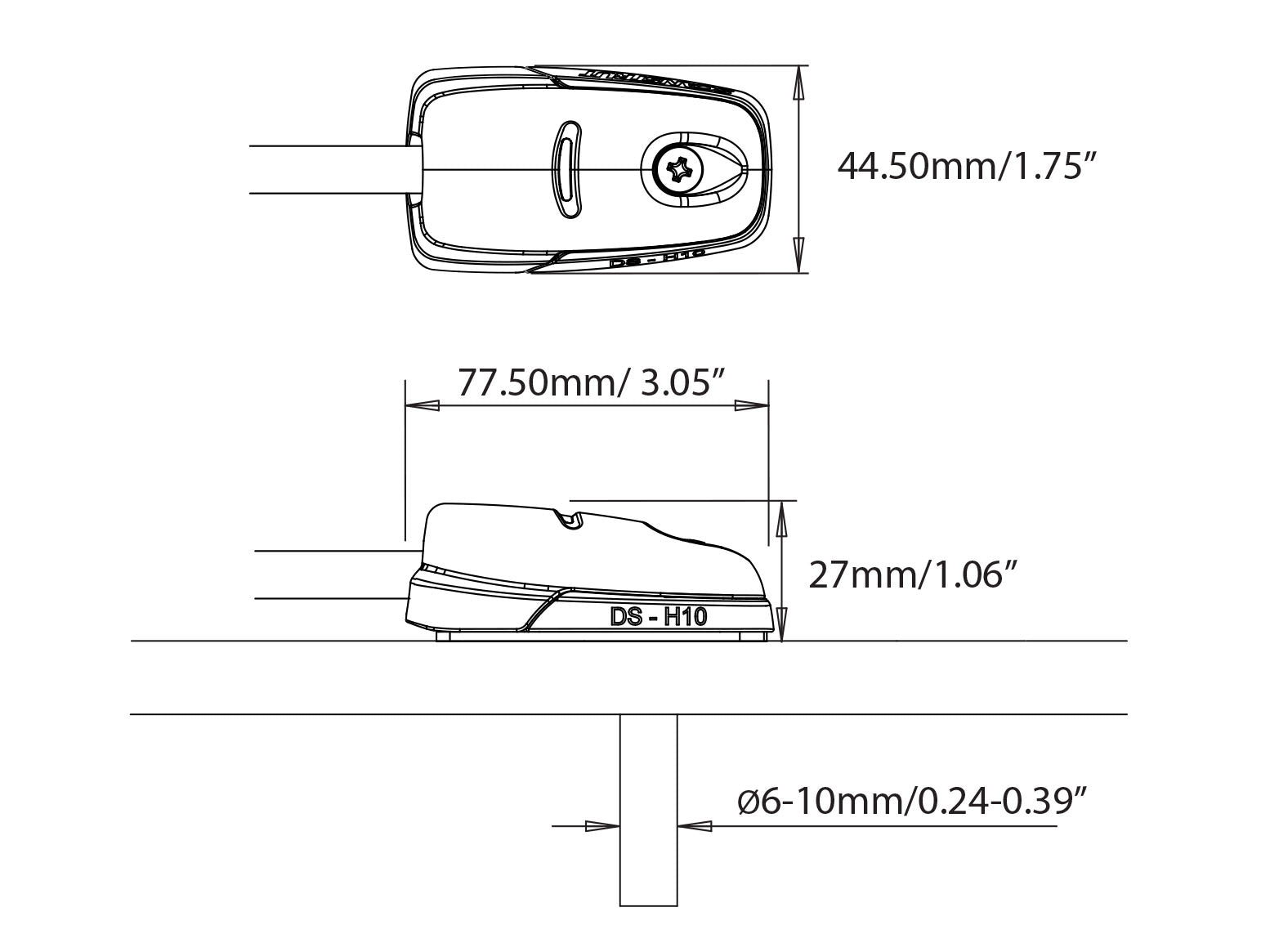

Technical Specification
| Material | High Impact Plastic |
| Height | 27 mm (1.06") |
| Length | 77.5 mm (3.05") |
| Color | Grey & Black |
| Cable Diameter | 6–10 mm (0.24–0.39") |

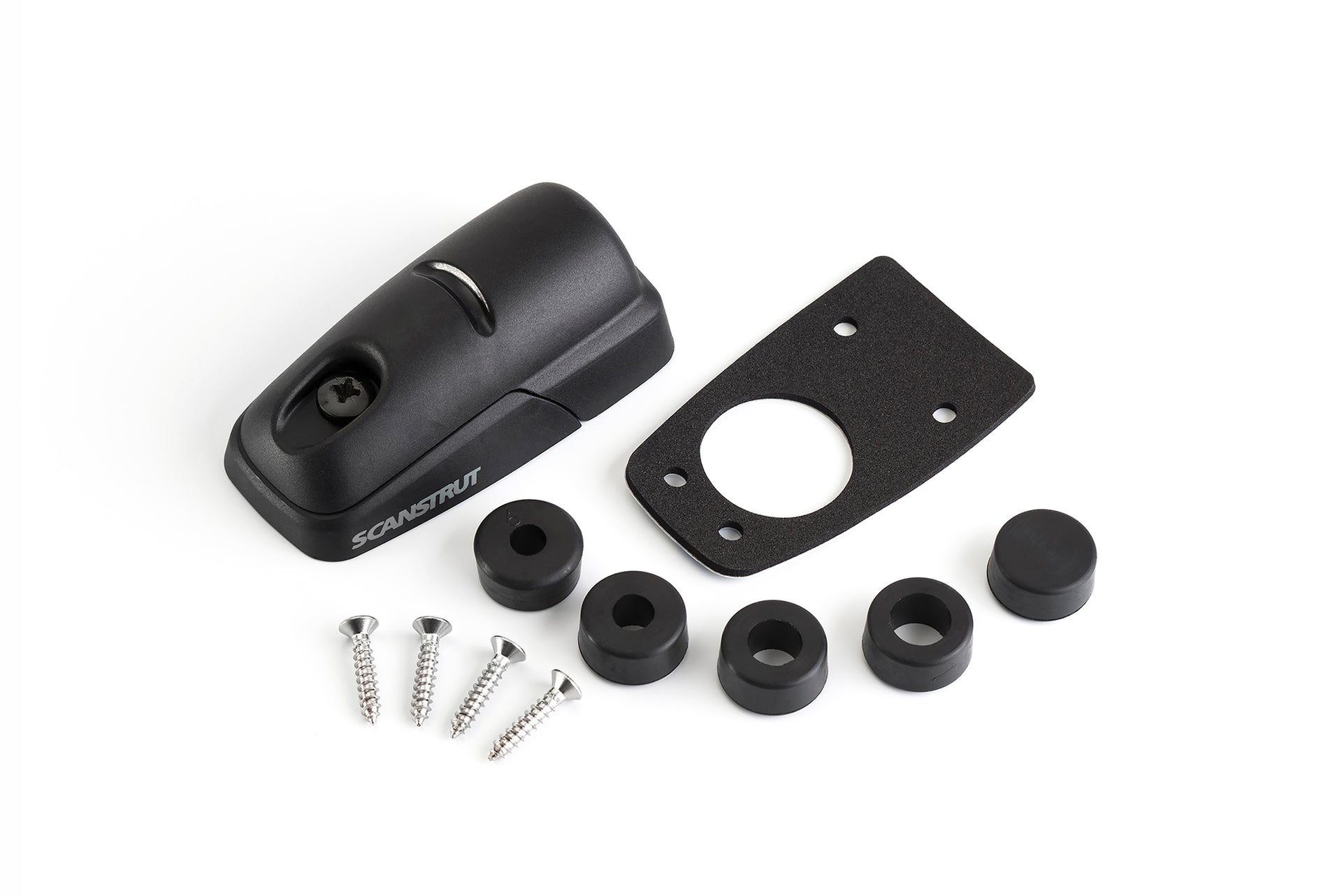

| Included Bungs | 1 × 6 mm (0.23") 1 × 7 mm (0.27") 1 × 8 mm (0.31") 1 × 9 mm (0.35") 1 × 10 mm (0.39") 1 × Self-Drill (Blank) |

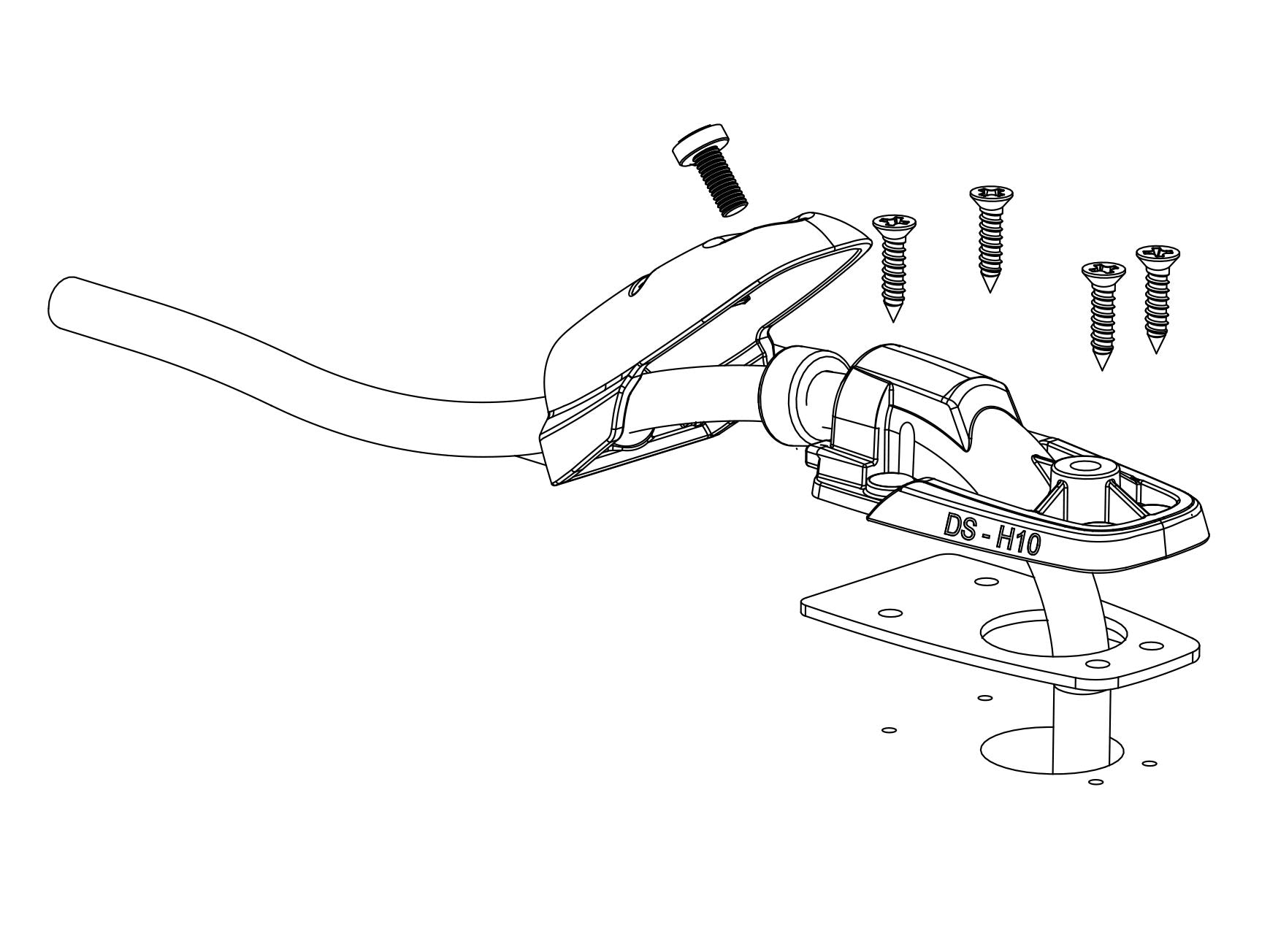

Installation Guide
