ALLinONE 2.0 Connect – Integrated Solar Panel & Charge Controller
Not Sure How Many Solar Panels You Need?
Try our Power Consumption Worksheet.
Make a copy of the worksheet and update with your information.
Wiring Diagrams
Table: Solar Panel Wattage Range vs. Appropriate Controllers
See All Solar Panel Specifications
Federal Solar Tax Credits Extended
Federal Solar Tax Credits Extended
Good News for Solar Enthusiasts: Now Extended Through 2034!
The Inflation Reduction Act of 2022 has extended the Federal Solar Tax Credit (ITC), giving homeowners and boat owners even more incentive to go solar. This tax credit applies to your primary or secondary residence—including certain boats with living accommodations (head, galley, and bunk) registered in the U.S.
What You Need to Know
Tax Credit Rate:
- 2022–2032: 30% of total system costs
- 2033: 26% of total system costs
- 2034: 22% of total system costs
- After Jan. 1, 2035: 0%
Eligibility:
You can claim this credit if you’ve made energy-saving improvements to your home (or qualifying boat) in the U.S. during the tax year. Qualified residences include:
- Houses
- Mobile homes
- Condominiums
- Cooperative apartments
- Houseboats (with proper accommodations)
What’s Covered:
The credit applies to the cost of:
- Solar panels
- Batteries
- Inverters
- Charge controllers
- Wiring and labor costs
Retroactive Eligibility:
Systems placed in service after January 1, 2006, can qualify if the credit hasn’t already been claimed.
Unused Credits:
If your tax liability is lower than the credit, you can roll over unused amounts to future tax years.
How to Claim the Credit
- Complete IRS Form 5695:
Download the form here. Make sure to use the latest version updated in January/February of the applicable tax year.
Instructions for Form 5695. - File with IRS Form 1040:
The total from Form 5695 is entered as a line item on Form 1040. Attach both forms when filing your return.
Download IRS Form 1040.
Additional State Incentives
Many states offer additional tax incentives or rebates for solar energy systems. Check out the Database of State Incentives for Renewables & Efficiency (DSIRE) for a detailed breakdown of state-specific programs.
State Highlights
- Arizona: 25% tax credit, up to $1,000.
- Hawaii: 35% tax credit, up to $5,000.
- New York: 25% tax credit, up to $5,000.
- Oregon: Up to $6,000 in credits over four years.
- South Carolina: 25% tax credit for installation costs.
Note: State programs are subject to change. Always verify details with your state’s tax department.
Don’t Wait—Take Advantage of Solar Savings!
With the credit extended through 2034 and now covering batteries, it’s the perfect time to upgrade or install a solar system. Be sure to consult your tax advisor to maximize your savings and ensure compliance with the latest regulations.

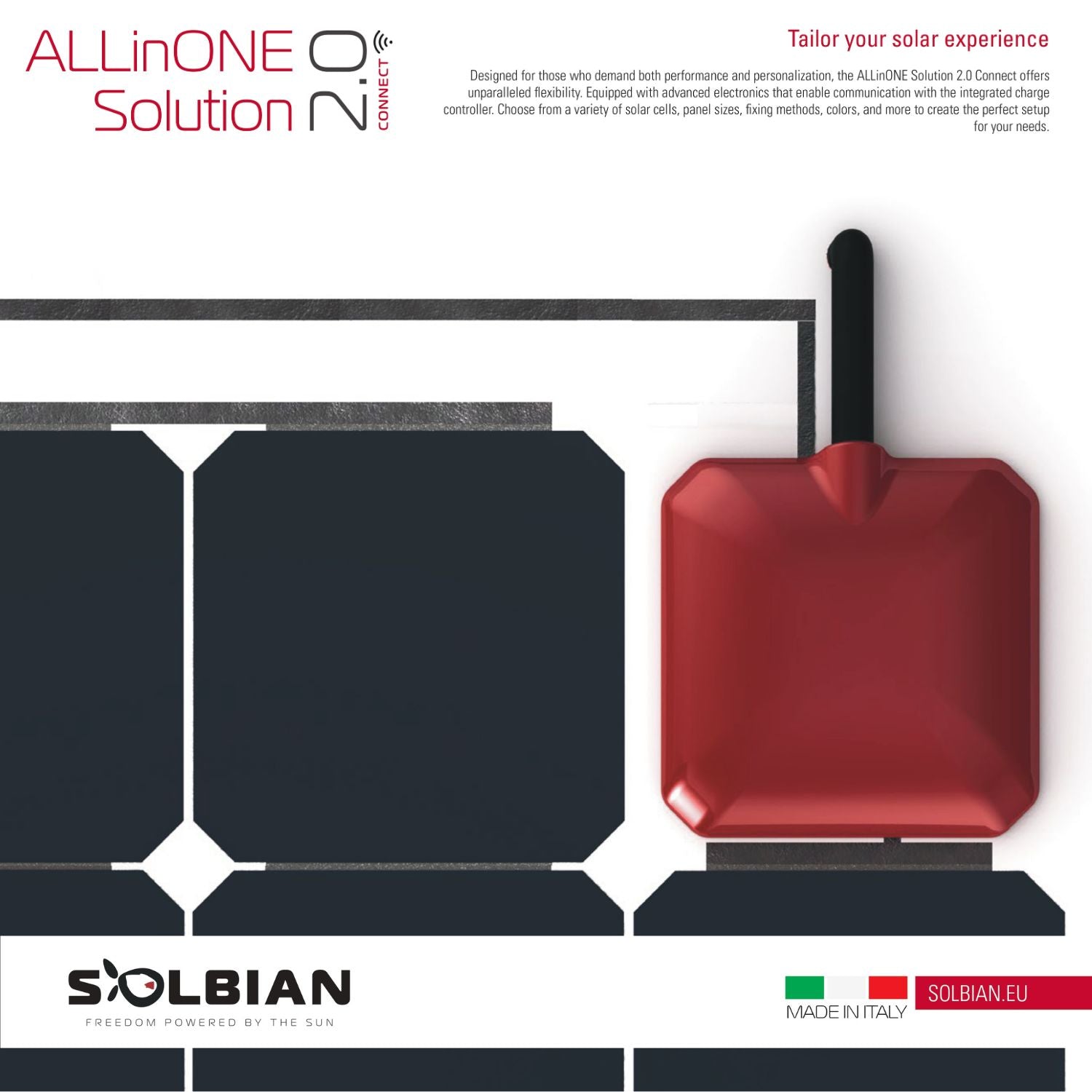

ALLinONE 2.0 Connect – Integrated Solar Panel & Charge Controller

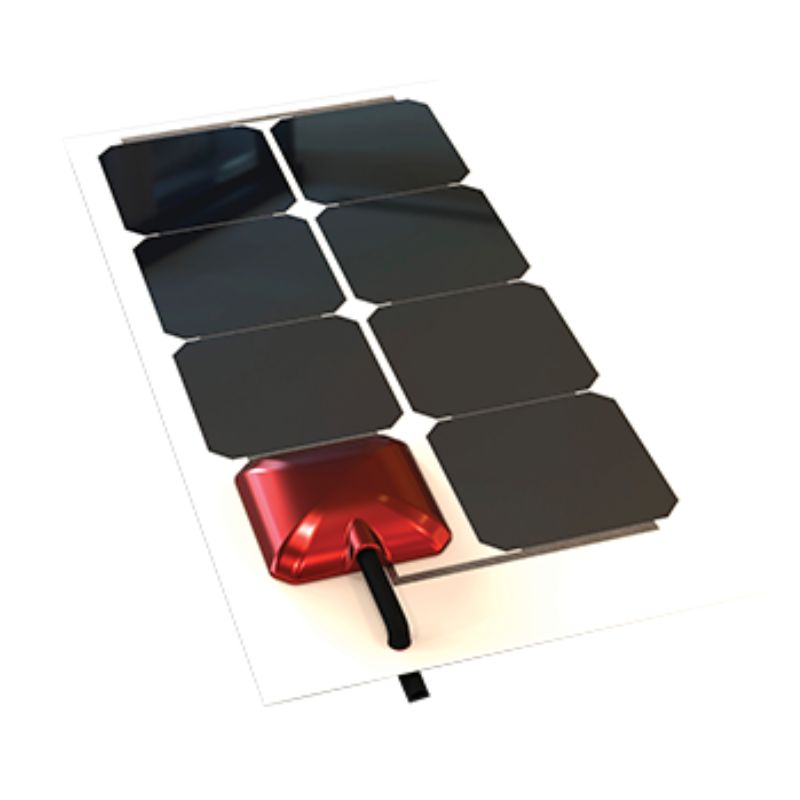

The ALLinONE 2.0 Connect is a premium marine solar solution designed for those who demand both performance and personalization. This innovative panel integrates a high-efficiency solar module with an MPPT Boost/Buck charge controller built directly into the panel — so all you need to do is connect it to your battery.
Wi-Fi Connectivity & Web Interface
With Wi-Fi connectivity and a web interface, you can monitor performance in real-time, adjust charge settings, and ensure your solar system operates at peak efficiency — from any device.

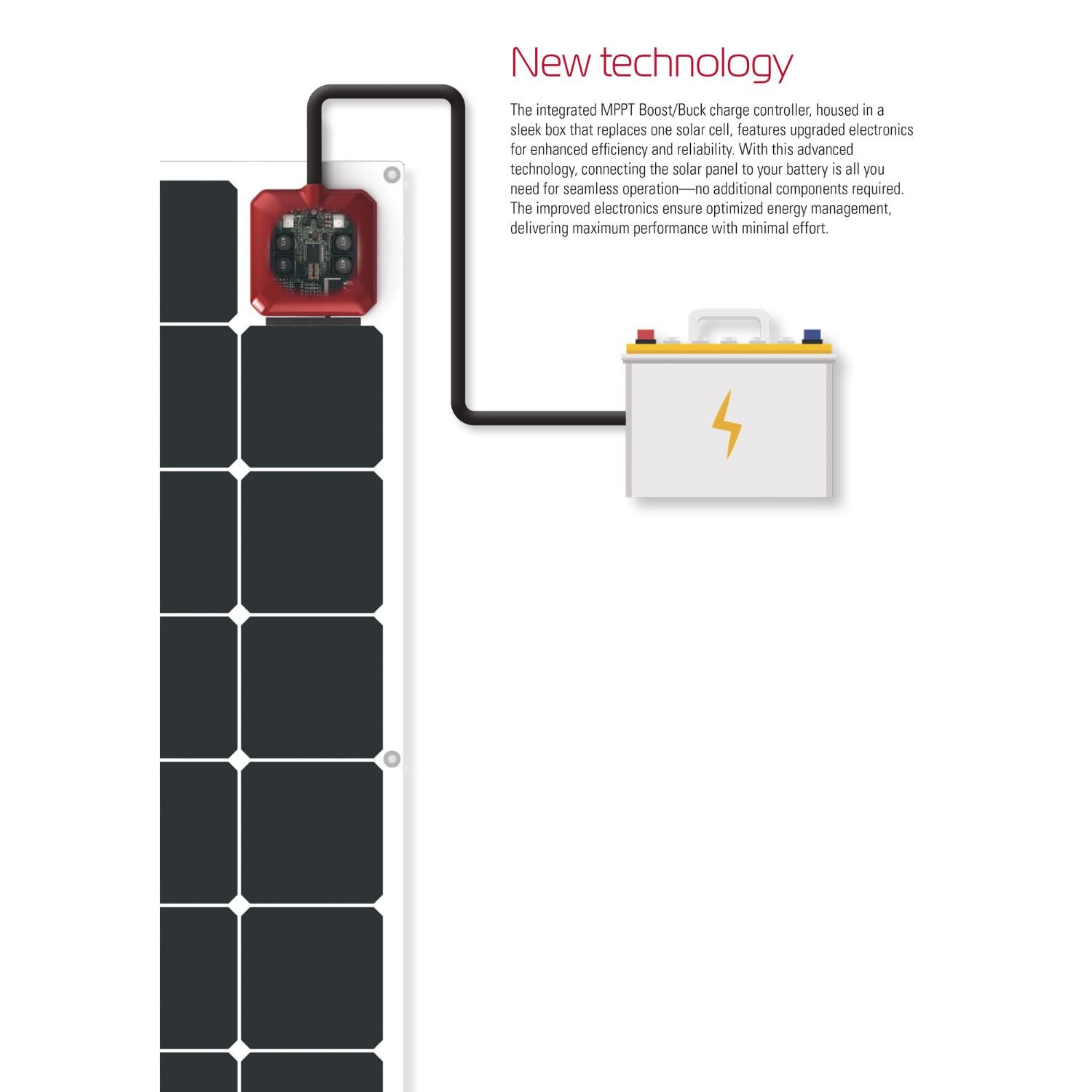

New Technology
The integrated MPPT Buck/Boost charge controller is built directly into the panel, ensuring optimized energy management and effortless installation.

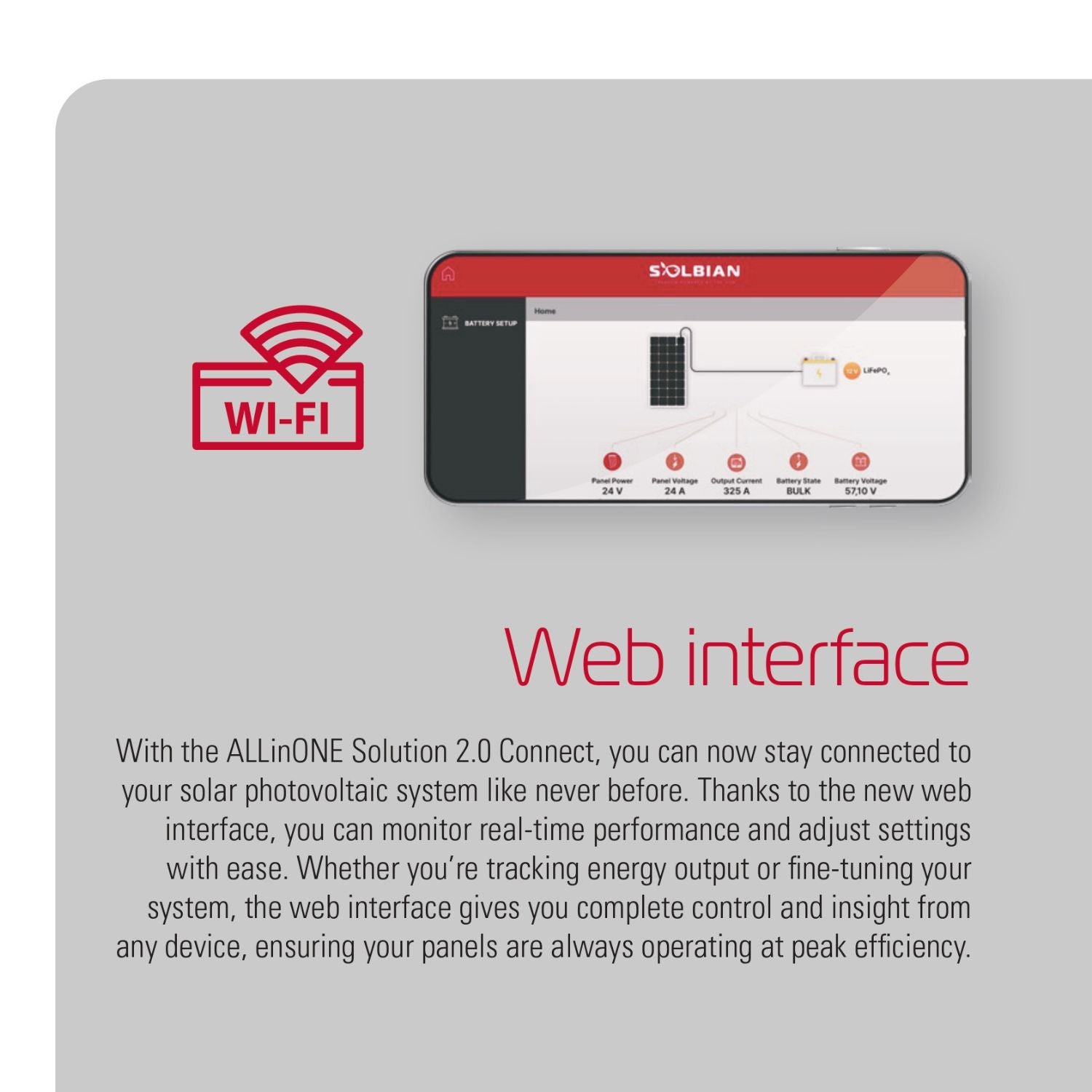

Web Interface
Monitor real-time performance and adjust settings easily through the built-in Wi-Fi and web interface, accessible from any device.
Key Features

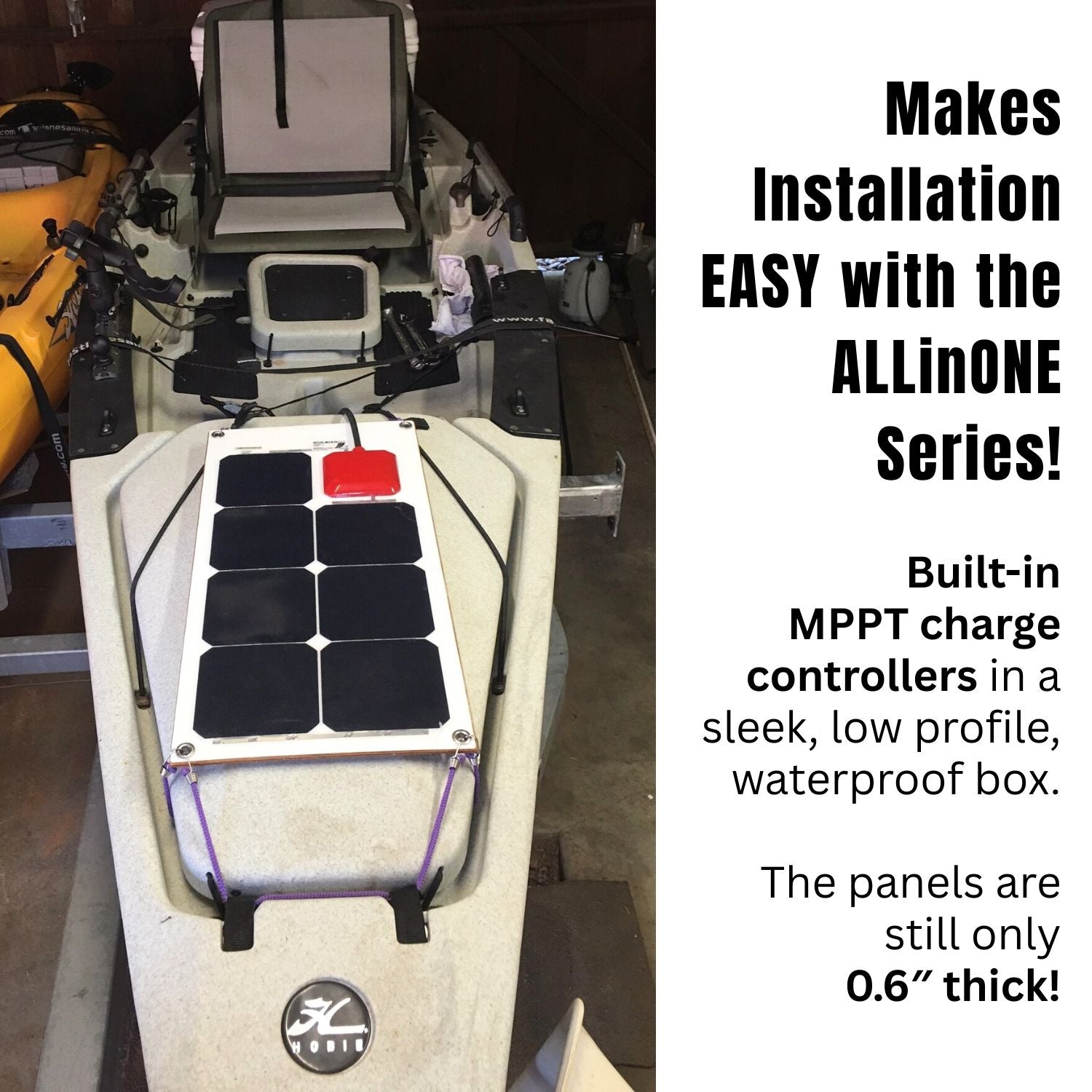

✅ Built-in MPPT charge controllers in a sleek, low profile, waterproof box. The panels are still only 0.6″ thick!
✅ High-efficiency SunPower Maxeon or Merlin cells
✅ Web interface with Wi-Fi for monitoring and customization
✅ Charge profiles for Lead Acid, LiFePO4, or custom batteries

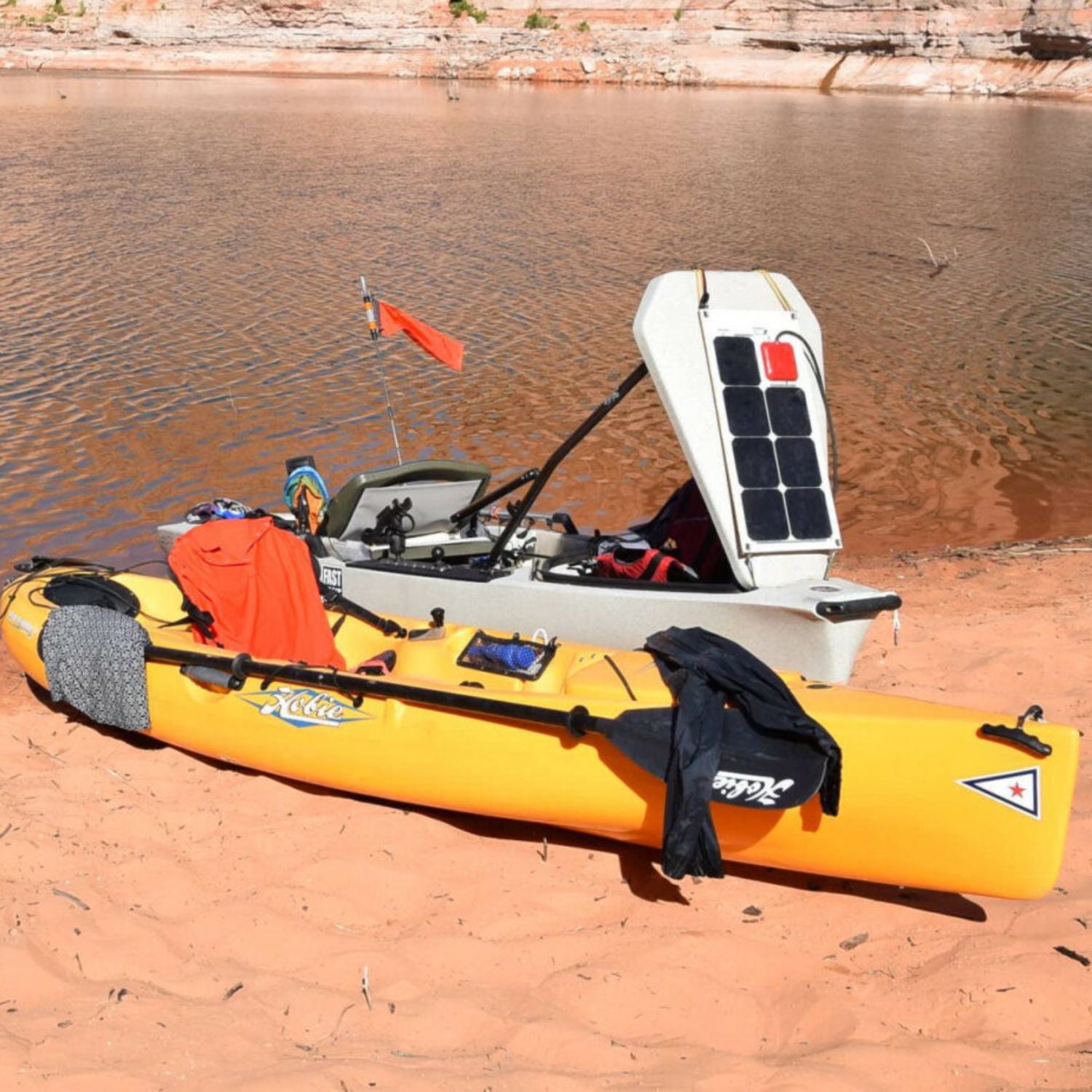

✅ Lightweight & flexible marine design
✅ Environmental protection: IP68
✅ Perfect for keeping even a good sized battery bank topped off when you are at the mooring.
✅ Available with Forex backing for added durability
✅ Available with grommets to secure the panels when deployed.
✅ 5-year warranty

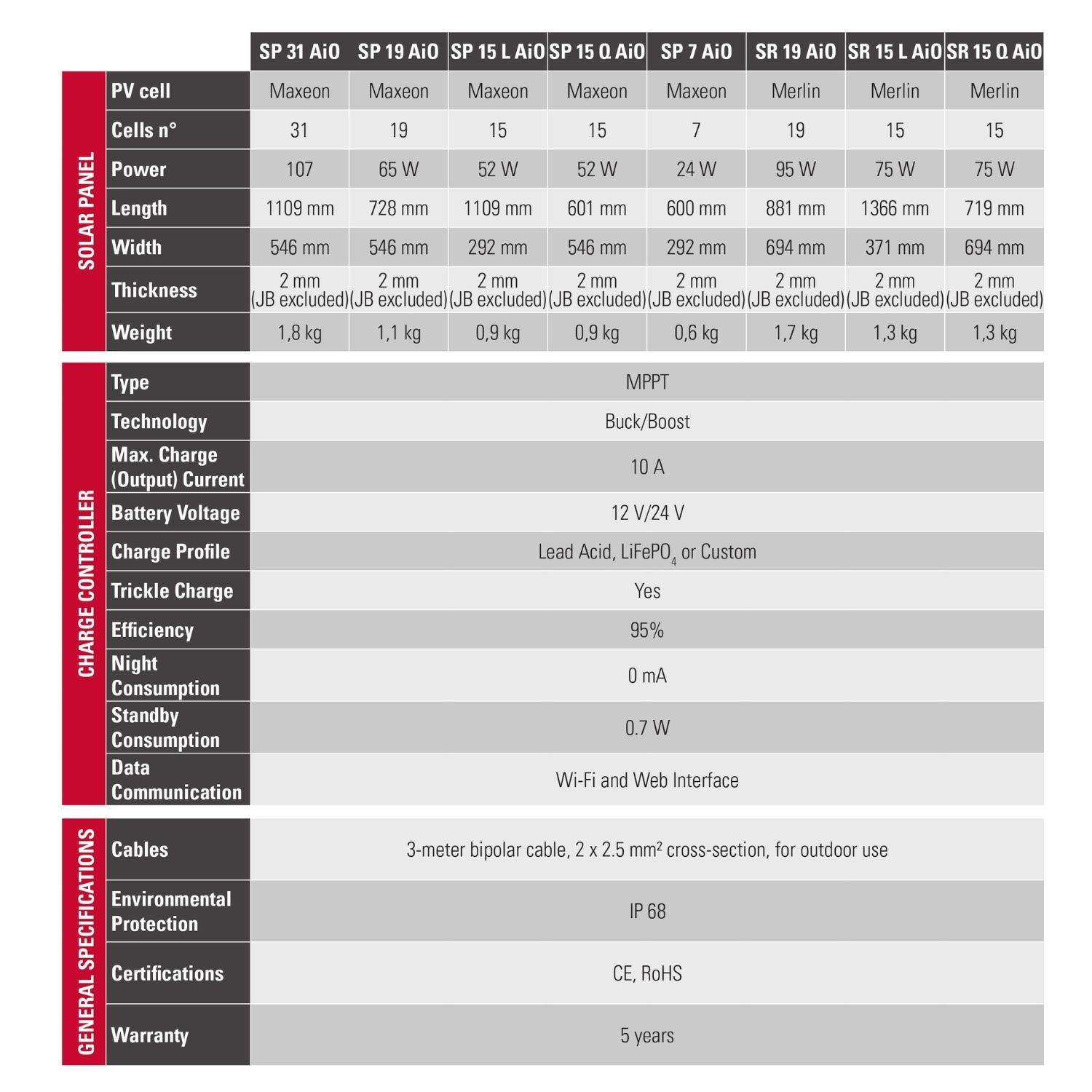

Specifications

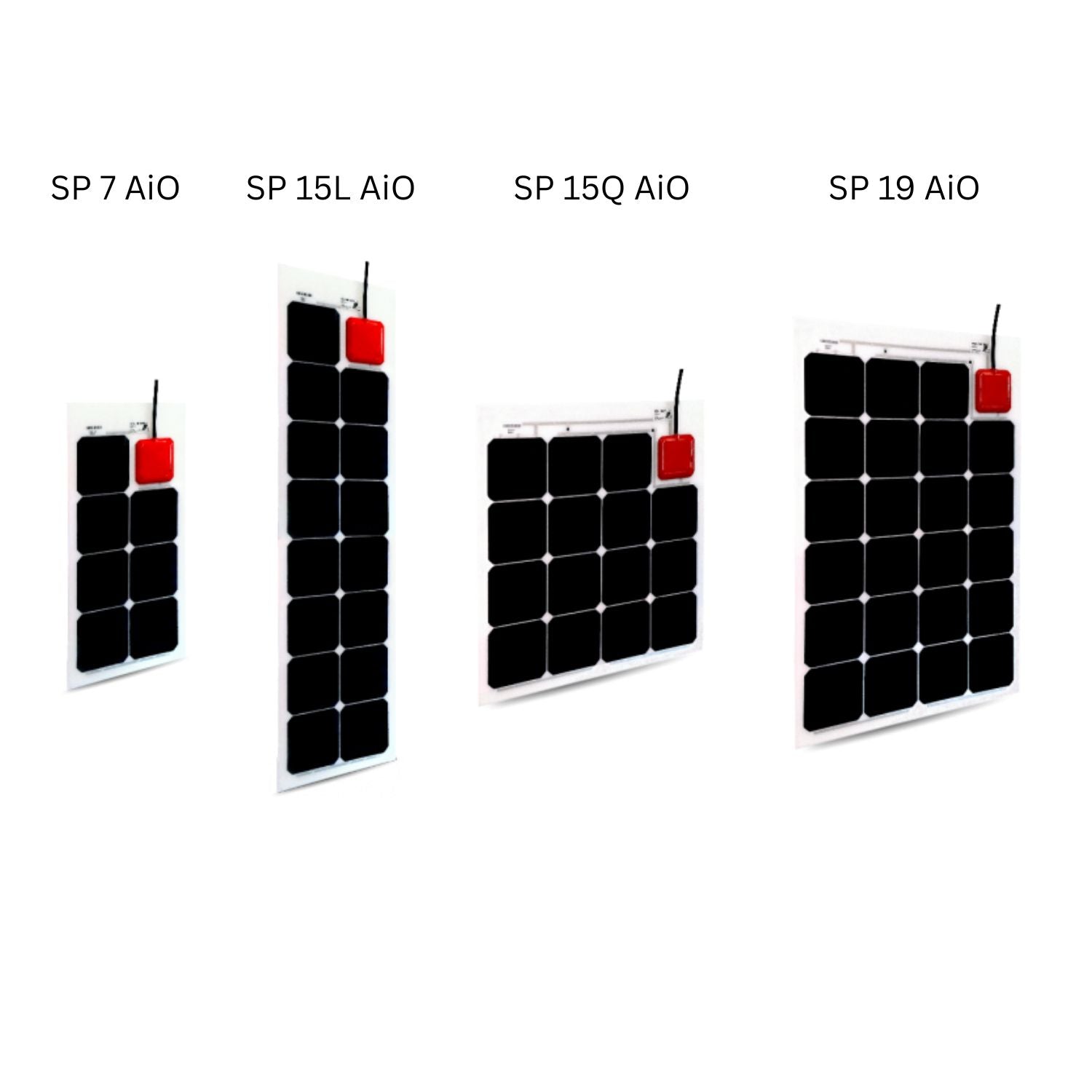

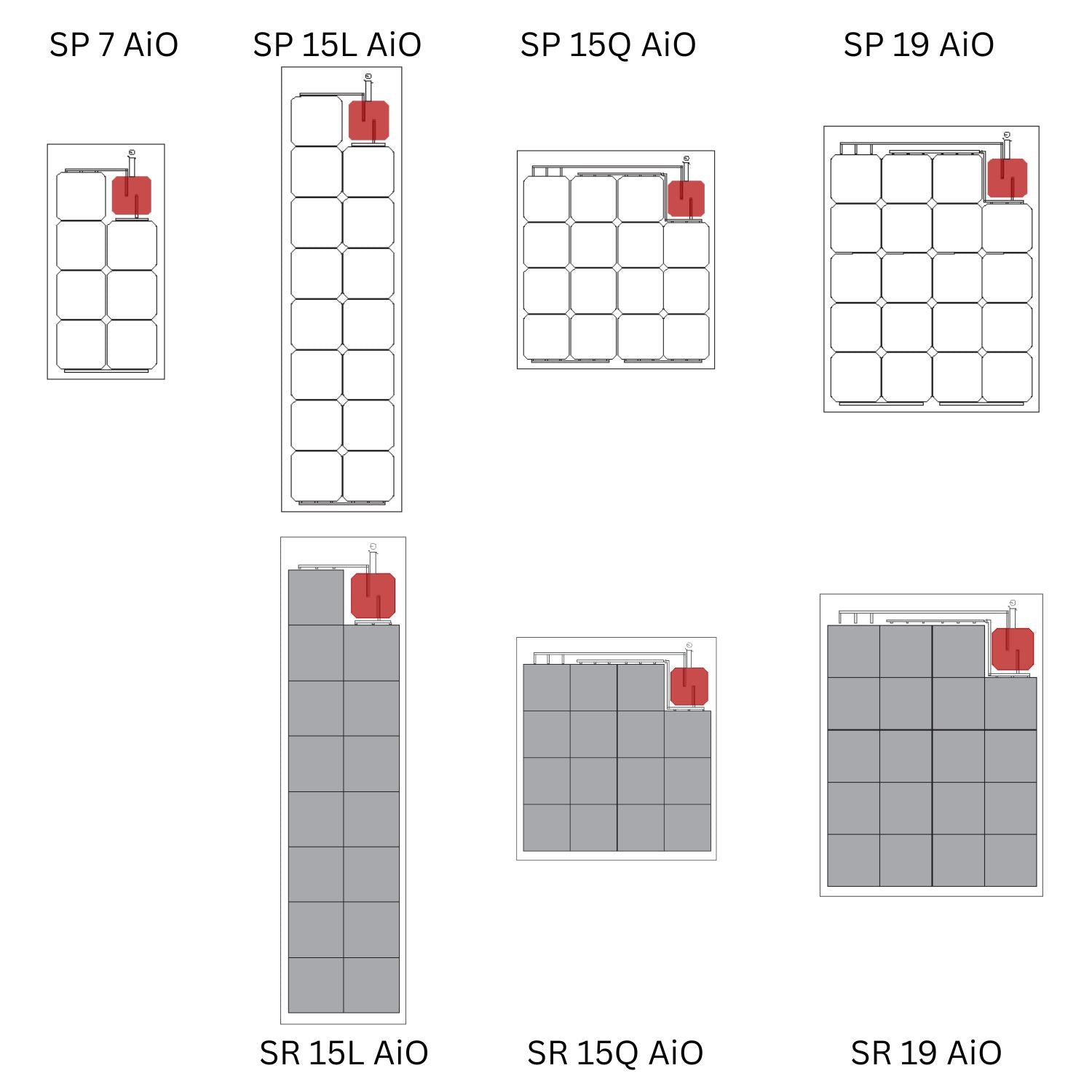

| SP 31 AiO | SP 19 AiO | SP 15 L AiO | SP 15 Q AiO | SP 7 AiO | SR 19 AiO | SR 15 L AiO | SR 15 Q AiO | |
|---|---|---|---|---|---|---|---|---|
| SOLAR PANEL | ||||||||
| PV cell | Maxeon | Maxeon | Maxeon | Maxeon | Maxeon | Merlin | Merlin | Merlin |
| Cells n° | 31 | 19 | 15 | 15 | 7 | 19 | 15 | 15 |
| Power | 107 W | 65 W | 52 W | 52 W | 24 W | 95 W | 75 W | 75 W |
| Length | 1109 mm | 728 mm | 1109 mm | 601 mm | 600 mm | 881 mm | 1366 mm | 719 mm |
| Width | 546 mm | 546 mm | 292 mm | 546 mm | 292 mm | 694 mm | 371 mm | 694 mm |
| Thickness | 2 mm (JB excluded) | |||||||
| Weight | 1.8 kg | 1.1 kg | 0.9 kg | 0.9 kg | 0.6 kg | 1.7 kg | 1.3 kg | 1.3 kg |
| CHARGE CONTROLLER | ||||||||
| Type | MPPT | |||||||
| Technology | Buck/Boost | |||||||
| Max. Charge (Output) Current | 10 A | |||||||
| Battery Voltage | 12 V / 24 V | |||||||
| Charge Profile | Lead Acid, LiFePO4, or Custom | |||||||
| Trickle Charge | Yes | |||||||
| Efficiency | 95% | |||||||
| Night Consumption | 0 mA | |||||||
| Standby Consumption | 0.7 W | |||||||
| Data Communication | Wi-Fi and Web Interface | |||||||
| GENERAL SPECIFICATIONS | ||||||||
| Cables | 3-meter bipolar cable, 2 × 2.5 mm² cross-section, for outdoor use | |||||||
| Environmental Protection | IP 68 | |||||||
| Certifications | CE, RoHS | |||||||
| Warranty | 5 years | |||||||
