425 Watt Bifacial Rigid Solar Panel - BC Cells 27.4% Efficient with Clear Backing

425 Watt Bifacial Rigid Solar Panel - BC Cells 27.4% Efficient with Clear Backing

This 425 Watt Bifacial Rigid Solar Panel features premium Back Contact (BC) solar cell technology with an impressive 27.4% cell efficiency, delivering exceptional power output from a compact footprint. Designed specifically for demanding marine and mobile applications, this panel performs exceptionally well in both full sun and partial shading conditions.

The clear backing allows the panel to capture reflected light from the rear side, increasing energy harvest in suitable installations while maintaining the sleek appearance of back contact cells with no visible front busbars.

Built to withstand harsh marine environments, this panel is ideal for boats, sailboats, trawlers, catamarans, vans, expedition vehicles, and off-grid systems where maximizing power production per square foot is essential.

Why Choose This 425W BC Bifacial Solar Panel?

✅ Premium Back Contact Solar Cells – 27.4% Efficient
One of the highest-efficiency solar cell technologies available today. Generate more power from limited mounting space compared to conventional panels.

✅ Bifacial Design with Clear Backing
The transparent backing allows the panel to utilize reflected light from the rear side, helping boost energy production in the right installation conditions.

✅ ST Shade-Tolerant Technology
Designed to maintain strong performance even when portions of the panel experience shading from rigging, radar domes, antennas, booms, or other onboard equipment.

✅ More Power Per Square Foot
Produce significantly more energy from the same deck, arch, davit, or rooftop space compared to traditional residential solar panels.

✅ Superior Low-Light Performance
Back contact cells deliver excellent energy production during cloudy conditions, early mornings, and late afternoons.

✅ No PID Degradation
Advanced cell construction helps eliminate Potential Induced Degradation (PID), supporting long-term reliability and performance.

✅ Marine-Ready Construction
Features a durable anodized aluminum frame, IP67-rated junction box, MC4 connectors, and rugged construction designed to withstand harsh environments.

✅ Precision Automated Manufacturing
Fully automated welding creates solid electrical connections for improved durability and consistent performance.

Ideal Applications

• Sailboats
• Powerboats
• Trawlers
• Catamarans
• Dinghy Davits
• Radar Arches
• RVs and Camper Vans
• Tiny Homes
• Off-Grid Cabins
• Expedition Vehicles

Specifications

• Model: CMP22425RB-STB
• Rated Power: 425 Watts
• Peak Power Voltage (Vmpp): 39.06 Volts
• Peak Power Amps (Impp): 10.88 Amps
• Open Circuit Voltage (Voc): 45.7 Volts
• Short Circuit Current (Isc): 11.53 Amps
• Cell Conversion Efficiency: 27.4%
• Cell Technology: Bifacial Monocrystalline Back Contact (BC)
• Cell Layout: 6 x 31
• Solar Cell Size: 182 × 47 mm

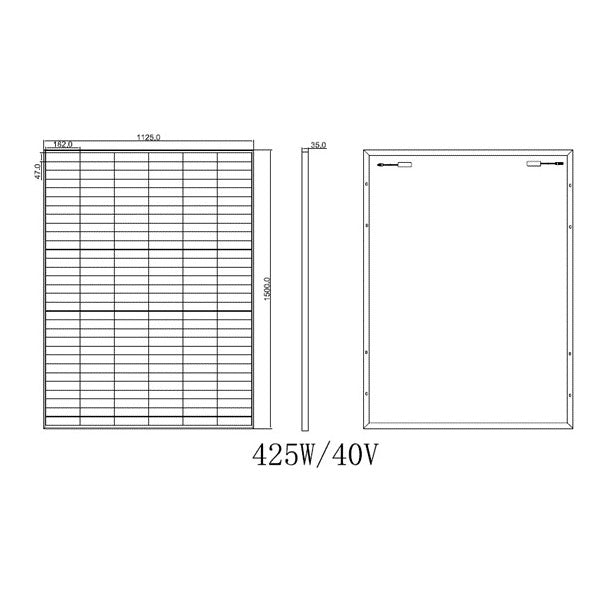

• Dimensions: 44.3" x 59" x 1.4", 1125 x 1500 x 35 mm
• Weight: 60.8 lbs, 27.6 kgs

Need Help Designing Your Solar System?

Not sure if this 425 Watt bifacial panel is the right fit for your boat or van? Contact our team at 248-971-2199 or info@custommarineproducts.com and we'll help you design a complete solar charging system tailored to your energy needs, available mounting space, and battery bank configuration.
