325 Watt Bifacial Rigid Solar Panel with Clear Backing - New Generation Back Contact Cell A+ Grade 27.4% Efficient Cells

Coming Soon!

325 Watt Bifacial Rigid Solar Panel with Clear Backing - New Generation Back Contact Cell A+ Grade 27.4% Efficient Cells

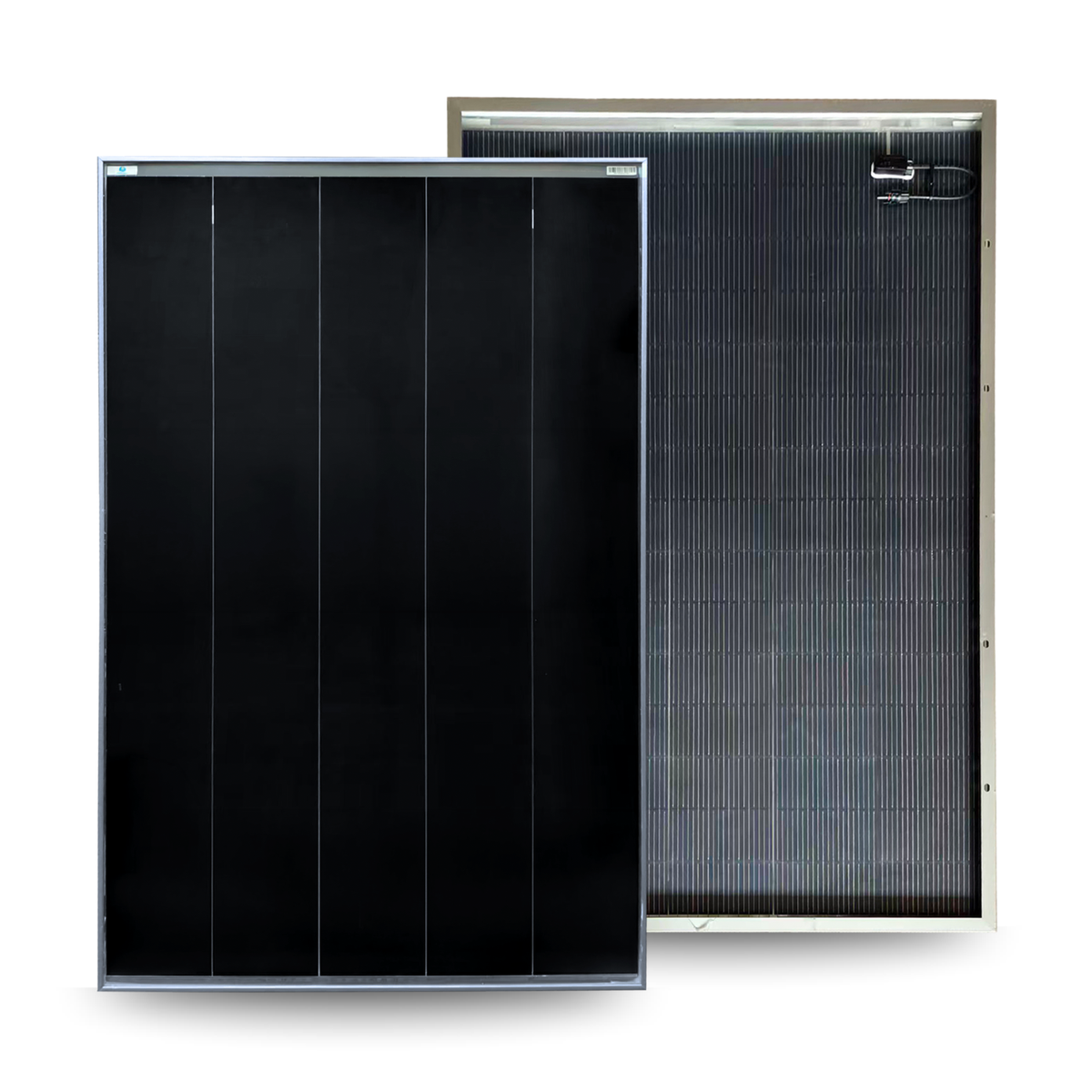

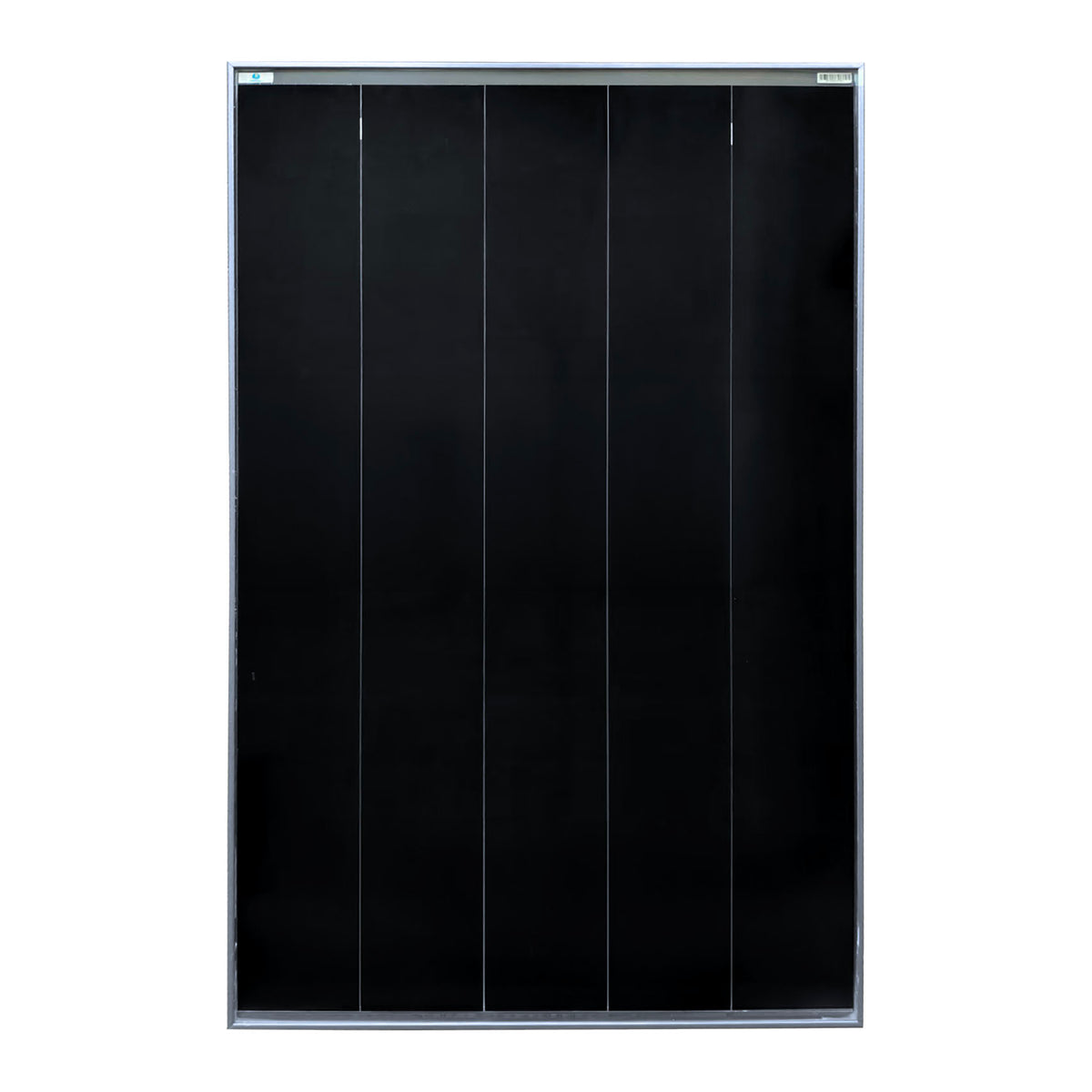

Make the most of your available mounting space with the CMPower 325 Watt Bifacial Rigid Solar Panel. Built with new-generation All-Back Contact (ABC) solar cells featuring 27.4% cell conversion efficiency, this rigid glass panel combines efficient energy capture, shade-tolerant performance, and transparent backing for marine, van, and off-grid installations.

Measuring 36.2" × 56.9", this panel provides 325 watts of rated power in a versatile rectangular footprint. Its clear backing allows reflected sunlight to reach the rear of the cells, creating opportunities for additional energy production when the mounting position and surrounding surfaces support bifacial gain.

From sailboat arches and dinghy davits to van mounting systems, the durable glass-and-frame construction offers a practical solution for dependable solar charging. An IP67-rated junction box and MC4 connectors complete the panel’s electrical connection system.

Why Choose This 325W BC Bifacial Solar Panel?

✅ A+ Grade Back Contact Cells – 27.4% Cell Efficiency

All-Back Contact technology places the positive and negative electrical contacts on the rear of each cell, leaving more of the front surface exposed to sunlight. This design supports efficient energy capture and gives the panel a clean, streamlined appearance.

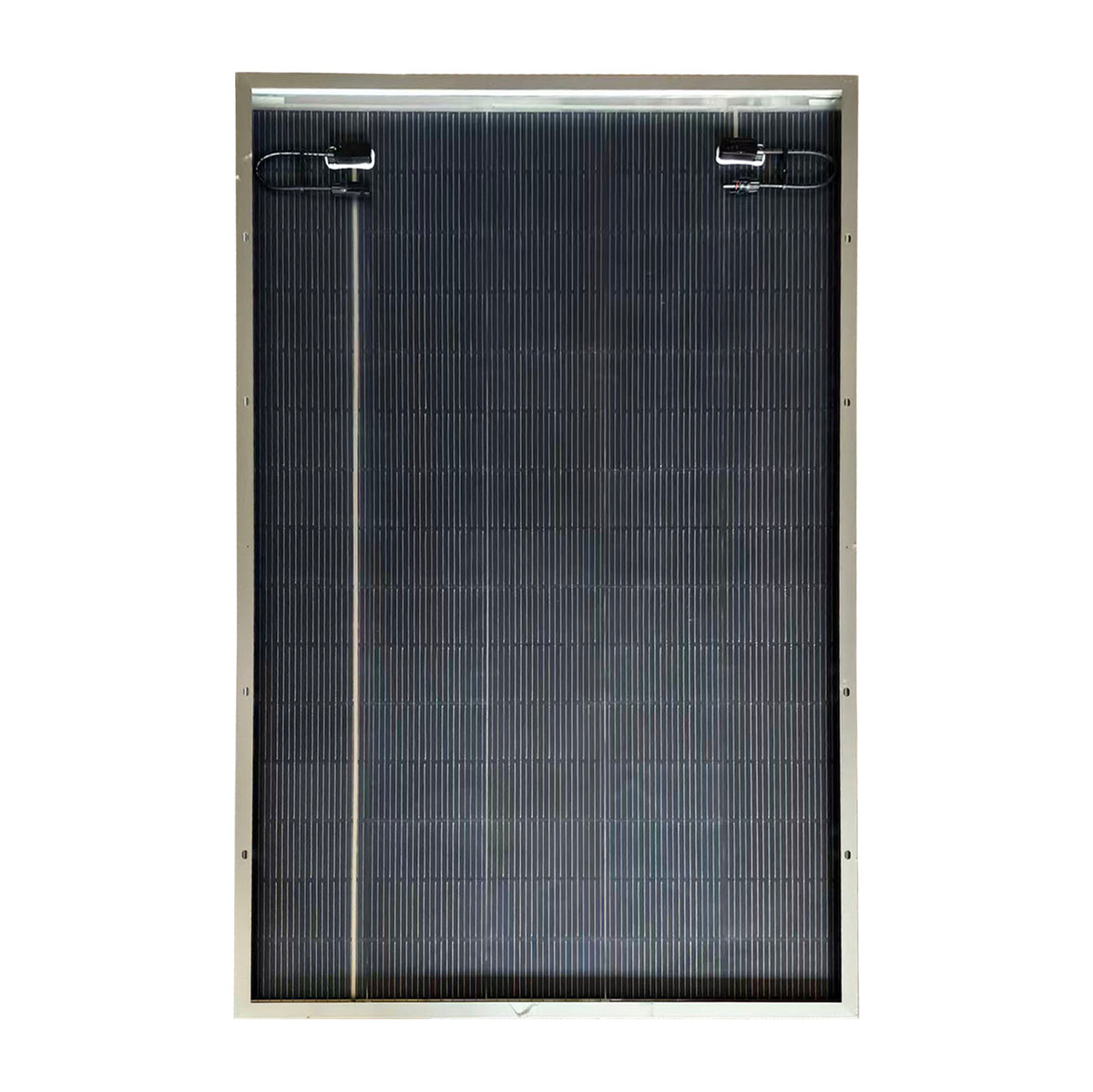

✅ Clear Backing for Additional Rear-Side Energy Capture

The transparent backing allows the panel to collect reflected light from behind the cells. Installations with an exposed rear surface and suitable reflected light can benefit from additional energy harvest.

✅ Improved Performance Under Partial Shading

Advanced cell and electrical design helps reduce the impact of partial shading from rigging, antennas, davits, or rooftop equipment. This makes the panel well suited to installations where unobstructed sunlight is difficult to maintain throughout the day.

✅ Reduced Power Loss in Hot Conditions

With a −0.26%/°C maximum-power temperature coefficient, this panel helps limit heat-related power losses as cell temperature rises—an advantage for sunny marine and RV environments.

✅ Efficient Use of Available Mounting Space

High-efficiency cells help maximize solar generation within the panel’s 36.2" × 56.9" footprint. Use the dimensions to plan a single-panel installation or a multi-panel array around your vessel’s or vehicle’s available space.

✅ Durable Rigid Glass Construction

A rigid glass surface and silver frame provide structural strength for fixed mounting applications. The panel weighs 34.39 lb (15.6 kg) and is designed to remain flat.

Specifications

• Model: CMP22270SB-325-STB
• Rated Power: 325 Watts
• Peak Power Voltage (Vmpp): 47.3 Volts
• Peak Power Amps (Impp): 6.88 Amps
• Open Circuit Voltage (Voc): 55.28 Volts
• Short Circuit Current (Isc): 7.29 Amps
• Cell Conversion Efficiency: 27.4%
• Cell Technology: Transparent Bifacial Monocrystalline Back Contact (BC)
• Cell Layout: 175*47 / 5x30

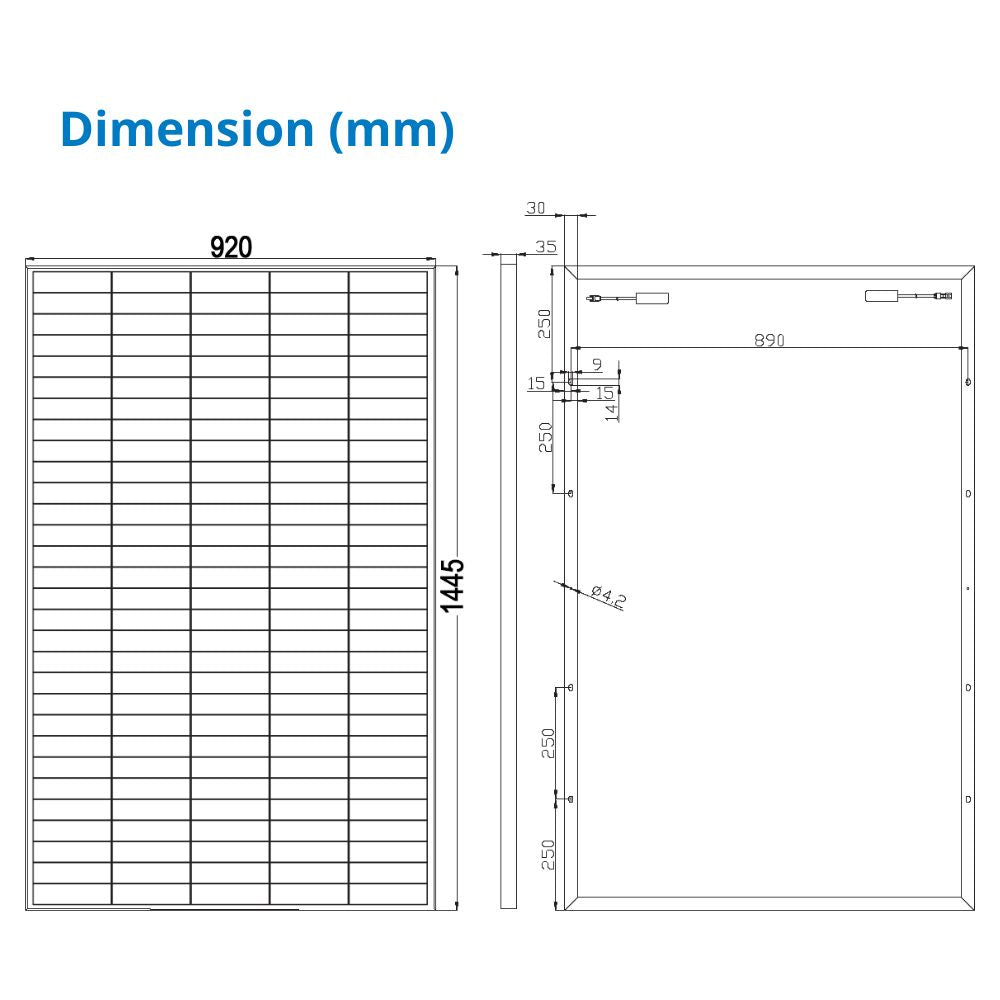

• Dimensions: 36.2" x 56.9" / 920 x 1445 x 30 mm
• Weight: 34.39 lbs / 15.6 kg
• Warranty: 10 Year (prorated)
• Datasheet: click here

Getting the Most from the Bifacial Design

Rear-side energy production depends on how much reflected light reaches the back of the panel. An elevated installation with an exposed underside can offer better opportunities for bifacial gain than mounting directly against an opaque surface.

For the best results:

• Keep the rear surface exposed to reflected light where practical.
• Consider the reflectivity of nearby surfaces when choosing a mounting location.
• Use mounting hardware appropriate for the panel’s dimensions, weight, and installation environment.

Ideal Applications

• Sailboat solar arches
• Dinghy davit solar installations
• Trawlers and powerboats
• Yacht solar charging systems
• Pole-mounted marine solar systems
• Camper vans and motorhomes
• Travel trailers and RVs
• Tiny homes and off-grid cabins
• Expedition vehicles

Certifications

• IEC 61215
• IEC 61730
• UKCA
• CE
• RoHS

Need Help Designing Your Solar System?

Need assistance determining if this 325W panel is the right fit for your project? Our team can help you design a complete solar charging system tailored to your energy needs and available installation space.
Contact us team at 248-971-2199 or info@custommarineproducts.com.
