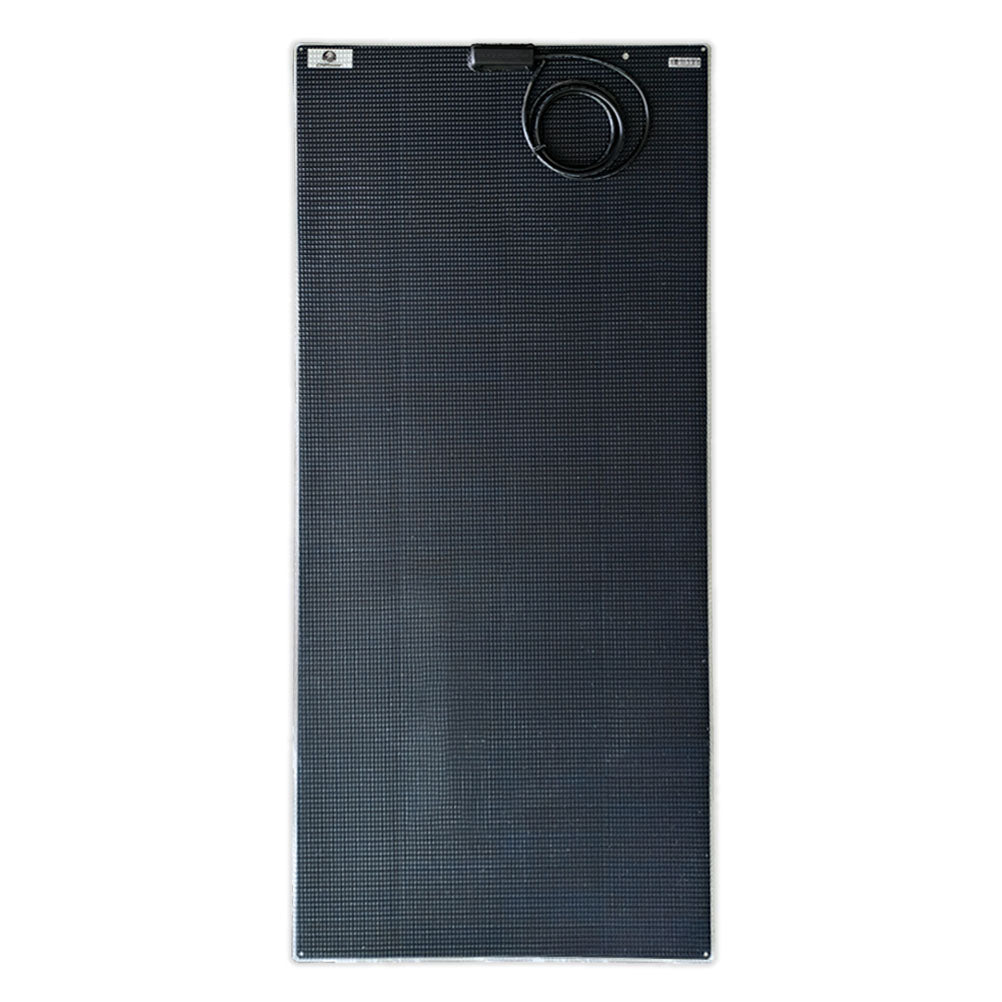

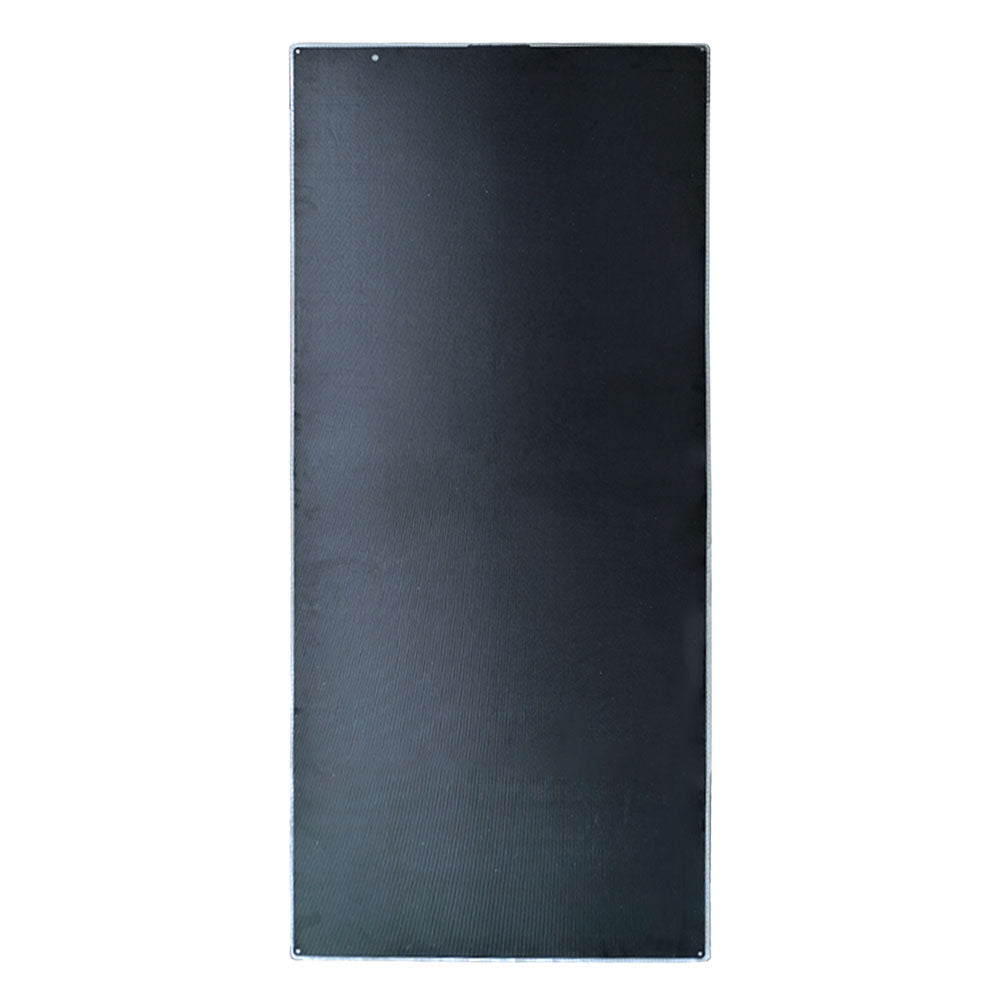

235 Watt Walkable Semi Rigid Solar Panel with Polycarbonate & J-Mount Brackets - New Generation Back Contact Cell A+ Grade 27.4% Efficient Cells

High-output solar built for surfaces you still need to use.

The CMPower 235 Watt Walkable Semi-Rigid Solar Panel brings higher-capacity solar charging to boat decks, vans, and other installations where a conventional framed module may not be practical. Its 27.4% efficient All-Back Contact (ABC) cells deliver 235 watts from a streamlined, low-profile panel measuring 26 × 58.9 inches (660 × 1470 mm).

Rather than dedicating deck or roof area solely to solar equipment, the semi-rigid construction creates a tougher, supportive surface suitable for walkable installations. A twin-wall polycarbonate backing and J-channel mounting system are included, providing the supporting components needed to integrate the panel into marine or mobile applications.

Key Features

• 235W rated maximum power
• 27.4% efficient Back Contact solar cells
• New-generation All-Back Contact (ABC) cell technology
• Walkable, semi-rigid construction

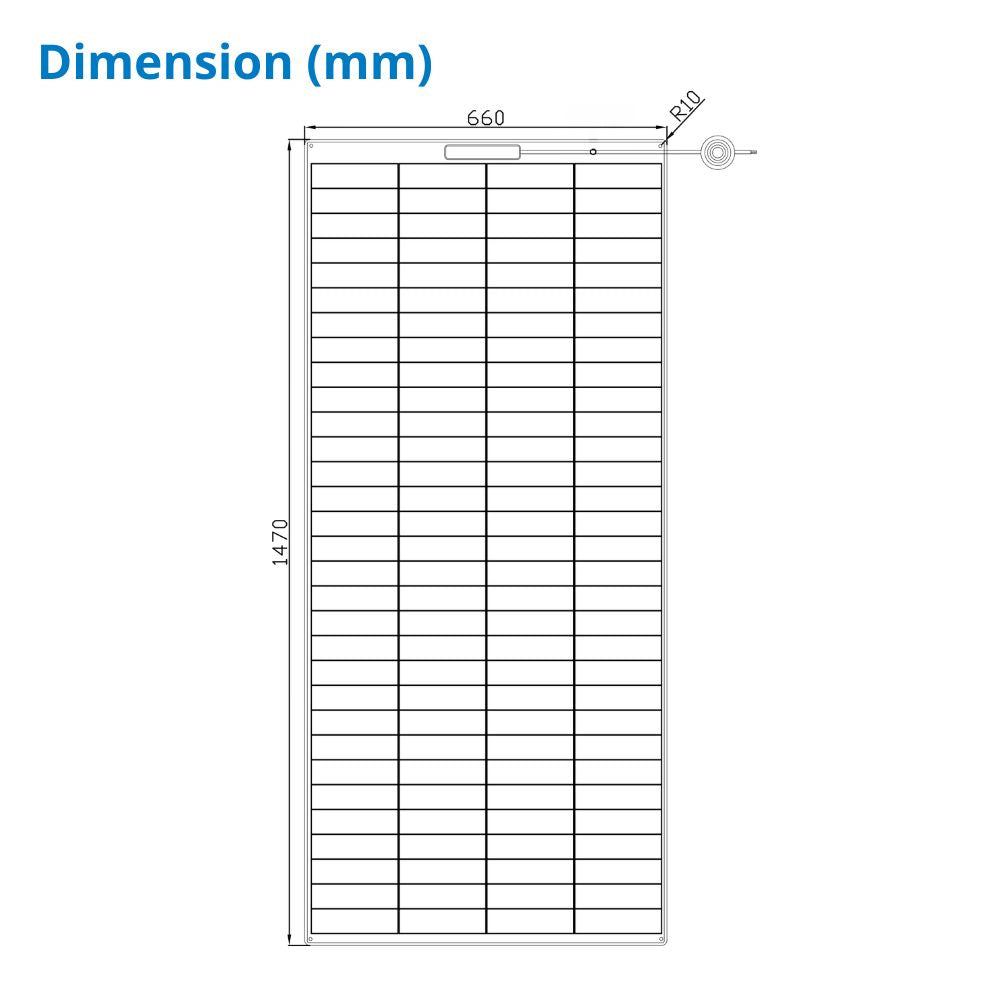

• 26 × 58.9 inch panel dimensions
• Low-profile 5 mm thickness
• Improved operation under partial shading
• -0.26%/°C Pmax temperature coefficient
• All-black surface with no front-side contact grid
• Twin-wall polycarbonate backing included
• J-channel mounting extrusions included
• 10° maximum bend specification
• Suitable for marine, van, and mobile solar installations

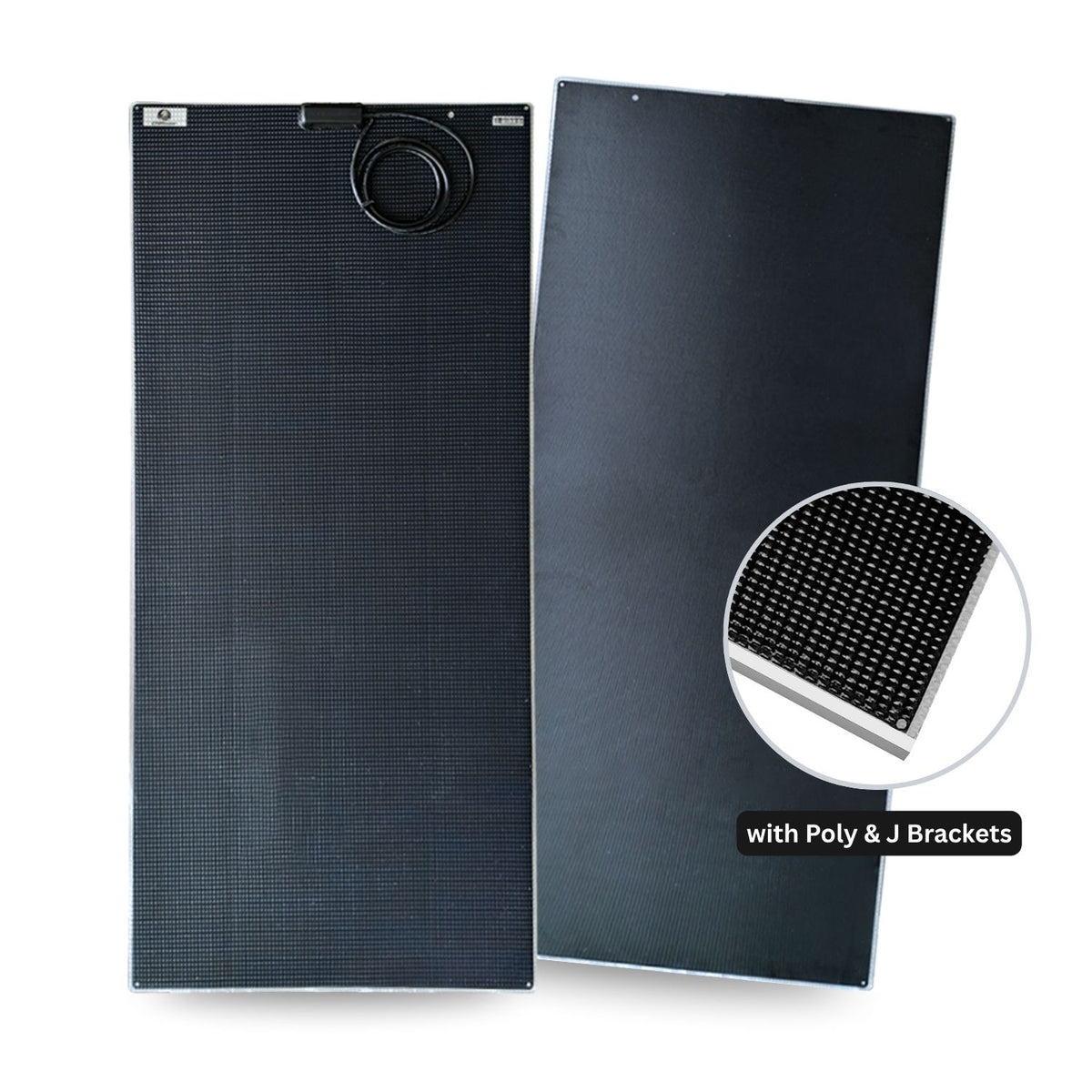

What's Included

• PV solar panel module
• Sheet of twin wall polycarbonate backing
• Two J channel mounting extrusions
• Owner’s Manual

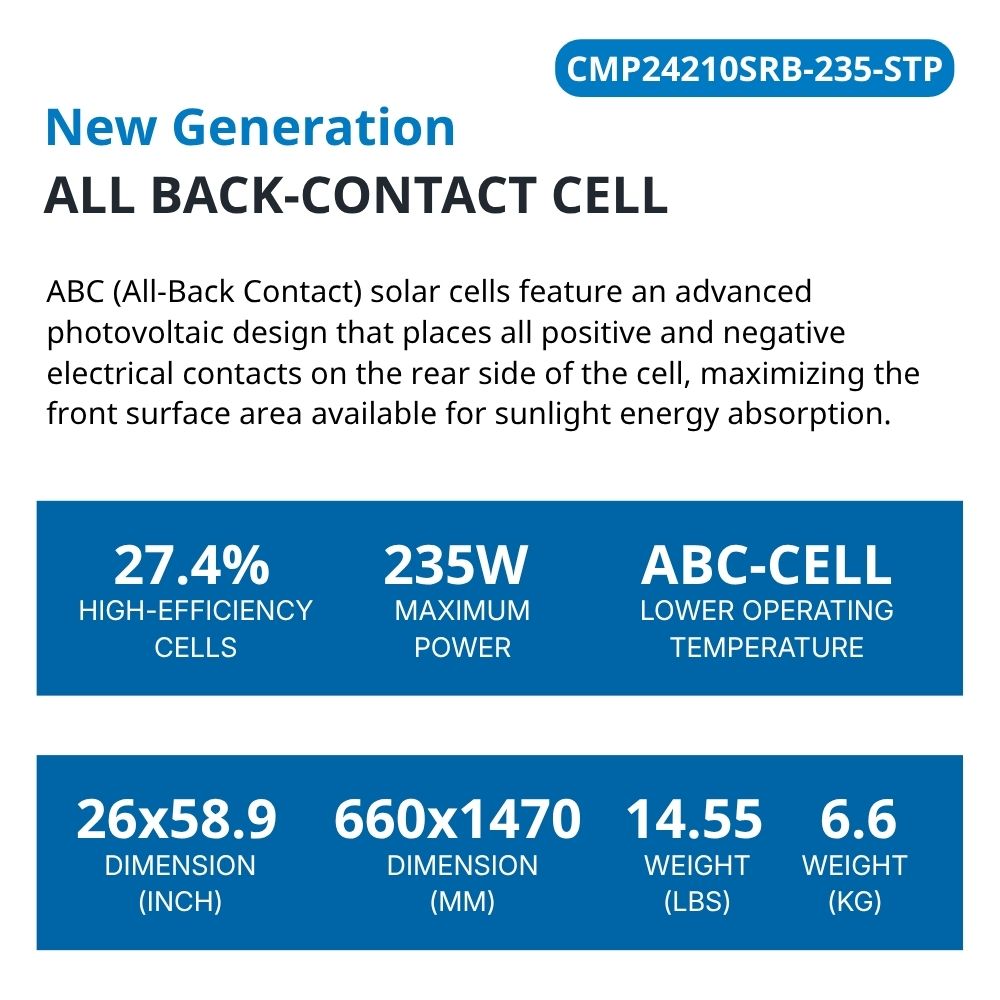

Specifications

More Power from 27.4% Efficient ABC Cells

At the heart of the CMPower 235W panel are new-generation All-Back Contact solar cells. ABC architecture relocates the positive and negative electrical contacts to the back of each cell instead of placing conductive contacts across the sun-facing surface.
Leaving the front of the cells unobstructed provides more active surface area for capturing sunlight energy. Combined with 27.4% cell efficiency, this allows the 235W model to provide substantial charging capacity without requiring the footprint of a large conventional framed panel.

The rear-contact layout also creates a uniform black surface without prominent front-side grid lines, giving the module a cleaner appearance on visible deck and roof installations.

A Walkable Solar Solution for Decks and Roofs

Where traditional rigid modules can turn valuable deck or roof area into unusable space, this panel is designed to become part of the surface itself.

Its 5 mm semi-rigid construction is paired with a transparent twin-wall polycarbonate sheet that provides additional support beneath the module. The backing also creates separation between the panel and mounting surface, allowing air to move underneath rather than placing the solar module directly against the deck or roof.
The supplied J-channels secure the assembly while maintaining a neat, low-profile installation.

Built for Real-World Shading Conditions

Perfect, uninterrupted sunlight can be difficult to achieve aboard a boat. A mast, boom, rigging, radar, antenna, or rail can cast shadows that move across the panel throughout the day. RV and van installations face similar obstacles from vents and rooftop equipment.

The cell and electrical configuration of this panel is designed for enhanced shade tolerance, improving performance when part of the module is temporarily shaded.

Maintains Better Output as Temperatures Rise

A solar panel exposed to full sun can operate considerably hotter than the surrounding air, particularly when mounted over a boat deck or vehicle roof. Because photovoltaic output decreases as cell temperature rises, the temperature coefficient is an important performance specification.

The CMPower 235W has a Pmax temperature coefficient of -0.26%/°C, helping limit the amount of rated power lost as the cells become hotter.

Clean, Low-Profile Appearance

Back Contact technology does more than improve the active cell area. Moving the electrical contacts behind the cells eliminates the prominent metallic grid pattern associated with many conventional modules. The result is a seamless all-black solar surface that sits only 5 mm thick, allowing the installation to integrate more discreetly with a boat deck, yacht, RV, or custom van build.

Made for Marine and Mobile Solar Systems

With 235 watts available from a 26-inch-wide panel, this model is particularly useful when a higher-output module is desired but installation width is restricted.

Potential installations include:

• Sailboat and yacht decks
• Catamarans
• Powerboats
• RV and motorhome roofs
• Camper vans and conversion vans
• Roof-mounted off-grid systems
• Walkable deck solar arrays
• Areas alongside hatches or rooftop equipment
