165 Watt Walkable Semi Rigid Solar Panel with Polycarbonate & J-Mount Brackets - Sunpower A+ Grade 24.4% Efficient Cells

165W walkable semi-rigid solar panel supplied with polycarbonate backing and J-brackets. It is engineered with premium SunPower A+ Grade solar cells for unmatched durability and performance. Delivering 24.4% conversion efficiency, this panel generates exceptional power in both full sun and partial shade, making it perfect for marine and off-grid applications.

Built to withstand harsh marine environments, this panel is lightweight, heat-resistant, and shade-tolerant, ensuring consistent energy production even in challenging conditions. Its semi-rigid design allows it to be safely walked on when properly supported. Efficient heat dissipation further improves performance in hot climates.

Ideal for mounting on boats, yachts, and camper vans, this panel provides dependable off-grid power for your fridges, lights, electronics, navigation gear, laptops, and more.

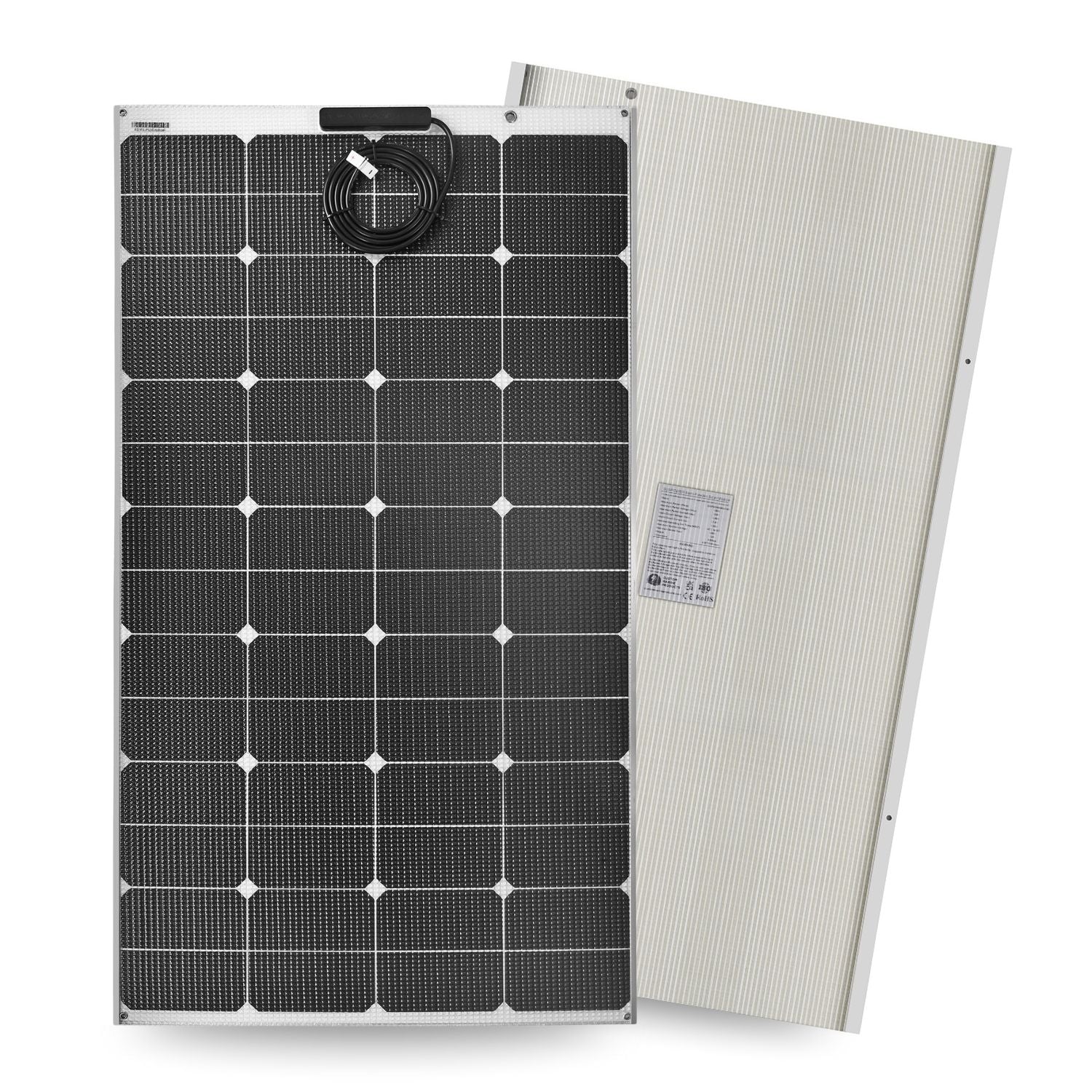

The semi-rigid (walk-on) solar panel kit includes:

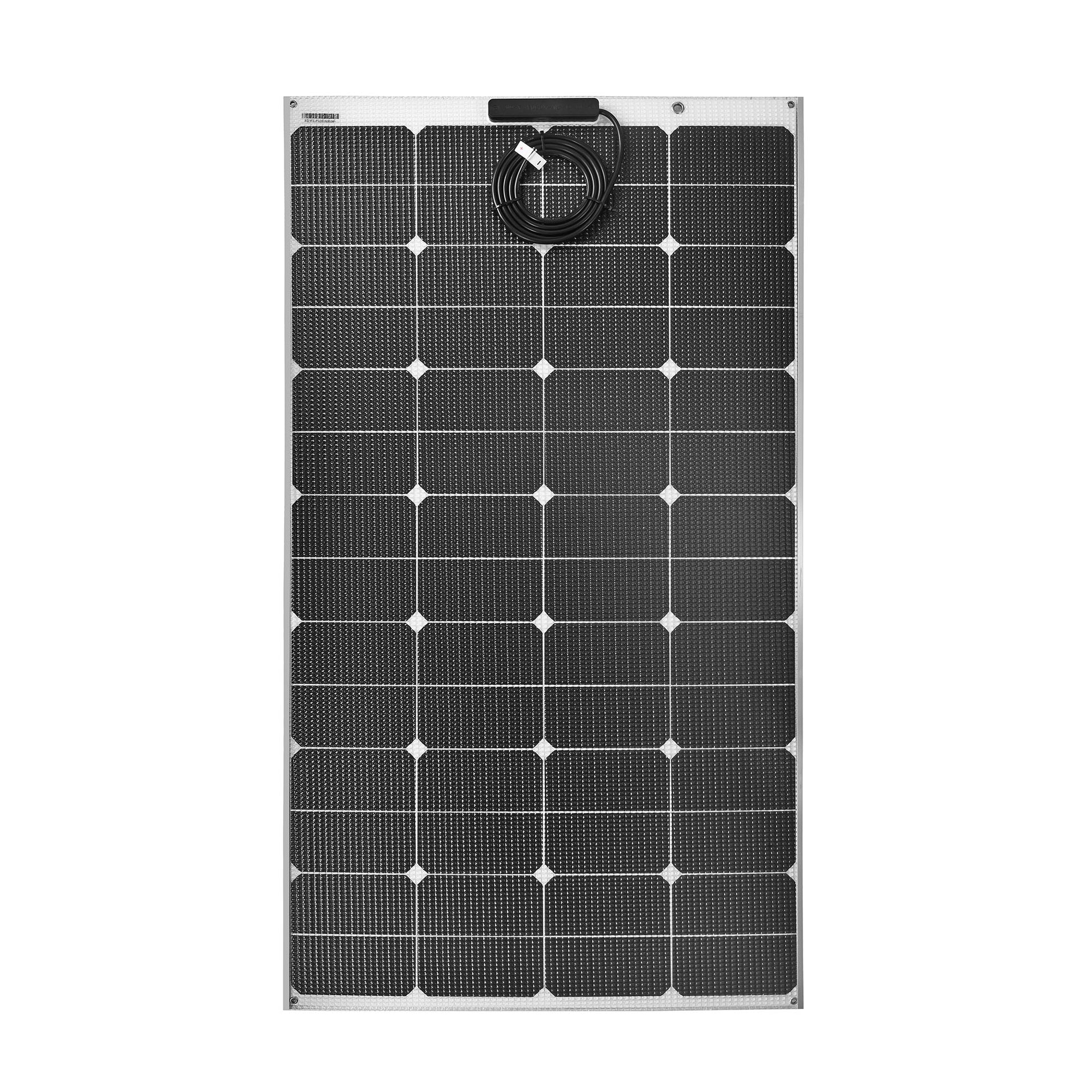

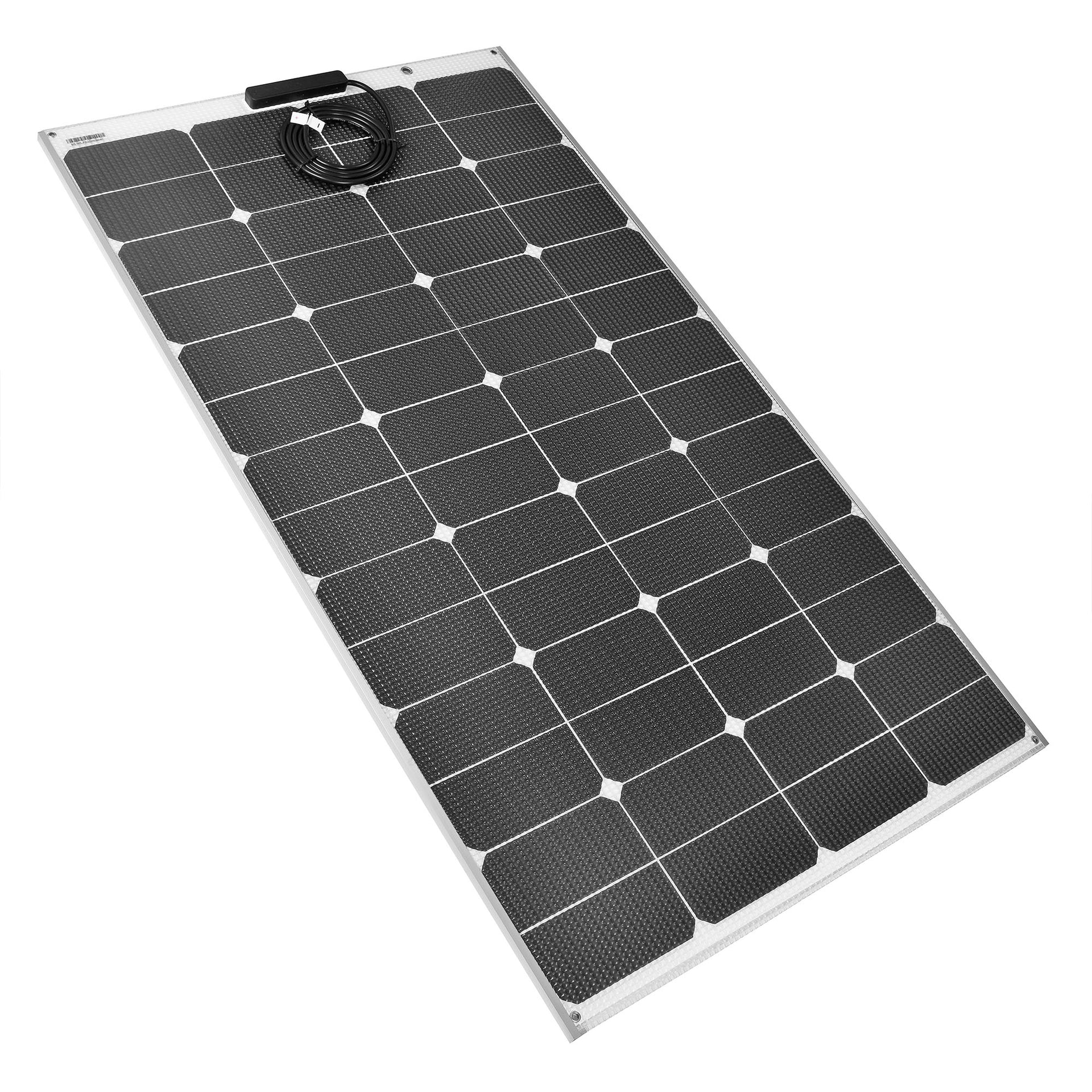

  • PV solar panel module

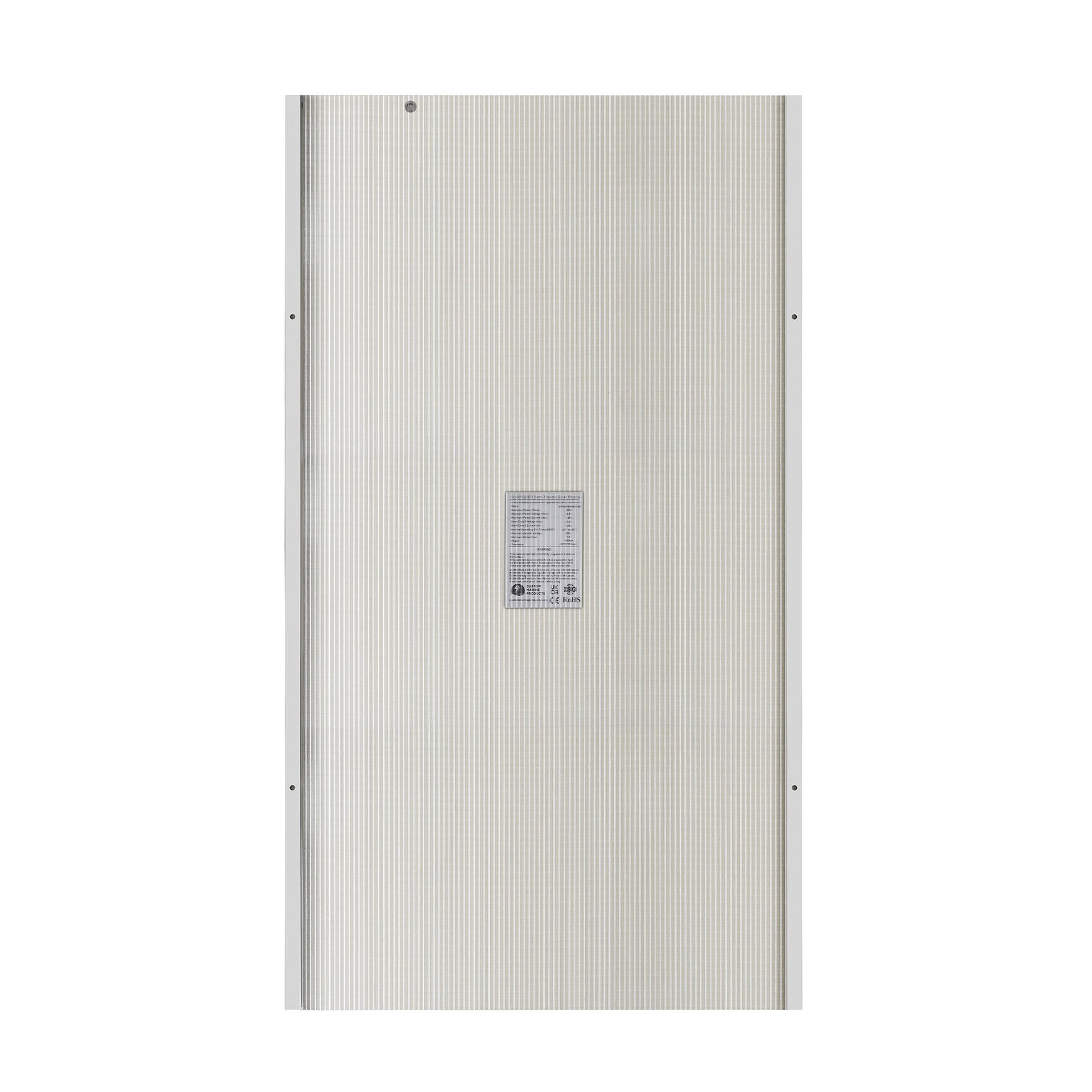

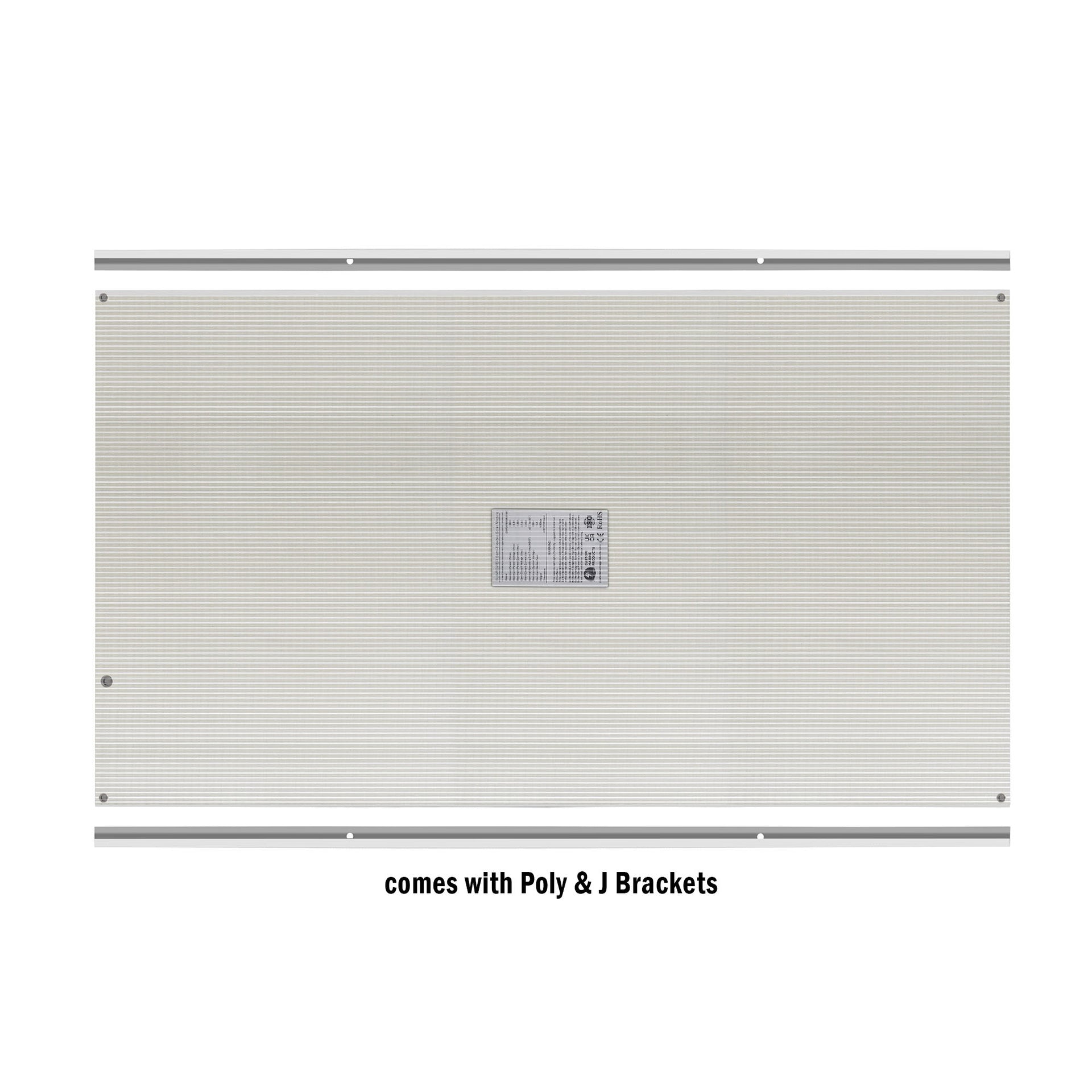

  • Sheet of twin wall polycarbonate backing
  • Two J channel mounting extrusions
  • Owner’s Manual

📦 Ships in 1-2 business days with UPS Ground from Denver or Michigan.

⚙️ Key Features

✅ High Efficiency Power Output – SunPower A+ Grade solar cells deliver 24.4% efficiency for maximum energy generation.

✅ Shade Tolerant Design – Produces reliable power in both full sun and partial shade, ideal for marine and van use.

✅ Walkable Semi-Rigid Build – Strong enough to be safely walked on when properly supported.

✅ Heat Dissipation Advantage – Performs better in hot climates thanks to improved cooling design.

✅ Lightweight & Low-Profile – Easy to install on boats, camper vans, and off-grid setups without adding bulk. Includes Poly and J brackets for secure setup.

✅ Marine-Grade Durability – Built to withstand salt, moisture, and tough outdoor environments.

✅ Long-Term Reliability – Backed by a 5-year warranty for peace of mind.

📏 Specifications

165 Watt Walkable Semi-Rigid Solar Panel
🔧 Model CMP24150SRX-165P
⚡ Rated Power 165 Watts
🔋 Peak Power Voltage (Vmpp) 30.8 Volts
🔋 Peak Power Amps (Impp) 5.4 Amps
⚡ Open Circuit Voltage (Voc) 37.6 Volts
⚡ Short Circuit Current (Isc) 5.8 Amps
🌞 Cell Conversion Efficiency 24.4%
📏 Dimensions 26.4" x 48", 670 x 1219 x 4 mm
⚖️ Weight 12.3 lbs, 5.6 kgs
🧱 Substrate Lightweight Fiberglass
🔲 Background Color White

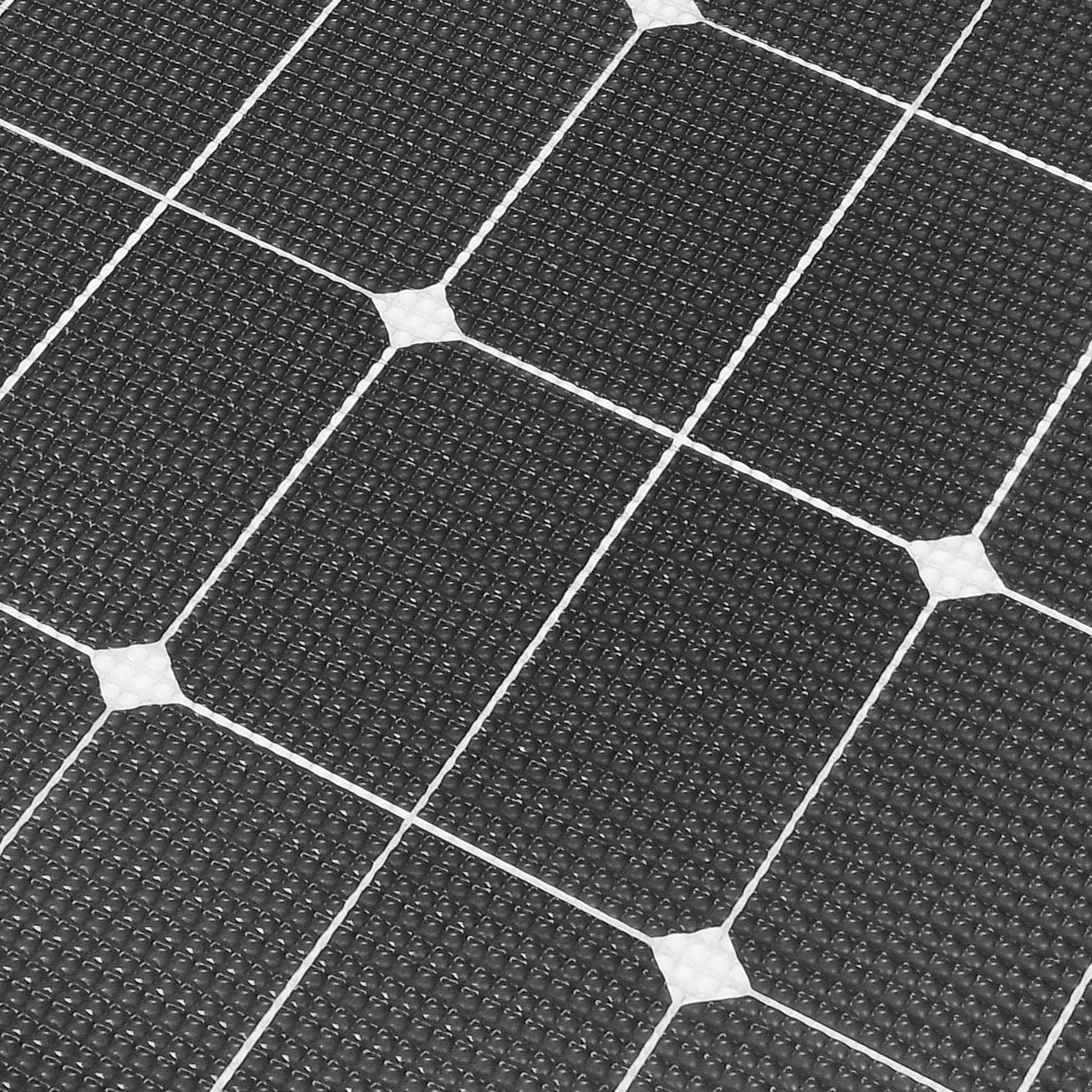

🧩 Cell Layout 4 x 14 (14 are half cells)
🛡️ Warranty 5 years

ℹ️ Module Loading Considerations

  • Semi-rigid and flexible panels can be walked on with anti-slip or flat soft sole shoes.
  • Semi-rigid panels and flexible panels can support a concentrated weight (minimum area of 2” x 2”) of up to 180 pounds, with a rigid backing supporting the panel. Avoid sharp objects, chair legs, or high heels on panels — these can crack solar cells. Semi-rigid or flexible panels can support a distributed weight in excess of 180 pounds if the panel has a strong rigid backing.
  • Placing heavy objects (such as installation tools) on the surface of the panel during or after installation of the panel is acceptable. Remove all obstructions once panels are installed.
  • Do not walk on panels that are installed on uneven surfaces.
  • Do not apply excessive loads on the corners of the panel.

🎥 Unboxing Our Walkable Solar Panel

See what comes with our Walkable Solar Panel, including J brackets and polycarbonate backing for a complete, ready-to-use solar setup. Also, learn how CMP’s shade-tolerant design keeps power flowing even when parts of the panel are shaded. This advanced technology ensures reliable solar performance for boats, vans, and off-grid systems.
