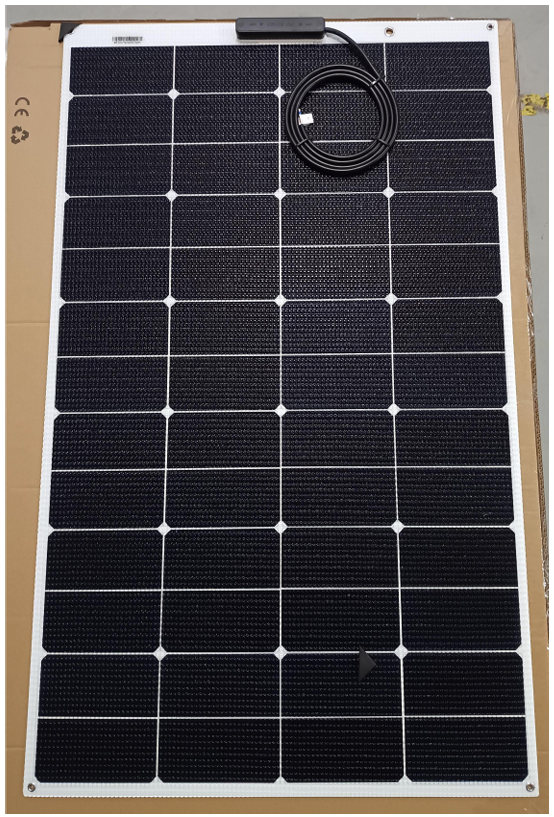

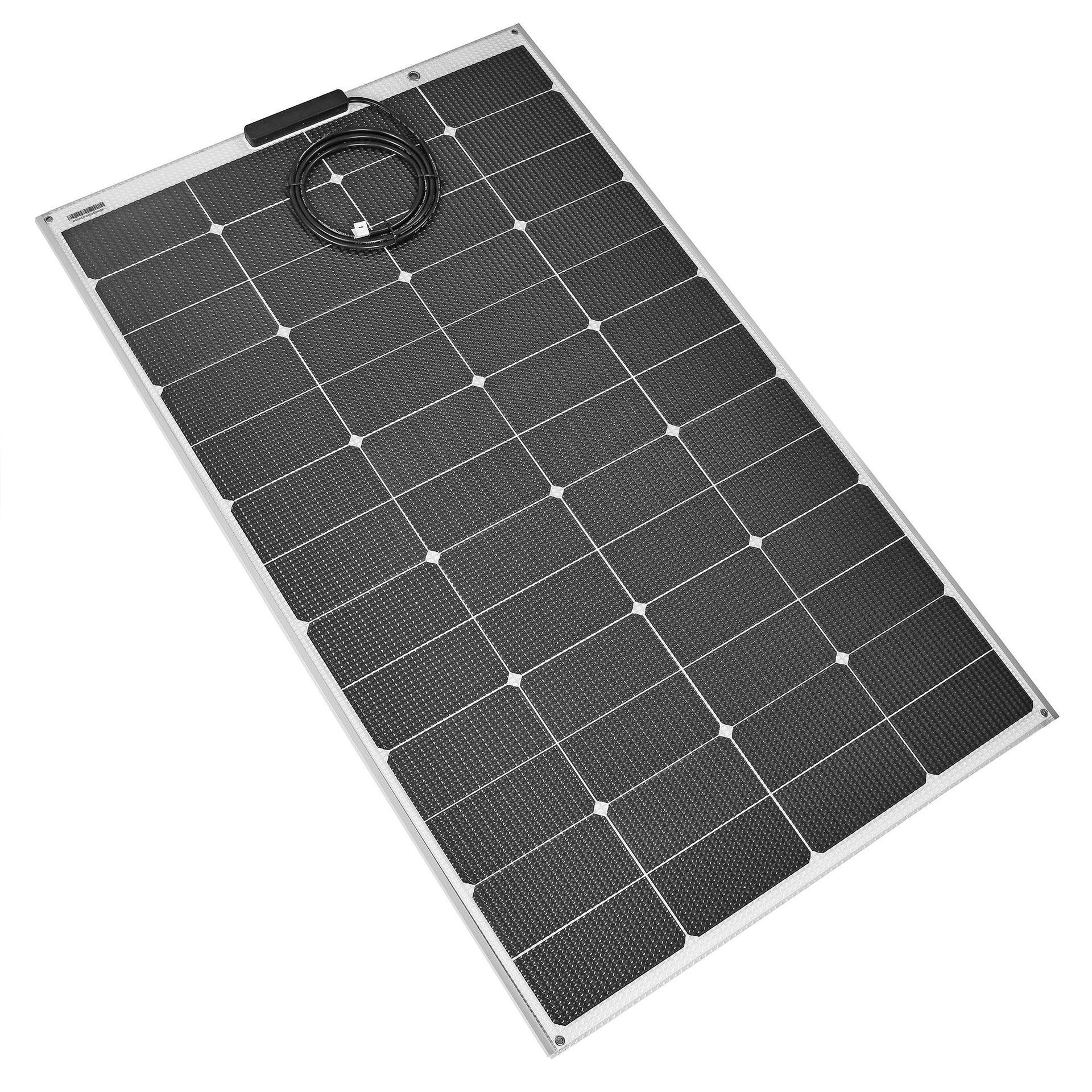

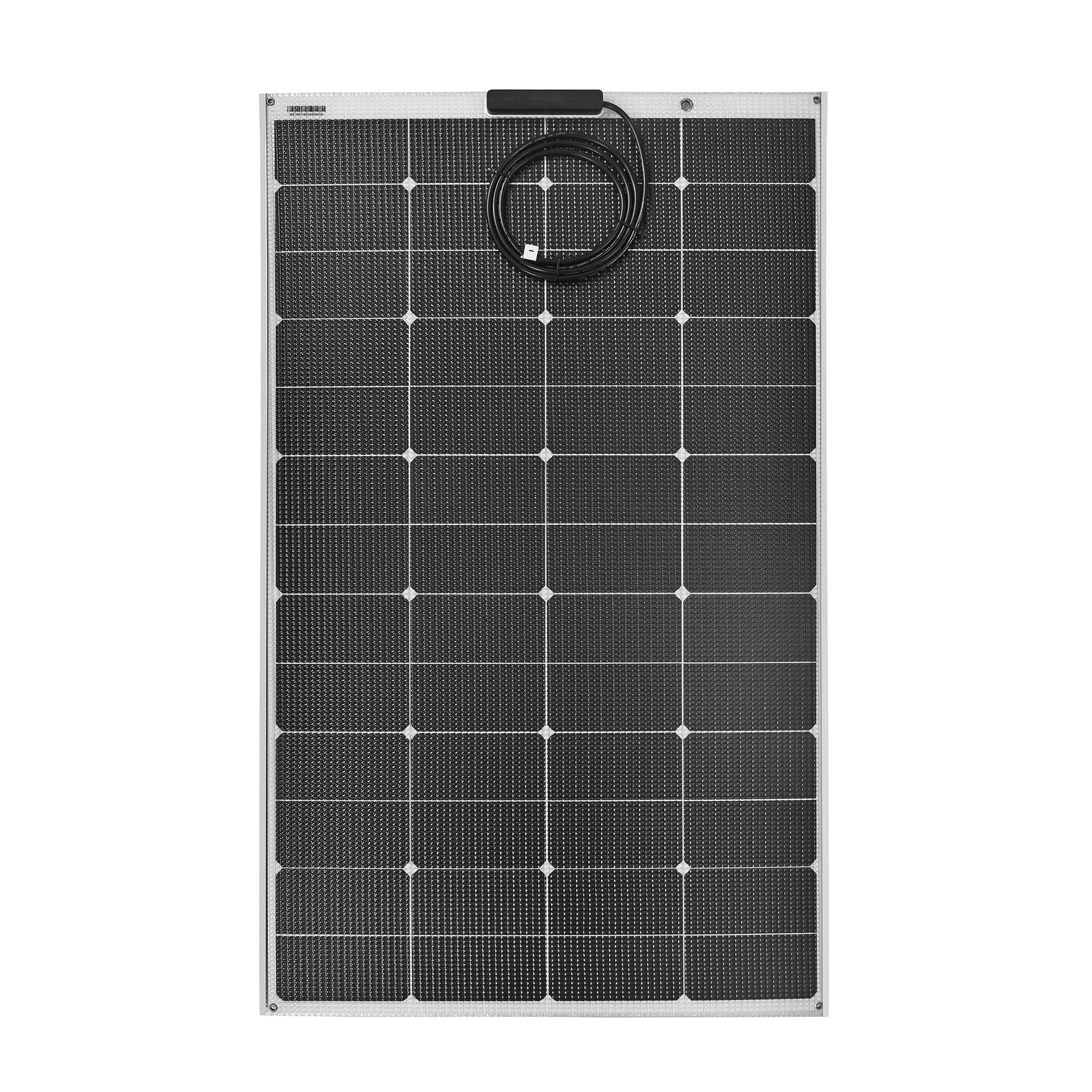

165 Watt Walkable Semi Rigid Solar Panel with Polycarbonate & J-Mount Brackets - Sunpower A+ Grade 24.4% Efficient Cells - 166 Cell

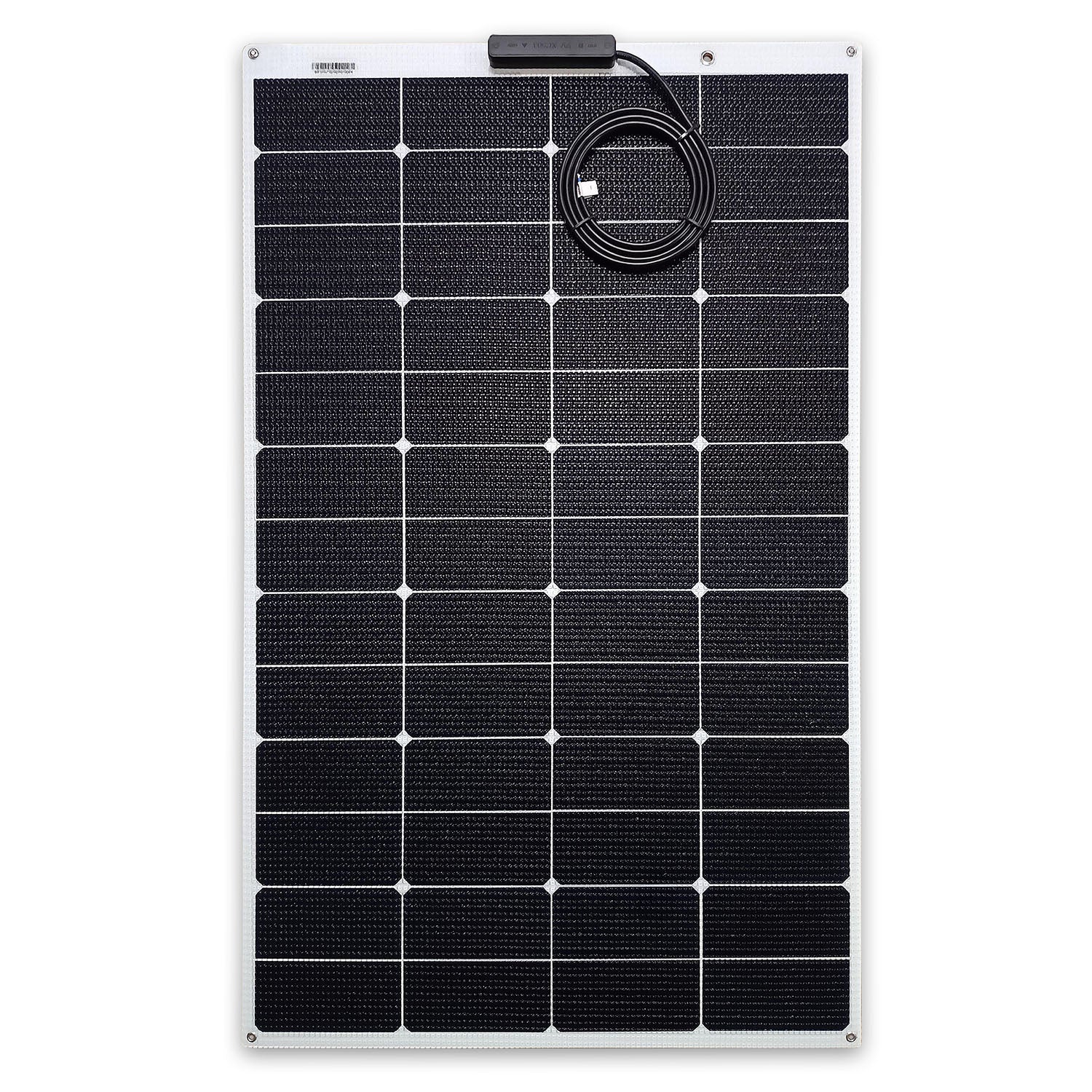

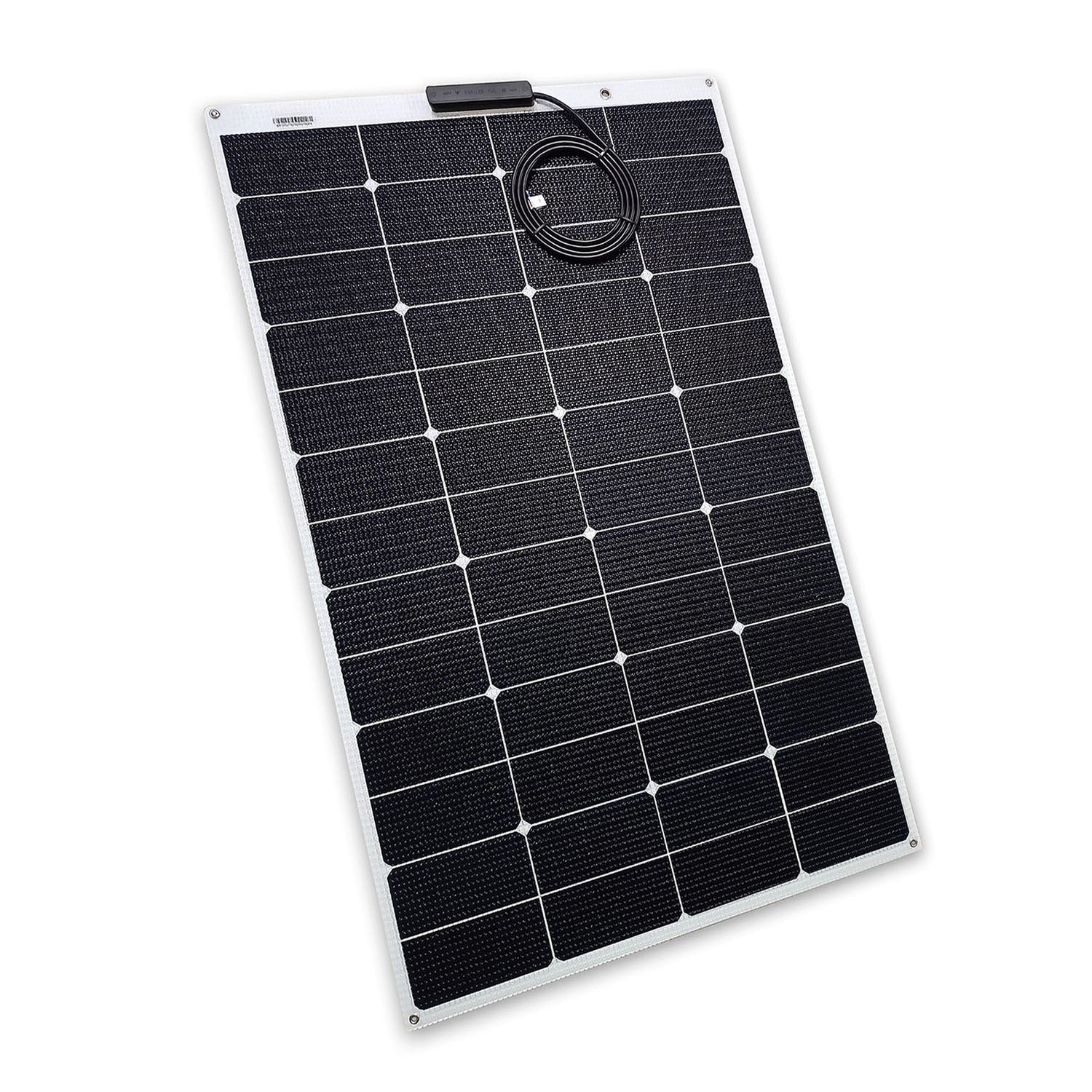

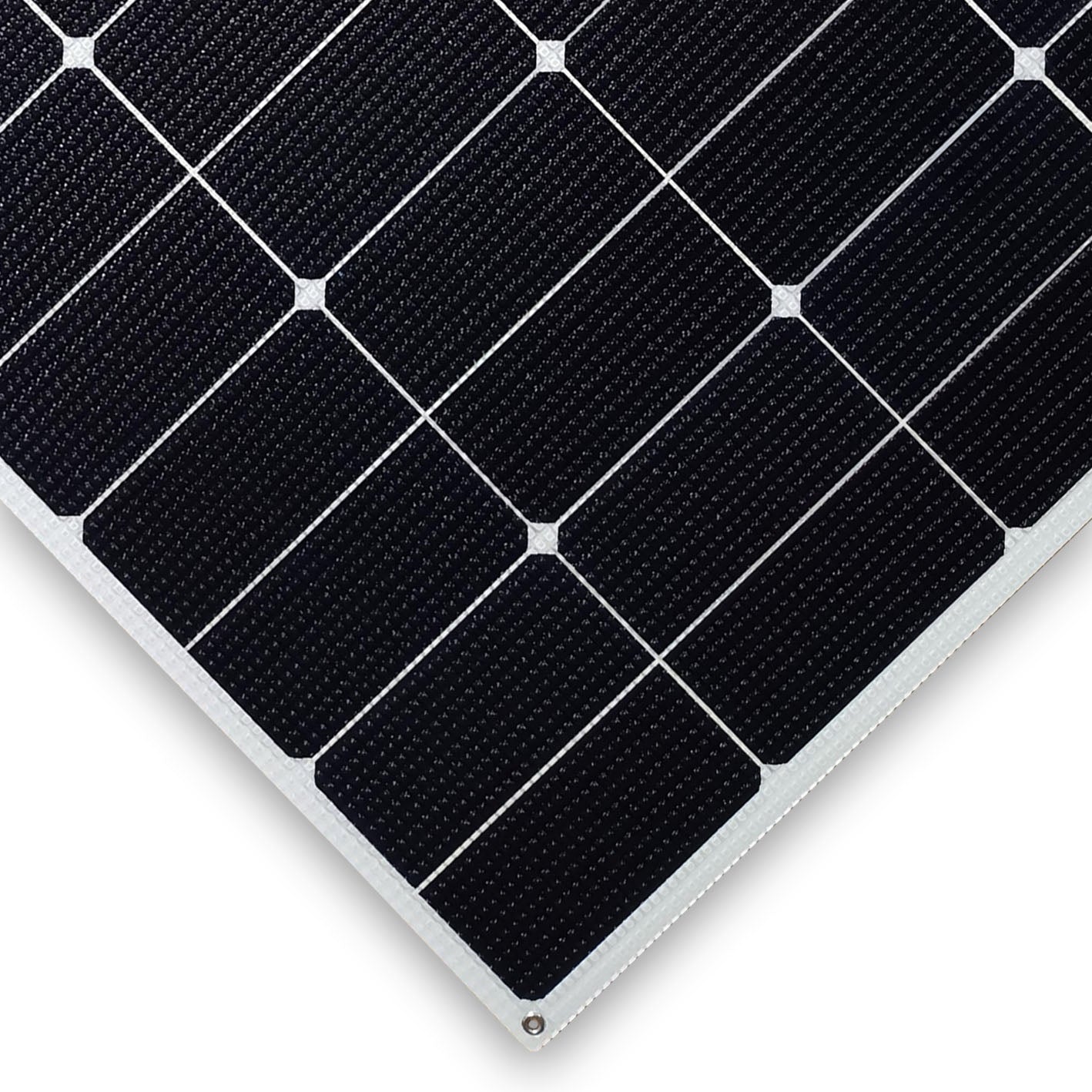

165 Watt Walkable Semi-Rigid Solar Panel supplied with polycarbonate backing and J-brackets. It's built with SunPower A+ Grade 24.4% efficient cells for superior performance. Designed for boats, yachts, and vans, this high-efficiency solar panel delivers reliable energy even in partial shade while dissipating heat better for optimal performance in hot climates.
Engineered with a semi-rigid, walkable design, it is durable enough for marine environments yet lightweight for easy installation. Whether you’re powering electronics at sea or extending off-grid adventures, this panel ensures consistent output, rugged durability, and long-term reliability.

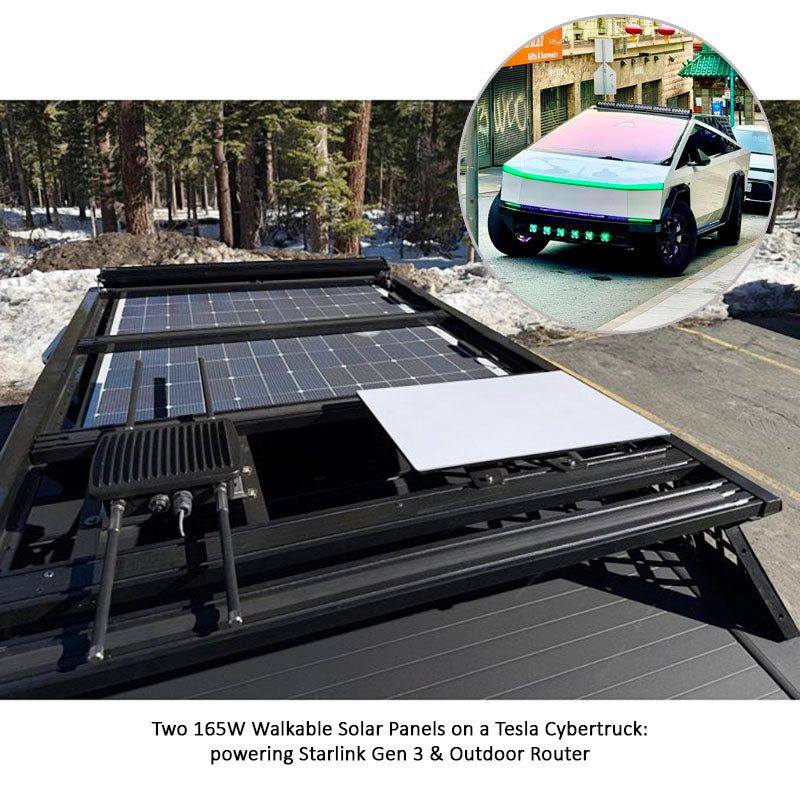

Ideal for mounting on boats, yachts, and camper vans, this panel provides dependable off-grid power for your fridges, lights, electronics, navigation gear, laptops, and more.

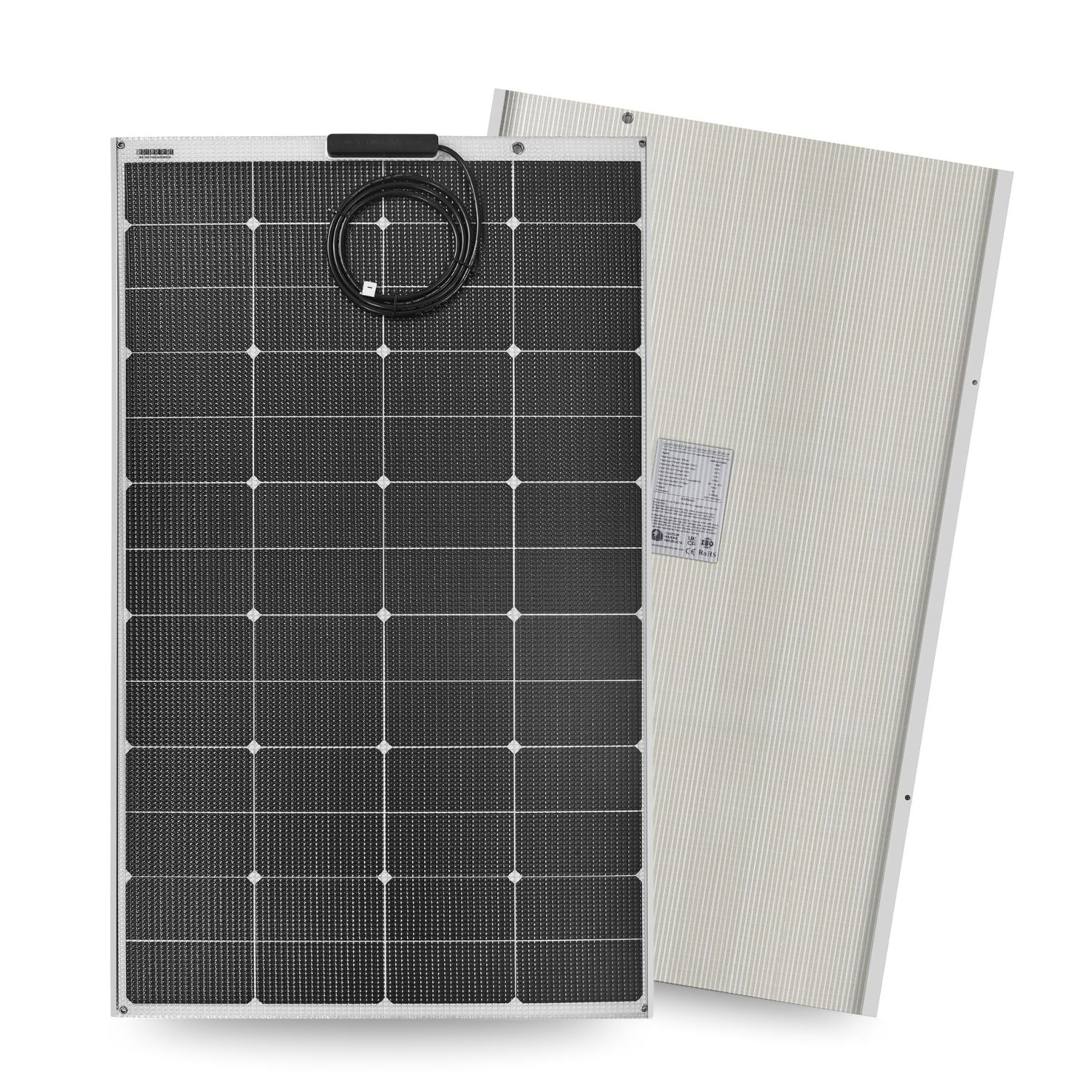

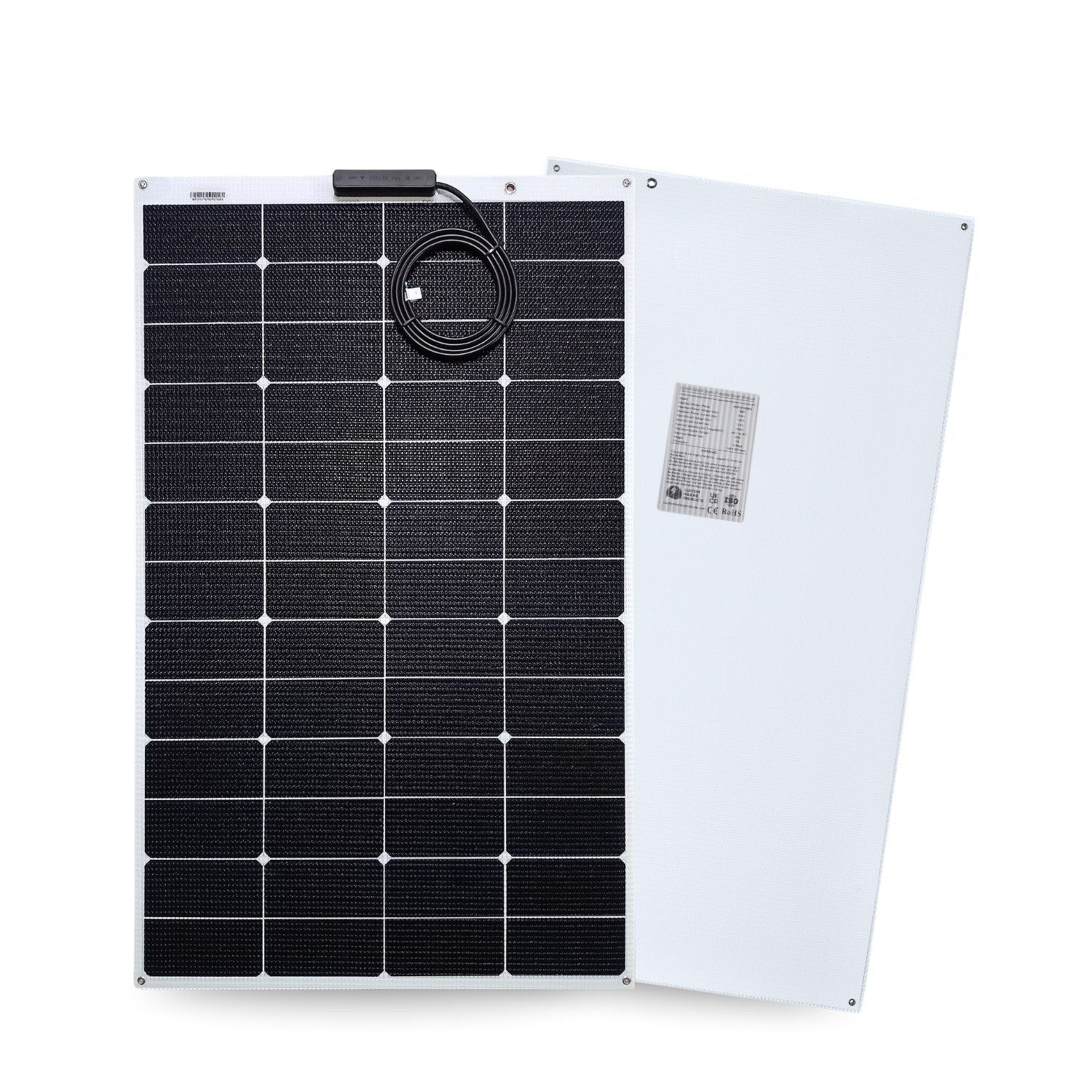

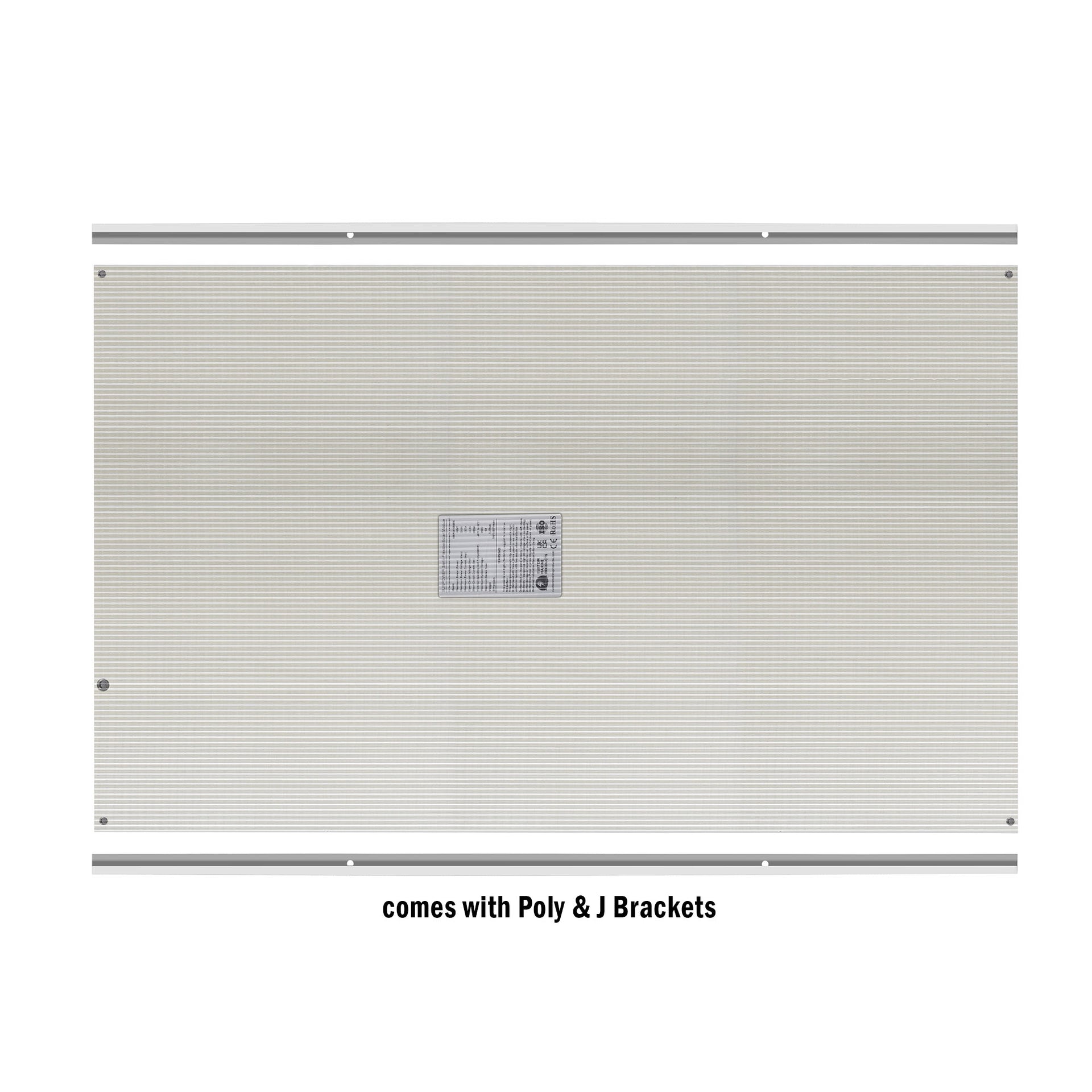

✅ The semi-rigid (walk-on) solar panel kit includes:
- PV solar panel module

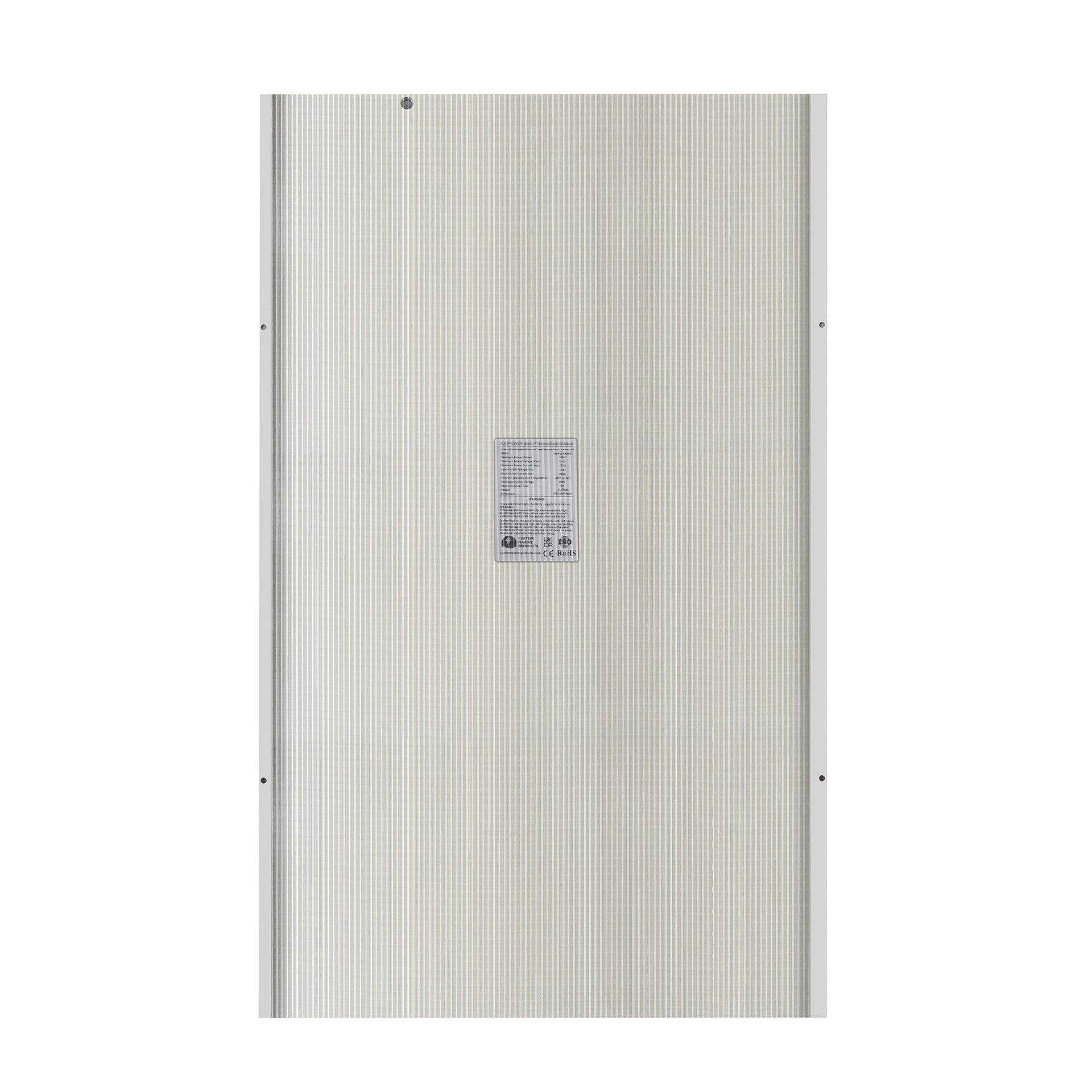

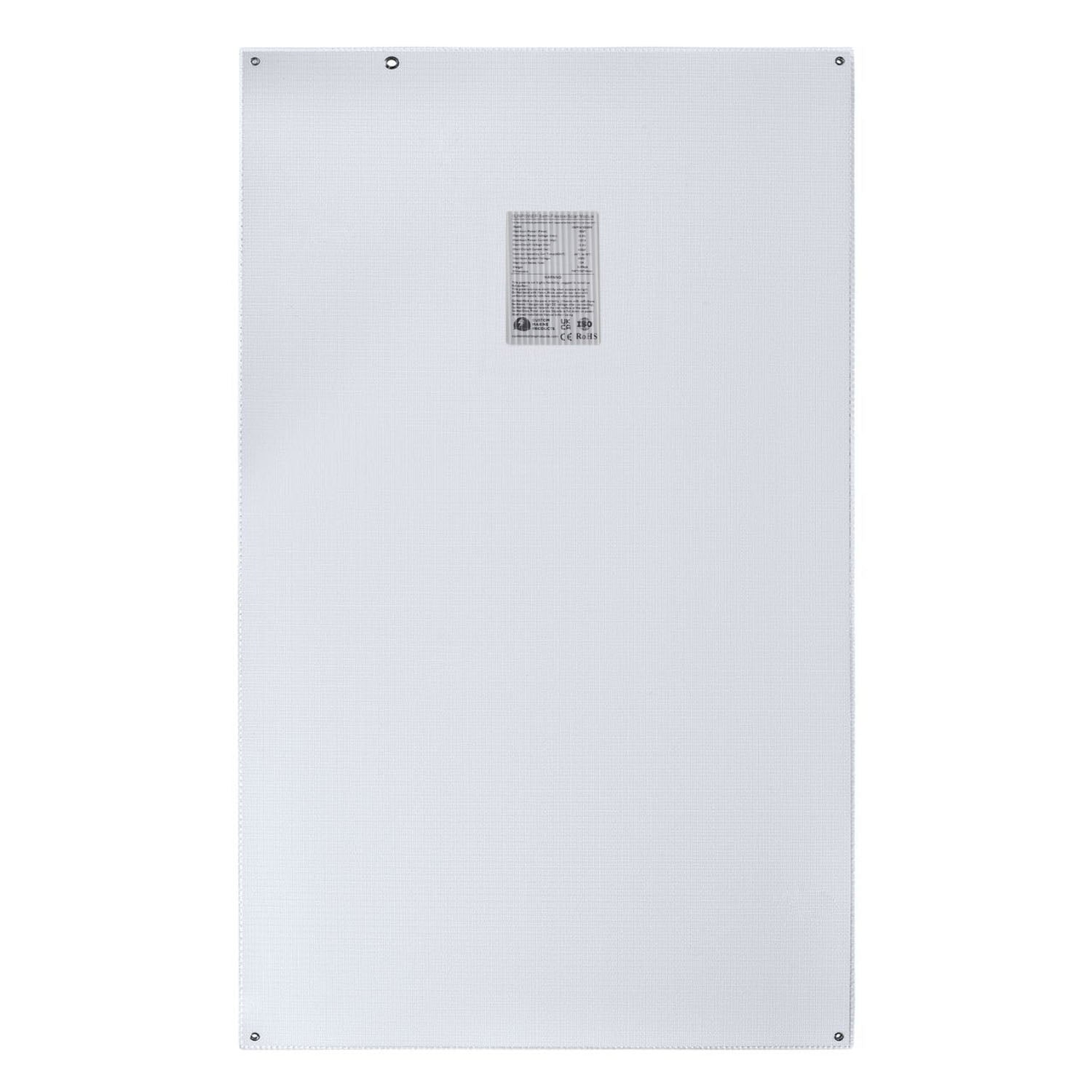

- Sheet of twin wall polycarbonate backing

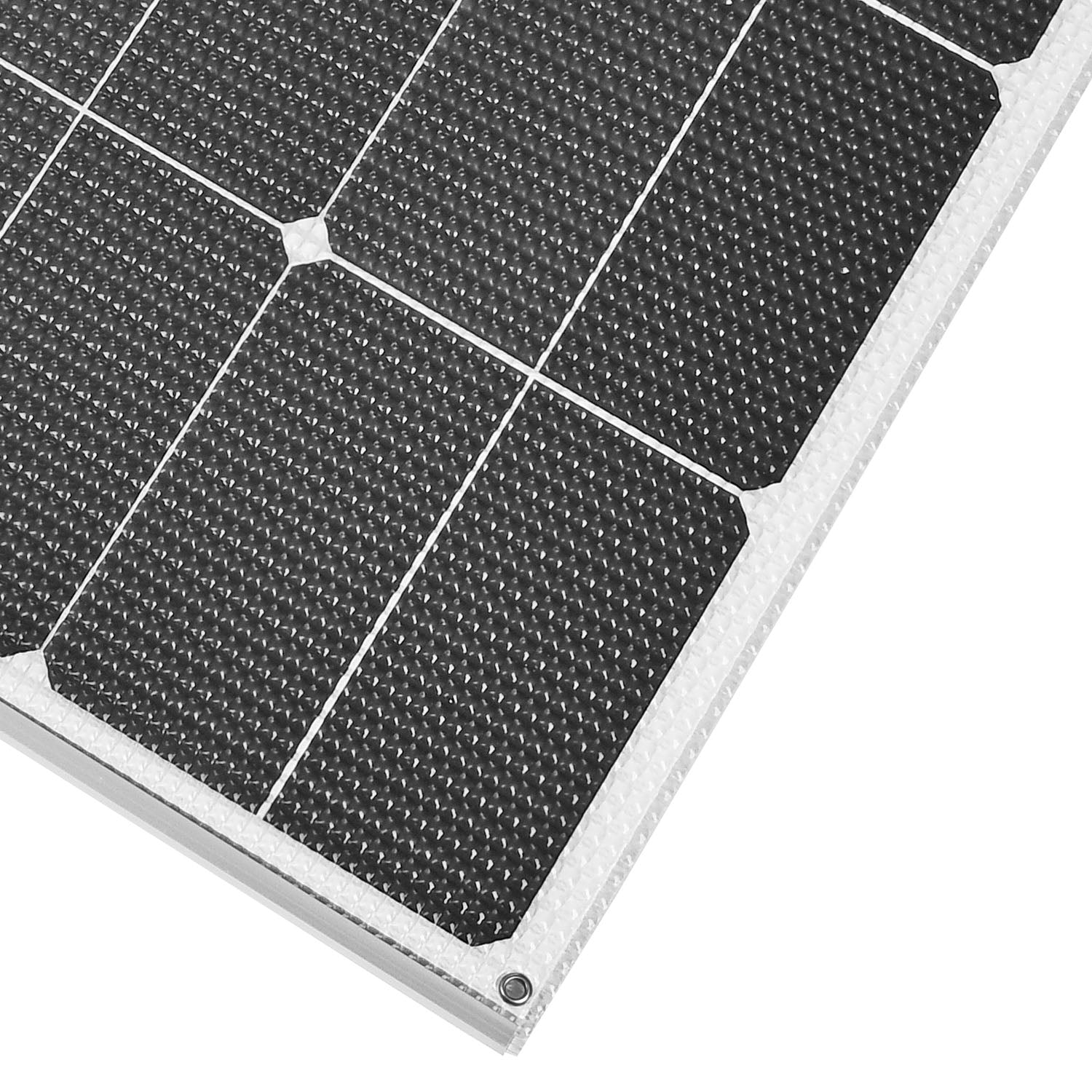

- Two J channel mounting extrusions
- Owner’s Manual
📦 Ships in 1-2 business days with UPS Ground from Denver or Michigan.

⚙️ Key Features
✅ 165W High-Efficiency Power – Delivers strong output using SunPower A+ Grade cells with 24.4% efficiency.
✅ Walkable Semi-Rigid Design – Durable enough to step on, while lightweight for versatile installations.
✅ Shade Tolerant Performance – Generates reliable power even in partial sunlight.
✅ Marine-Grade Durability – Built to withstand harsh saltwater and UV conditions.
✅ Compact & Lightweight – Perfect for boats and vans. Includes Poly and J brackets for secure setup.
✅ Heat Dissipation Advantage – Performs better in hot climates compared to standard panels.
✅ 5-Year Warranty – Backed by reliable long-term protection.
📏 Specifications
| 165 Watt Walkable Semi-Rigid Solar Panel - 166 Cells | |
|---|---|
| 🔧 Model | CMP24165SRX-P |
| ⚡ Rated Power |
165 Watts |
| 🔋 Peak Power Voltage (Vmpp) | 29.6 Volts |
| 🔋 Peak Power Amps (Impp) | 5.6 Amps |
| ⚡ Open Circuit Voltage (Voc) | 35.5 Volts |
| ⚡ Short Circuit Current (Isc) | 6.0 Amps |
| 🌞 Cell Conversion Efficiency | 24.4% |
| 📏 Dimensions | 27.6" x 45.7", 700 x 1160 x 4 mm |
| ⚖️ Weight |
12.1 lbs, 5.5 kgs |
| 🧱 Substrate | Lightweight Fiberglass |
| 🔲 Background Color | White |
| 🧩 Cell Layout | 4 x 13 (13 are half cells) |
| 🛡️ Warranty | 5 years |
ℹ️ Module Loading Considerations
- Semi-rigid and flexible panels can be walked on with anti-slip or flat soft sole shoes.
- Semi-rigid panels and flexible panels can support a concentrated weight (minimum area of 2” x 2”) of up to 180 pounds, with a rigid backing supporting the panel. Avoid sharp objects, chair legs, or high heels on panels — these can crack solar cells. Semi-rigid or flexible panels can support a distributed weight in excess of 180 pounds if the panel has a strong rigid backing.
- Placing heavy objects (such as installation tools) on the surface of the panel during or after installation of the panel is acceptable. Remove all obstructions once panels are installed.
- Do not walk on panels that are installed on uneven surfaces.
- Do not apply excessive loads on the corners of the panel.
🎥 Unboxing Our Walkable Solar Panel
See what comes with our Walkable Solar Panel, including J brackets and polycarbonate backing for a complete, ready-to-use solar setup. Also, learn how CMP’s shade-tolerant design keeps power flowing even when parts of the panel are shaded. This advanced technology ensures reliable solar performance for boats, vans, and off-grid systems.
600 watts of WALKABLE Solar Panels on Van Roof
CMPower Walkable Solar Panels Installation on Catamaran
Best Mounting System for Your Walkable Solar Panels
