120 Watt Rigid Marine Solar Panel - Sunpower A+ Grade 24.4% Efficient Cells
Ideal for Top-of-Pole, Arch & Davit Mounts
Get reliable off-grid power on the water with our 120 Watt Rigid Marine Solar Panel, designed using premium SunPower A+ Grade monocrystalline solar cells for an outstanding 24.4% efficiency rate — among the highest available today.
This marine-grade solar panel will perform extremely well in both full and partial sun, making it perfect for boats, yachts, and sailboats operating under varied weather conditions. Built to withstand saltwater, UV exposure, and vibration, it’s crafted with corrosion-resistant aluminum framing and tempered glass for long-term durability in harsh marine environments.
Ideal for 12V systems, this 120W rigid panel is perfectly suited for top-of-pole, arch, or dinghy davit mounting, providing a steady charge to batteries for navigation systems, lighting, and onboard electronics.
✅ Ships Next Day UPS Ground from Denver or Michigan.
Key Features
⚡ High Efficiency Output – SunPower A+ Grade monocrystalline cells deliver superior power density and performance.
⚡ Marine-Grade Durability – Rigid aluminum frame and tempered glass construction resist saltwater corrosion and impact.

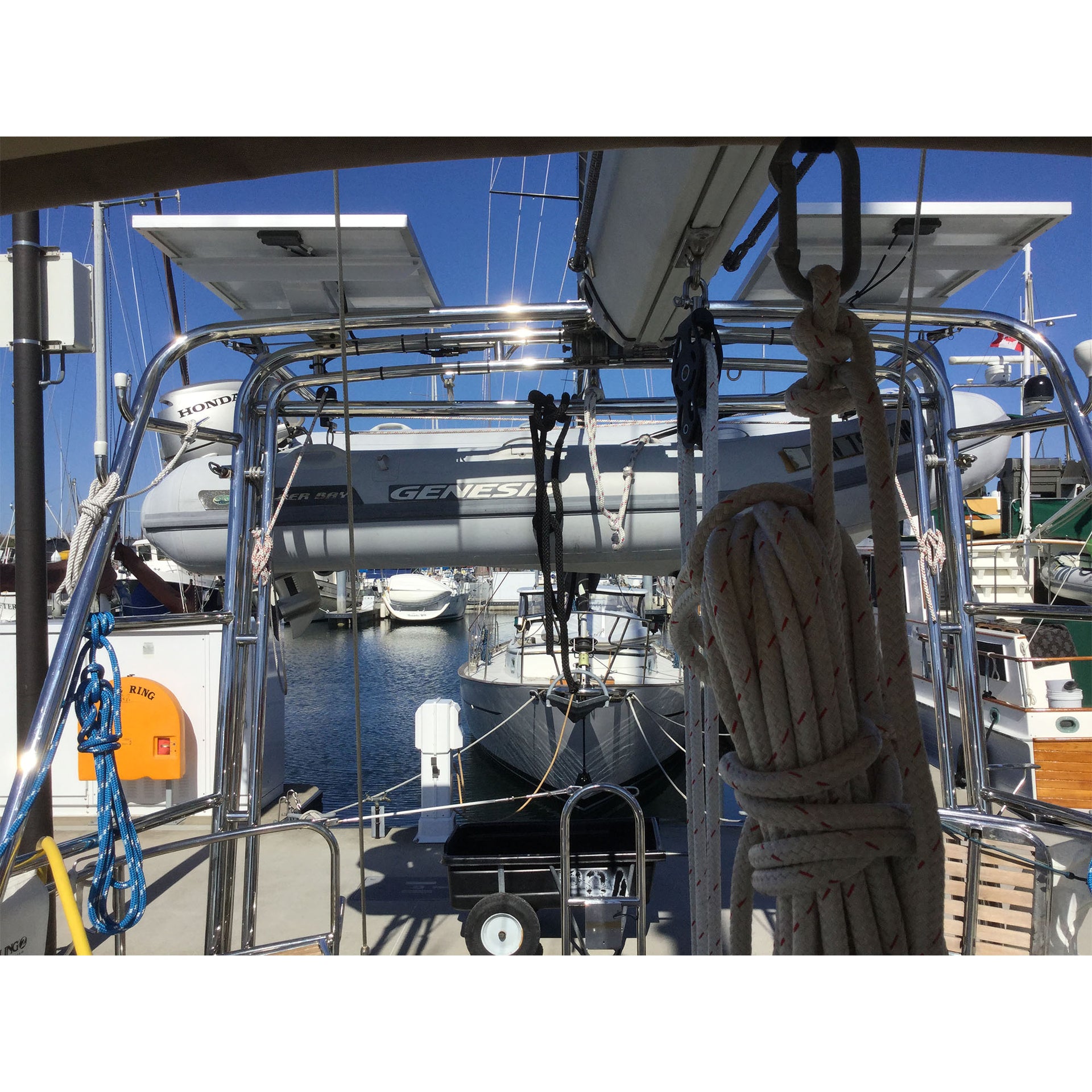

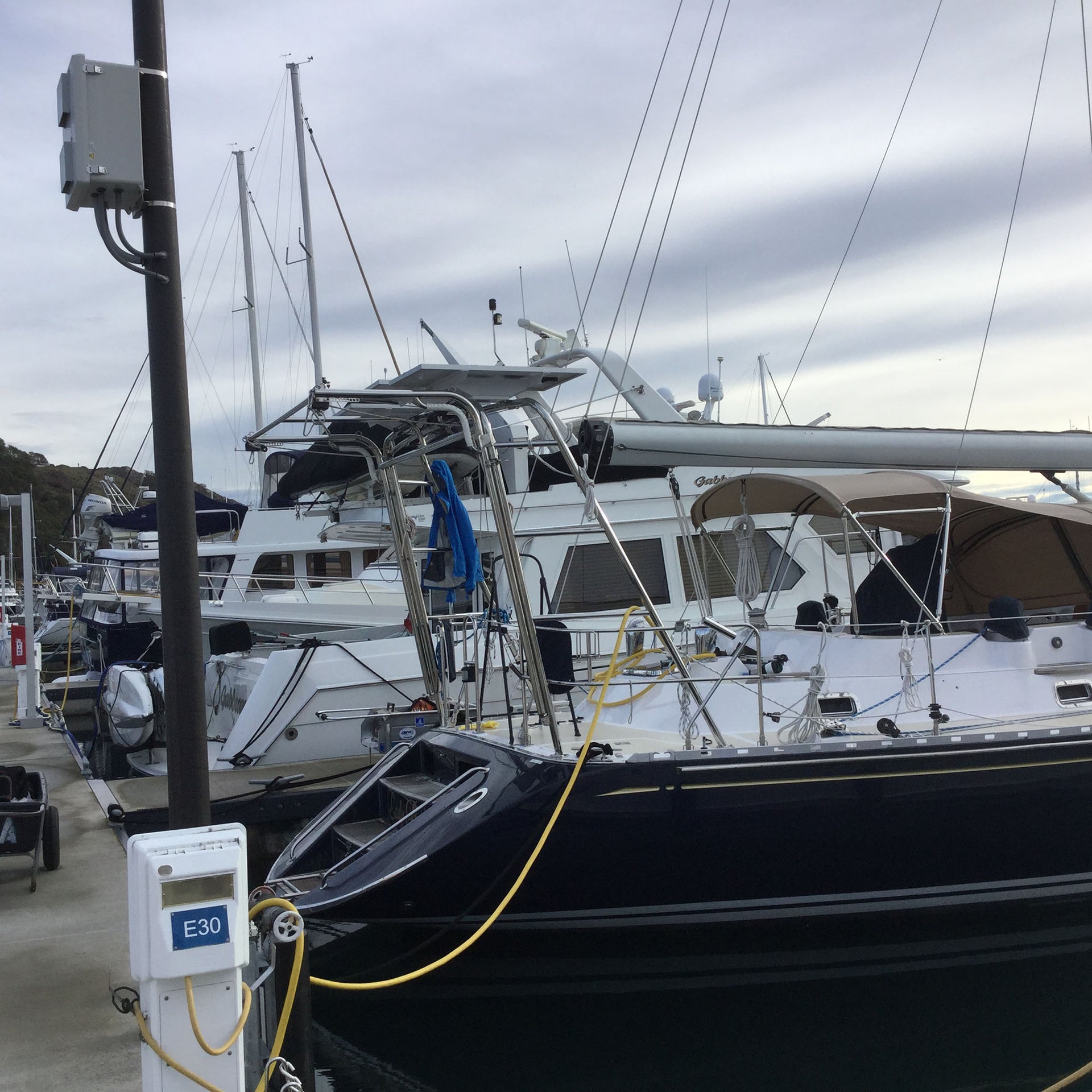

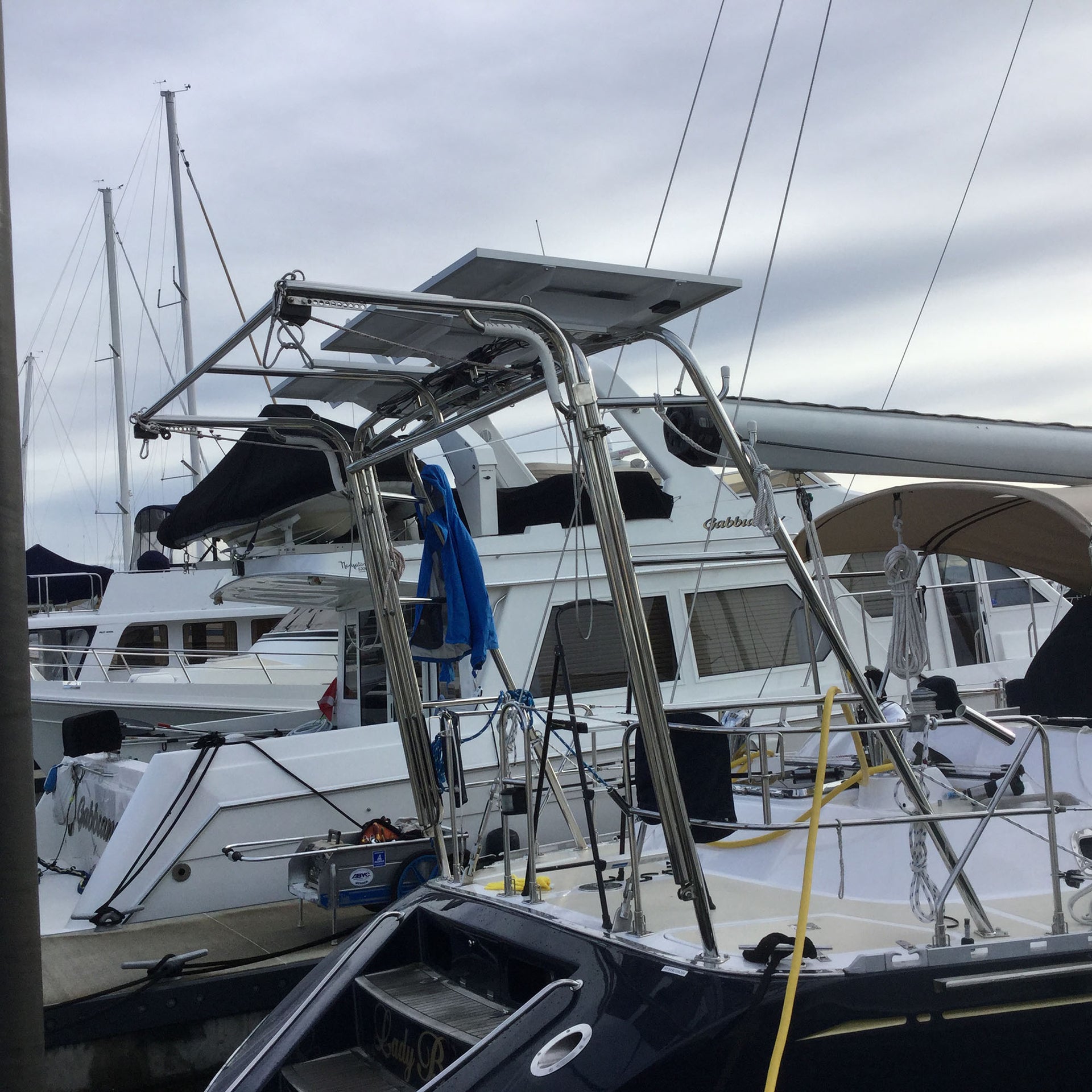

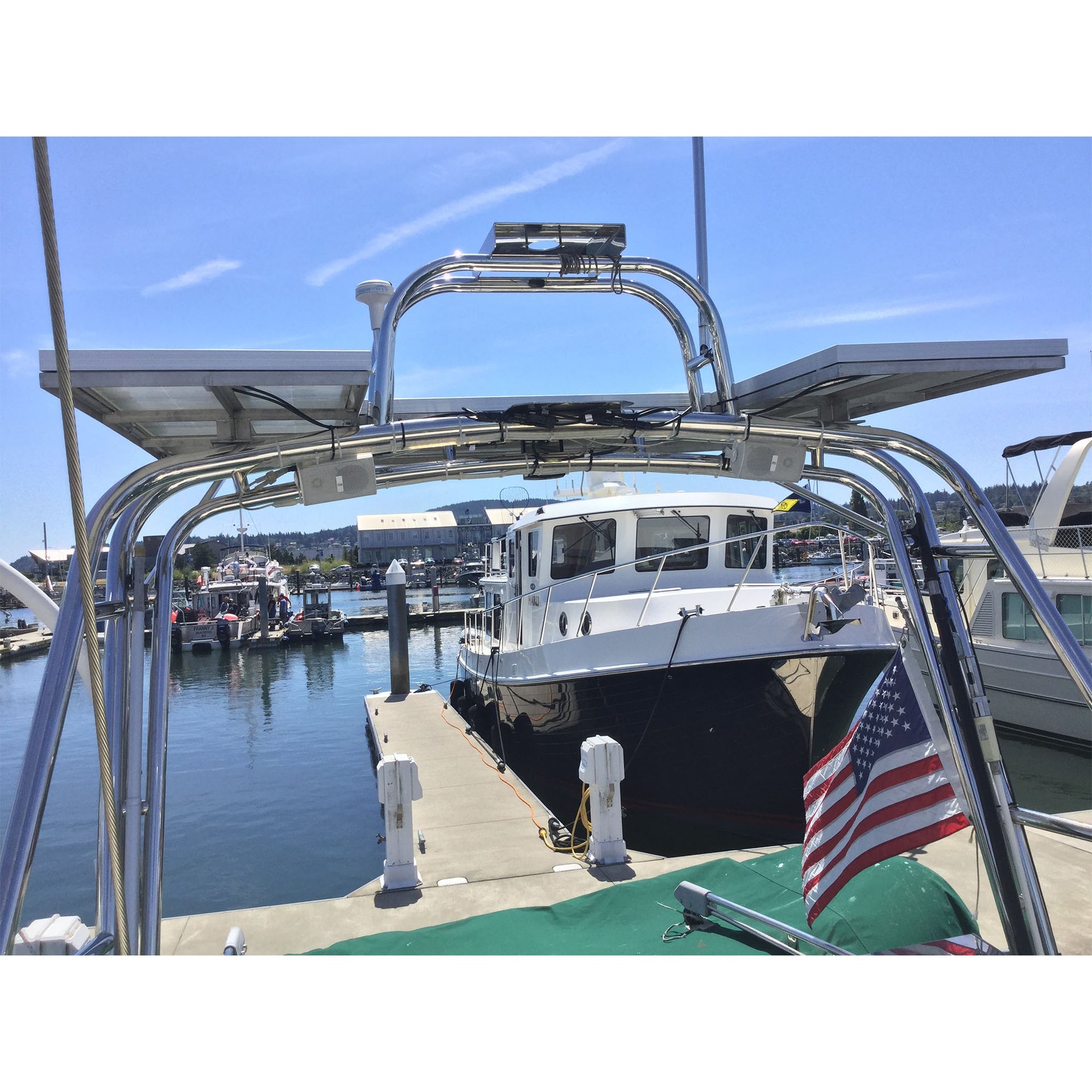

⚡ Versatile Mounting Options – Designed for top-of-pole, arch, or dinghy davit mounting on boats and yachts.
⚡ Perfect for 12V Battery Systems – Efficient charging for off-grid marine and RV applications.

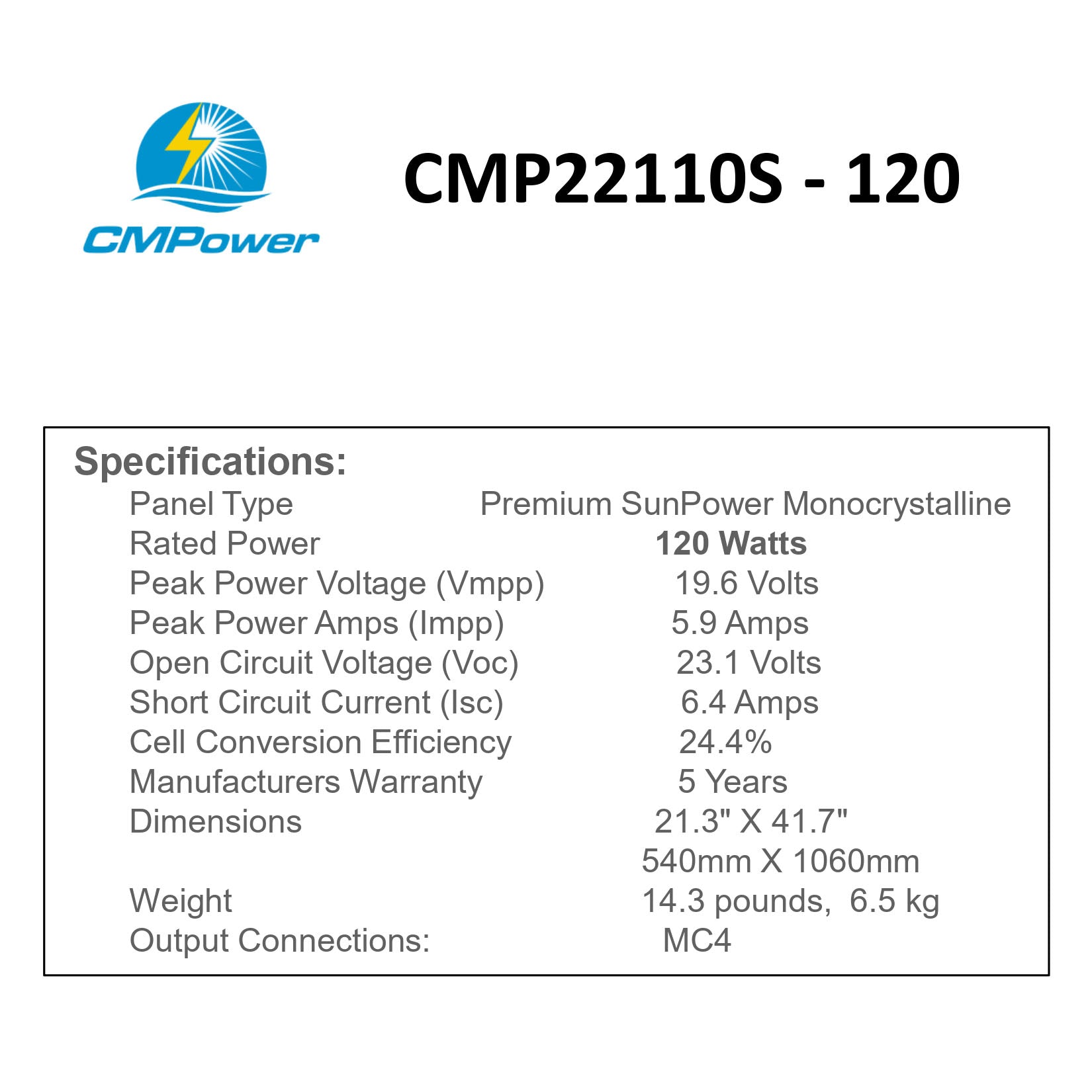

Specifications
| 120 Watt Rigid Marine Solar Panel | |
|---|---|
| 🔧 Model | CMP22110S-120 |
| ⚡ Rated Power |
120 Watts |
| 🔋 Peak Power Voltage (Vmpp) | 19.6 Volts |
| 🔋 Peak Power Amps (Impp) | 6.1 Amps |
| ⚡ Open Circuit Voltage (Voc) | 23.1 Volts |
| ⚡ Short Circuit Current (Isc) | 6.5 Amps |
| 🌞 Cell Conversion Efficiency | 24.4% |

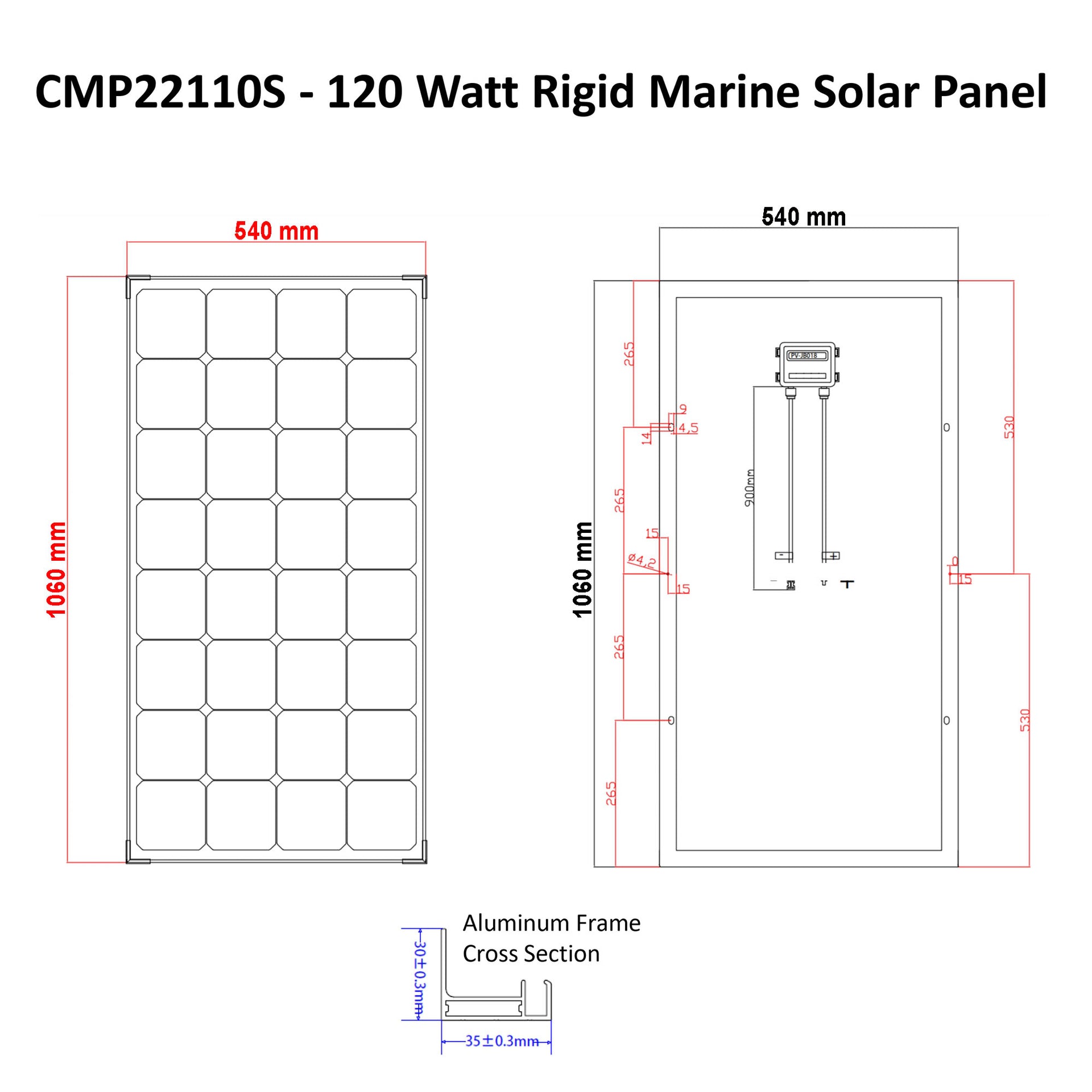

| 📏 Dimensions | 21.3" x 41.7", 540mm x 1060mm |
| ⚖️ Weight |
14.3 lbs, 6.5 kgs |
| 🔲 Background Color | White |
| 🧩 Cell Layout | 4 x 8 |
| 🛡️ Warranty | 5 years |
