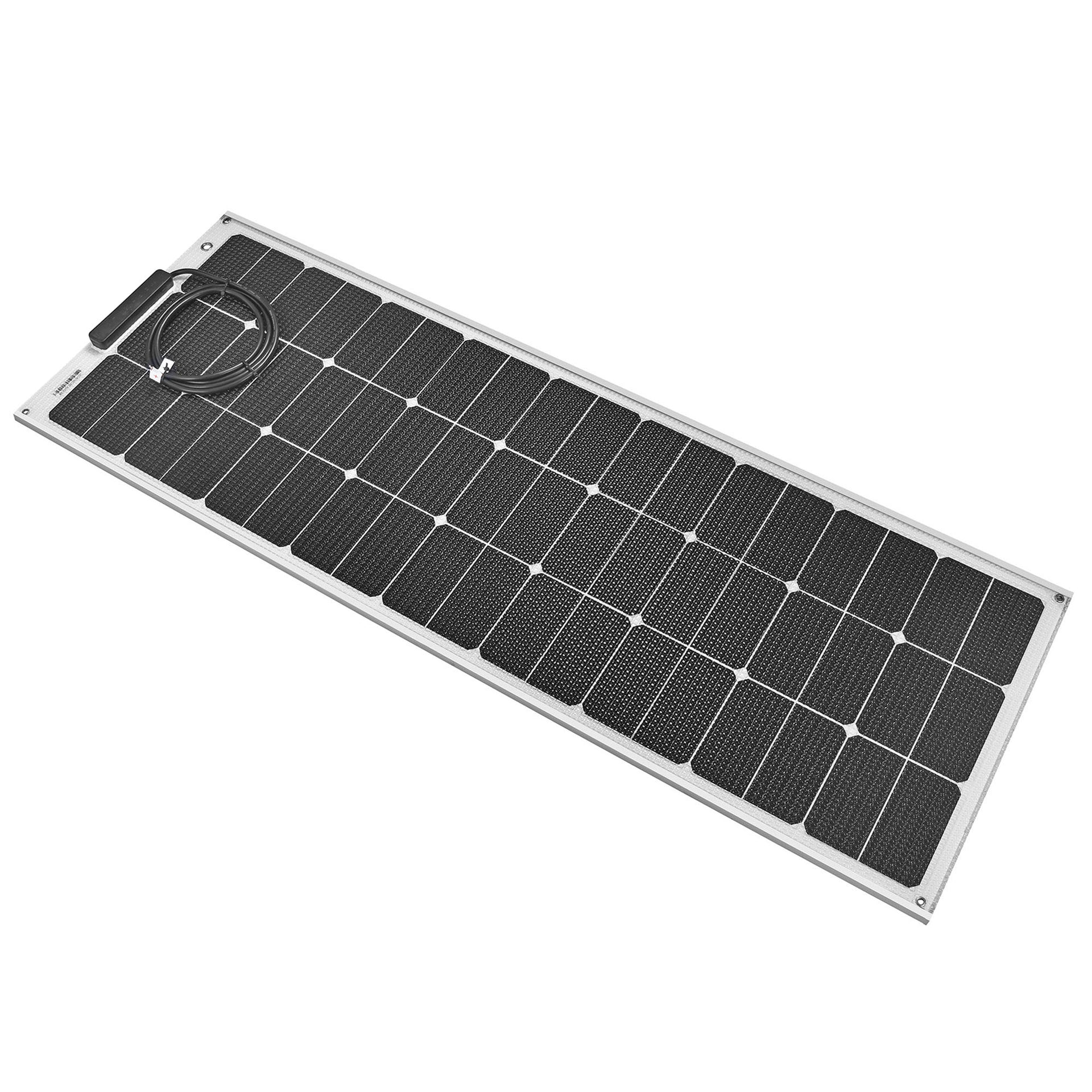

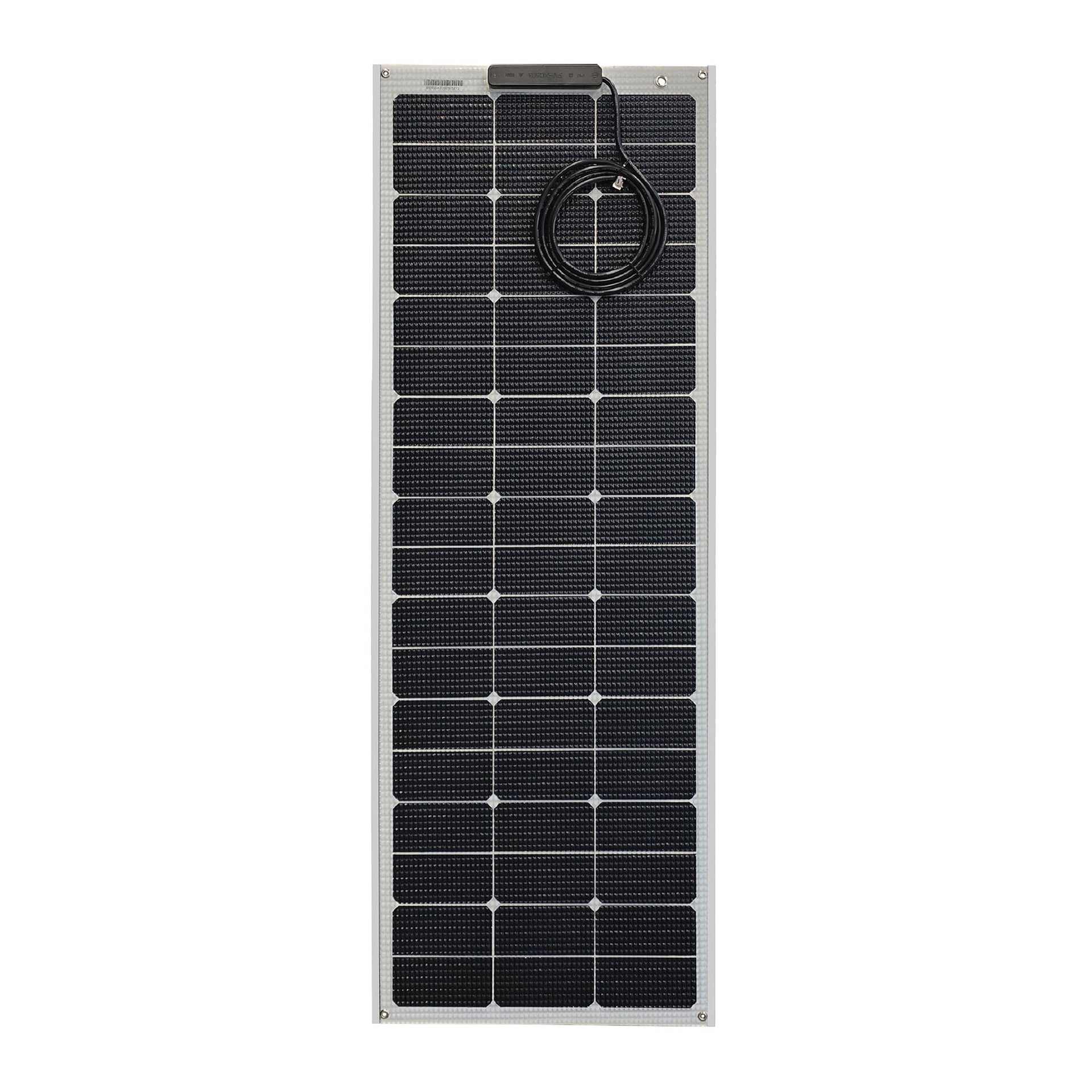

100 Watt Walkable Semi Rigid Shade Tolerant Solar Panel with Polycarbonate & J-Mount Brackets - Sunpower A+ Grade 24.4% Efficient Cells

Built for Boats and Vans. Engineered for Performance.

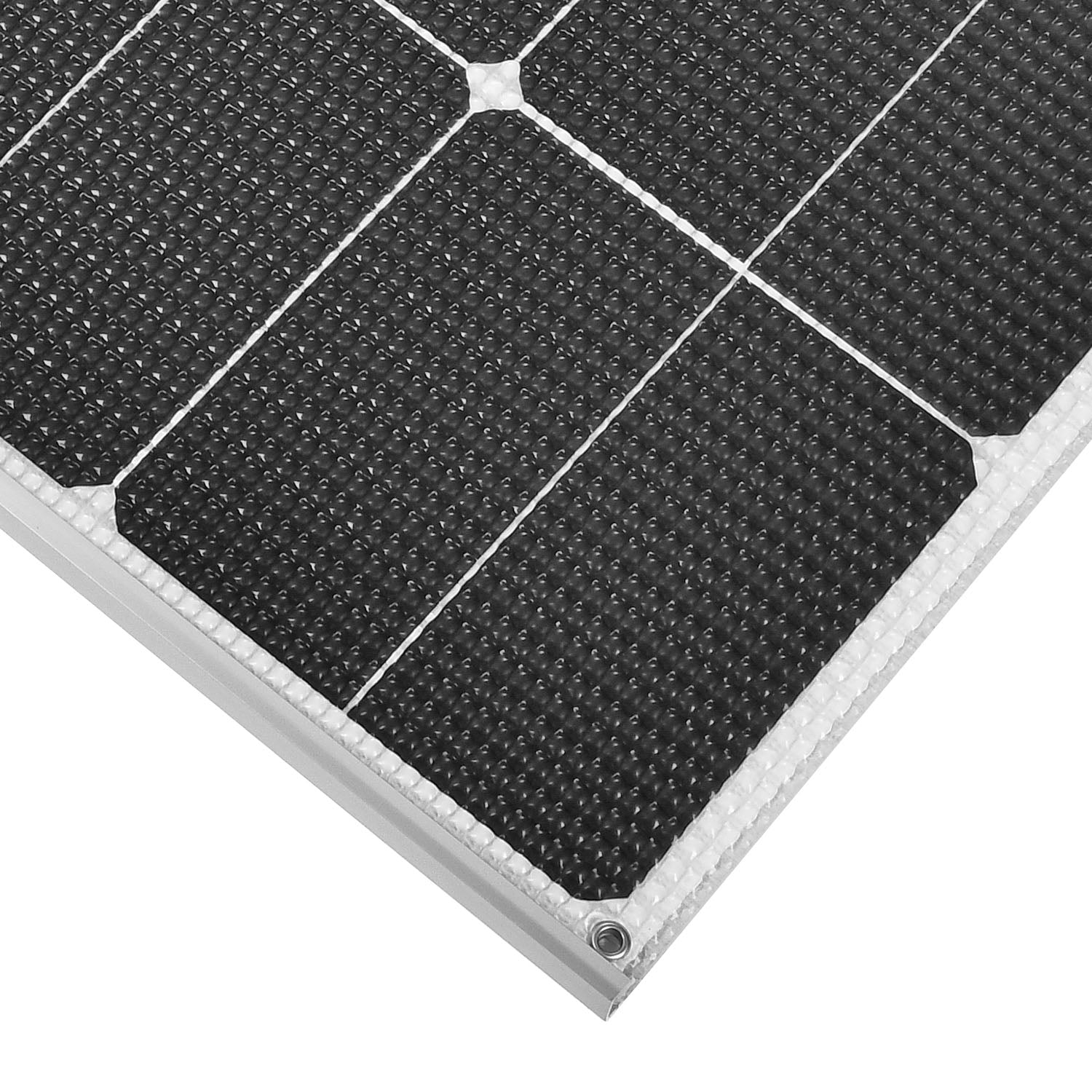

CMPower’s 100 Watt Walkable Semi-Rigid Shade-Tolerant Solar Panel supplied with polycarbonate backing and J-brackets. Crafted with SunPower® A+ grade Maxeon cells (24.4% efficiency), this panel perform extremely well in both full and partial sun, ensuring consistent energy on the water or the road. Its semi-rigid design allows it to be safely walked on when properly supported. The upside is they dissipate heat well and thus perform better in hot climates. Designed for marine durability, it thrives on boat decks, van roofs, racks, and other high-demand environments.
Ideal for mounting on boats, yachts, and camper vans, this panel provides dependable off-grid power for your fridges, lights, electronics, navigation gear, laptops, and more.

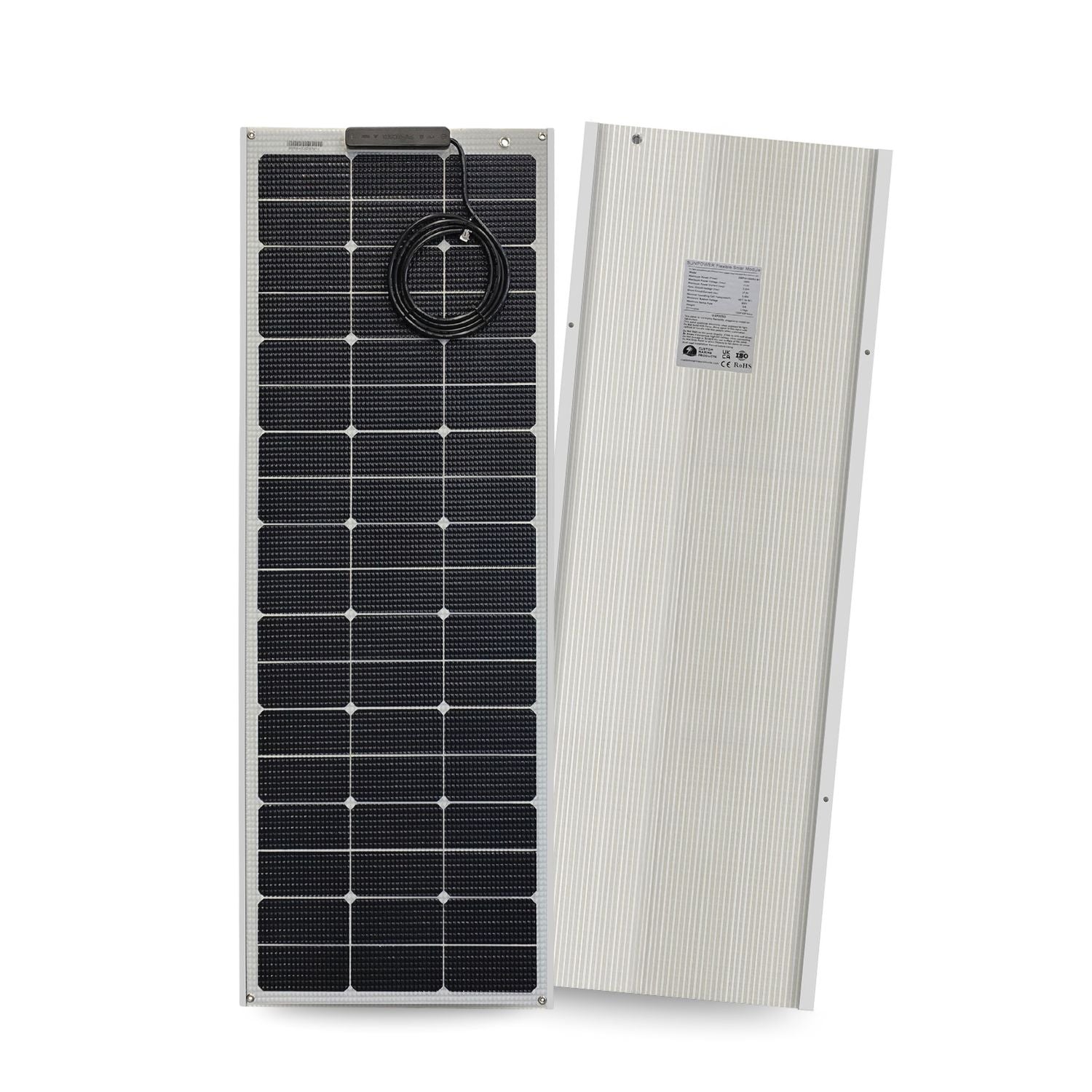

✅ The semi-rigid (walk-on) solar panel kit includes:
- PV solar panel module

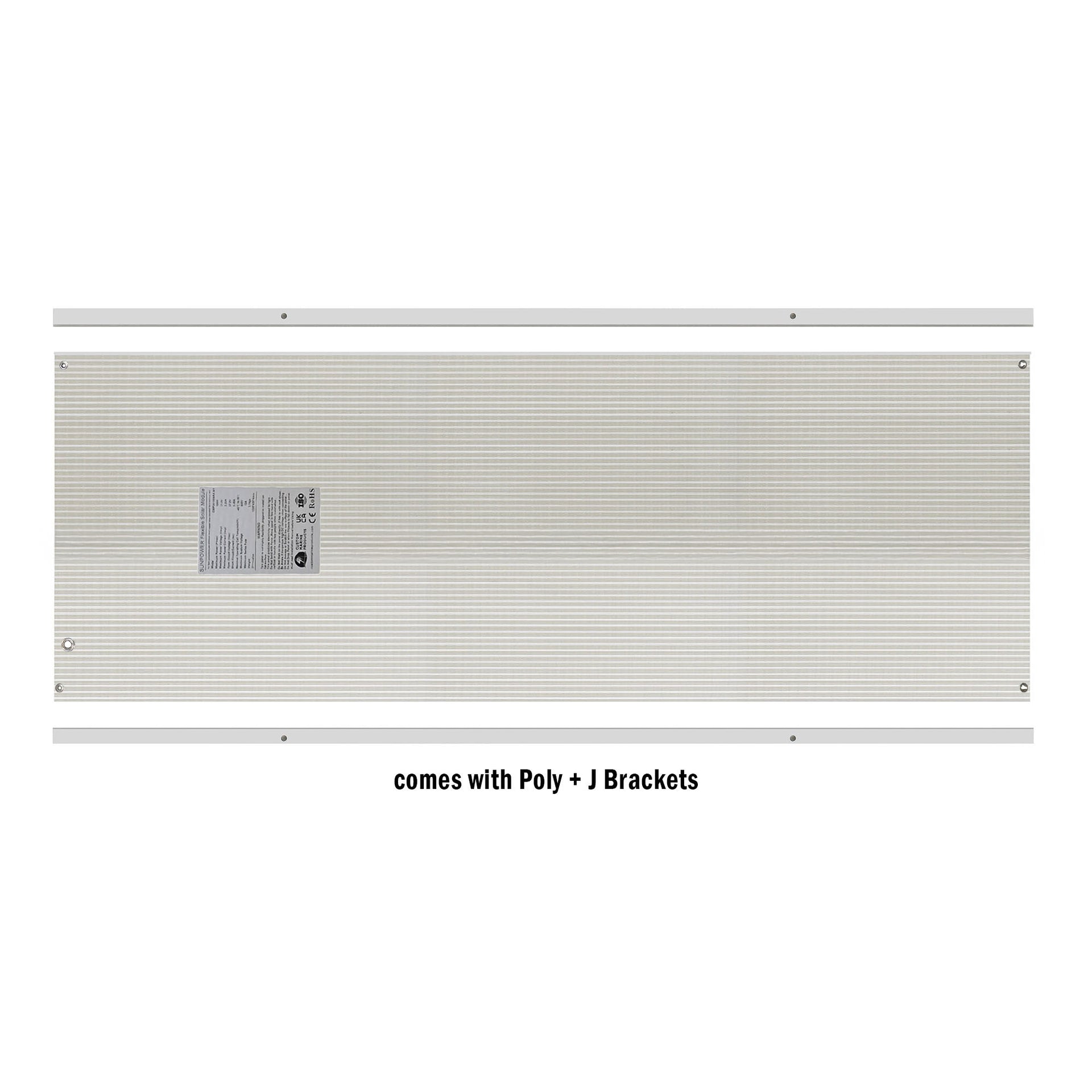

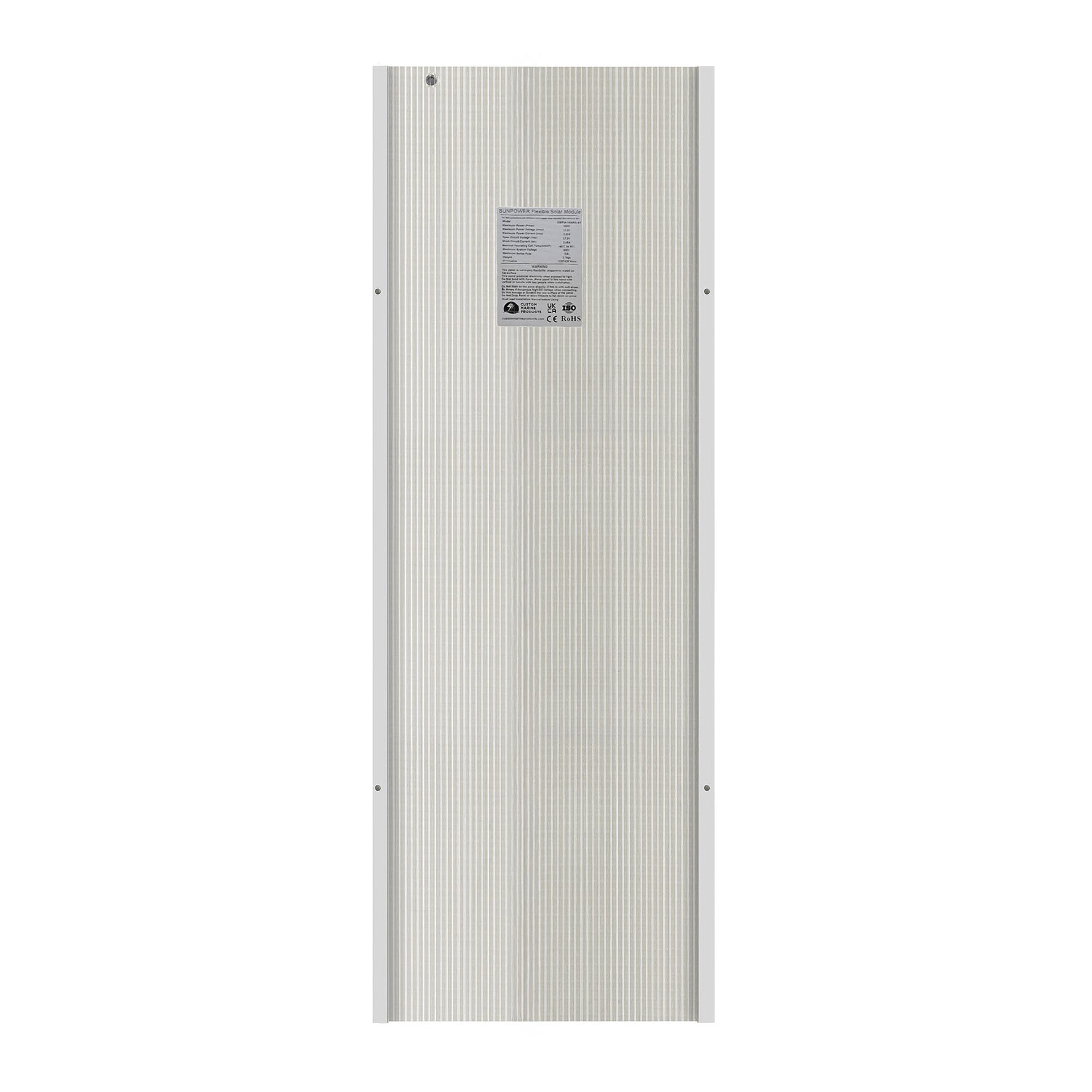

- Sheet of twin wall polycarbonate backing
- Two J channel mounting extrusions
- Owner’s Manual
📦 Ships in 1-2 business days with UPS Ground from Denver or Michigan.

Key Features
🚤 Walkable Marine Design – Built to handle light foot traffic; perfect for solid decks, docks, or van roofs.
🌤 Shade-Tolerant Power – Keeps generating electricity even when sections are shaded, ideal for boats with rigging shadows.
☀️ SunPower® A+ Maxeon Cells – Industry-leading 24.4% efficiency for maximum power in minimal space.
🔥 Heat Dissipation Advantage – Performs better in hot climates thanks to its semi-rigid, heat-dispersing surface.
🛡 Marine-Grade Durability – Saltwater-resistant construction ensures years of reliable use at sea.

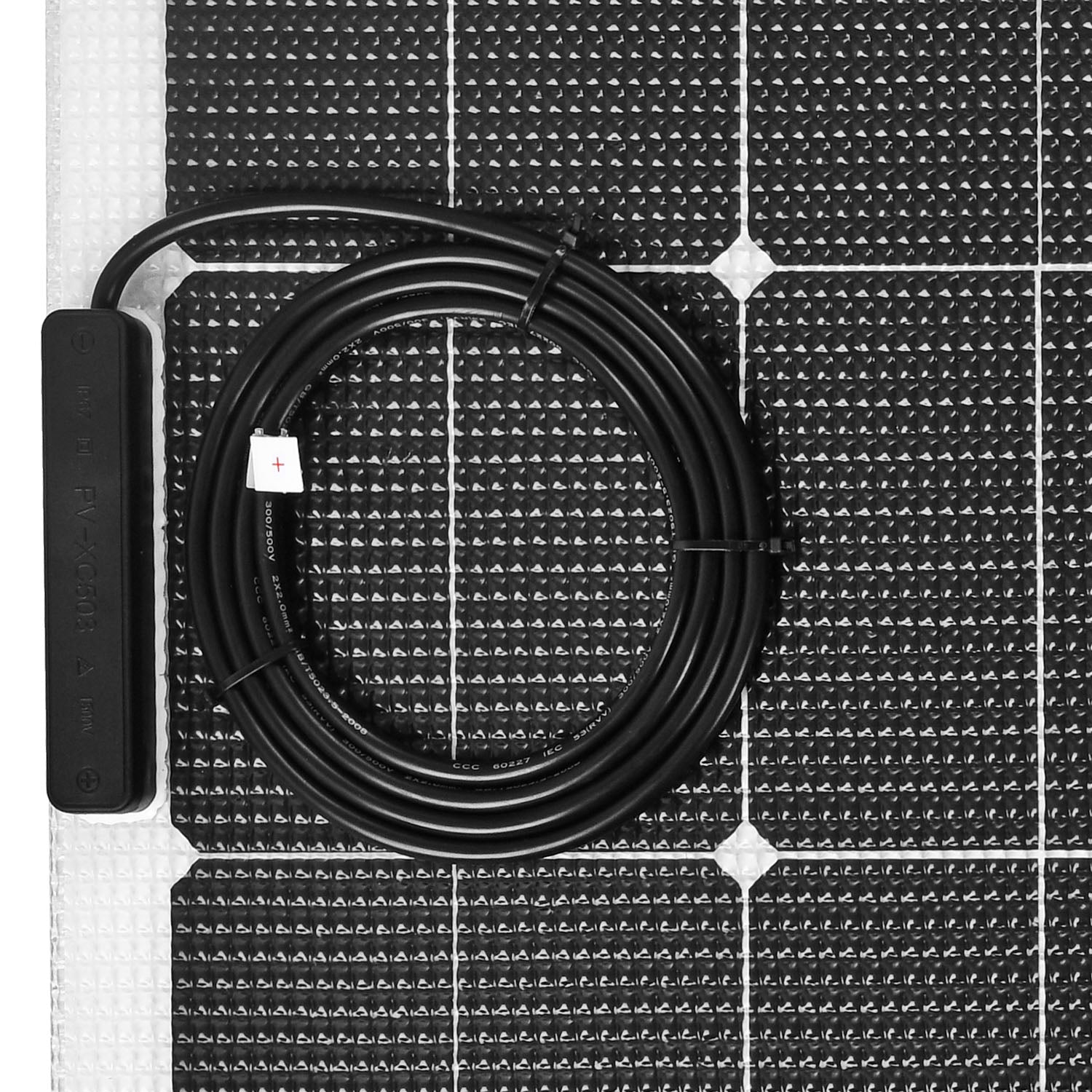

🔌 Easy Installation – Includes MC4 connectors and mounting grommets; compatible with bolt or magnet kits.
Specifications
| 100 Watt Walkable Semi Rigid Shade Tolerant Solar Panel | |
|---|---|
| 🔧 Model | CMP24100SRX-STP |
| ⚡ Rated Power |
100 Watts |
| 🔋 Peak Power Voltage (Vmpp) | 31.0 Volts |
| 🔋 Peak Power Amps (Impp) | 3.5 Amps |
| ⚡ Open Circuit Voltage (Voc) | 37.2 Volts |
| ⚡ Short Circuit Current (Isc) | 3.5 Amps |
| 🌞 Cell Conversion Efficiency | 24.4% |
| 📏 Dimensions | 16.5" x 48", 420 x 1220 x 4 mm |
| ⚖️ Weight |
6.8 lbs, 3.1 kgs |
| 🧱 Substrate |
Lightweight Fiberglass |
| 🔲 Background Color | White |

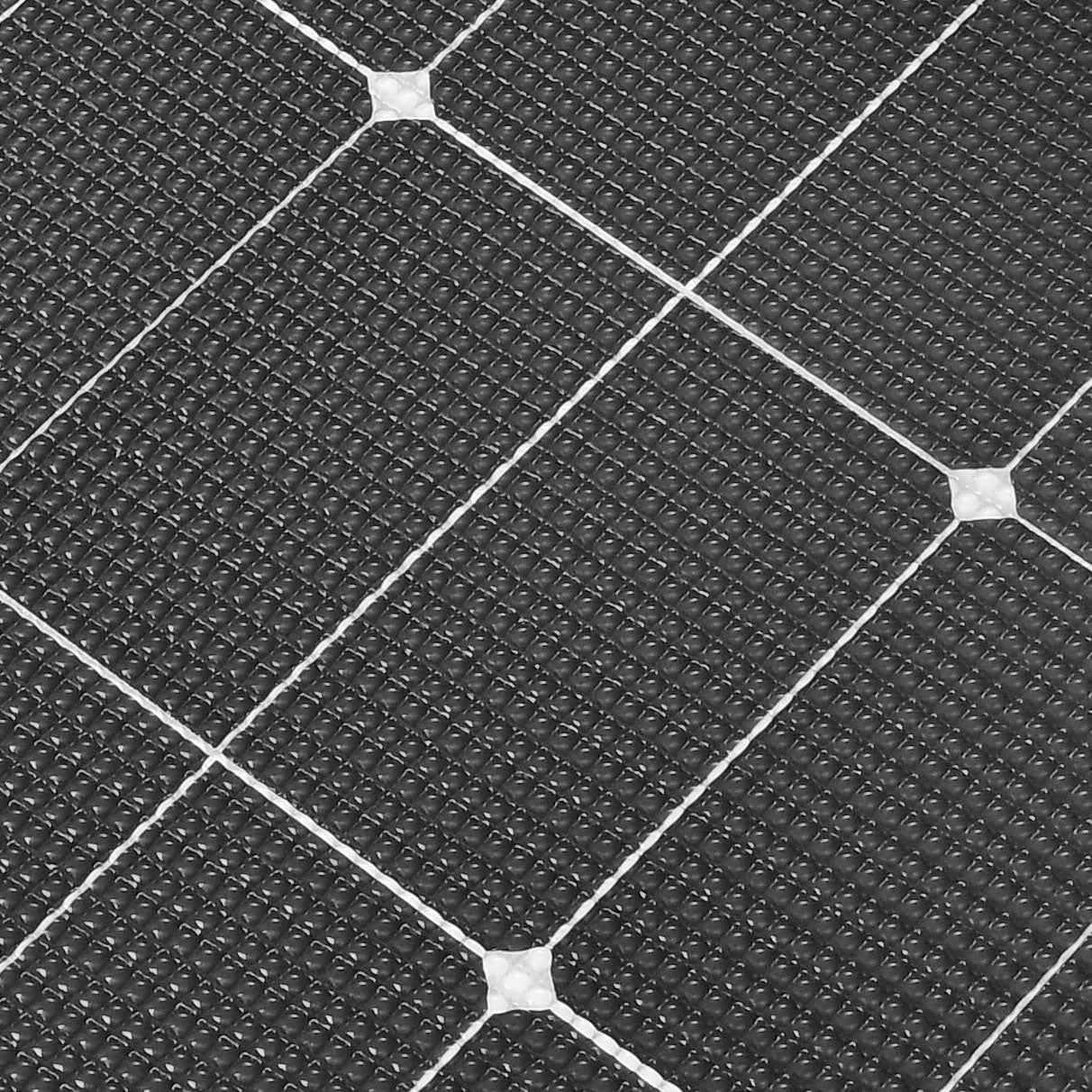

| 🧩 Cell Layout | 3 x 18 (18 are half cells) |
| 🛡️ Warranty | 5 years |
ℹ️ Module Loading Considerations
- Semi-rigid and flexible panels can be walked on with anti-slip or flat soft sole shoes.
- Semi-rigid panels and flexible panels can support a concentrated weight (minimum area of 2” x 2”) of up to 180 pounds, with a rigid backing supporting the panel. Avoid sharp objects, chair legs, or high heels on panels — these can crack solar cells. Semi-rigid or flexible panels can support a distributed weight in excess of 180 pounds if the panel has a strong rigid backing.
- Placing heavy objects (such as installation tools) on the surface of the panel during or after installation of the panel is acceptable. Remove all obstructions once panels are installed.
- Do not walk on panels that are installed on uneven surfaces.
- Do not apply excessive loads on the corners of the panel.
🎥 Unboxing 100 Watt Walkable Solar Panel
See what comes with our Walkable Solar Panel, including J brackets and polycarbonate backing for a complete, ready-to-use solar setup. Also, learn how CMP’s shade-tolerant design keeps power flowing even when parts of the panel are shaded. This advanced technology ensures reliable solar performance for boats, vans, and off-grid systems.

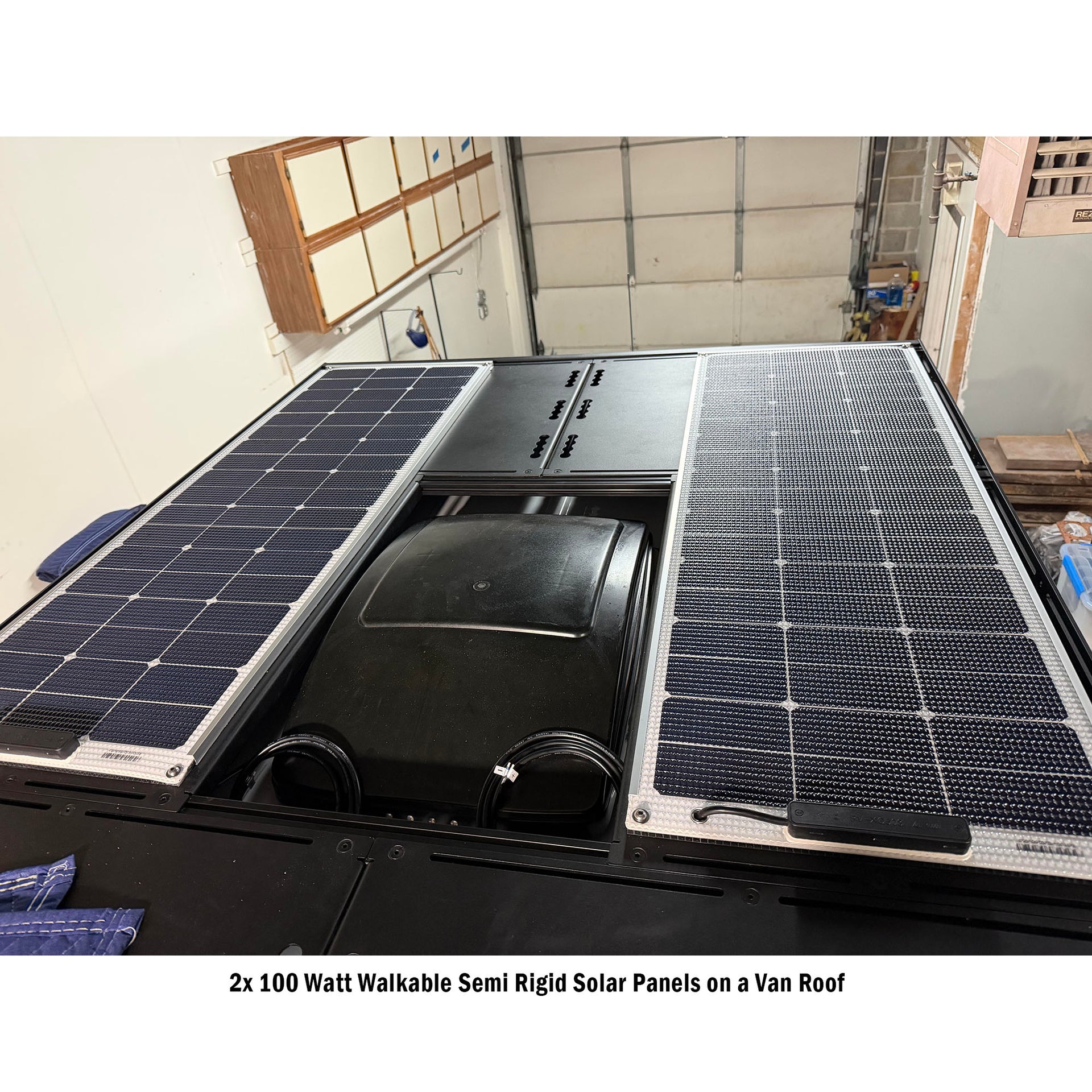

600 watts of WALKABLE Solar Panels on Van Roof
CMPower Walkable Solar Panels Installation on Catamaran
Best Mounting System for Your Walkable Solar Panels
