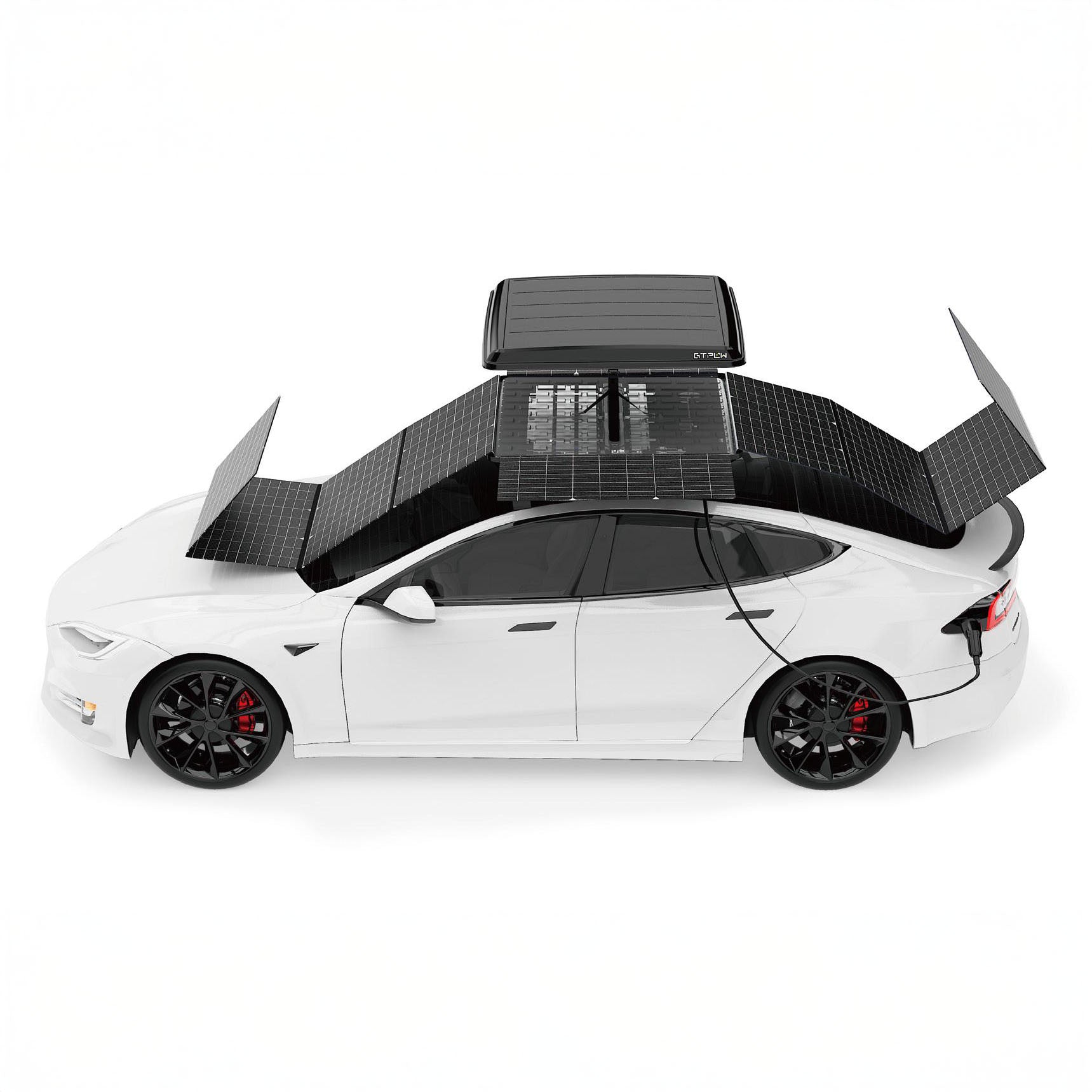

1600W Portable Solar EV Charger with 2.5kWh Battery – Tesla Compatible
Off-Grid Solar Charging for Electric Vehicles - Anytime, Anywhere
The CMP 1600W Solar EV Charger is a fully integrated off-grid solar charging system designed for electric vehicles. With a built-in 2.5kWh lithium battery, high-efficiency solar panels, and app-based smart control, this system enables independent EV charging without relying on grid power.
Ideal for Tesla owners, off-grid travelers, emergency backup power, and mobile charging applications, this charger delivers clean, renewable energy wherever the sun is available.
Introducing our new 1600W EV Solar Charger. It powers up to 50 miles per day!

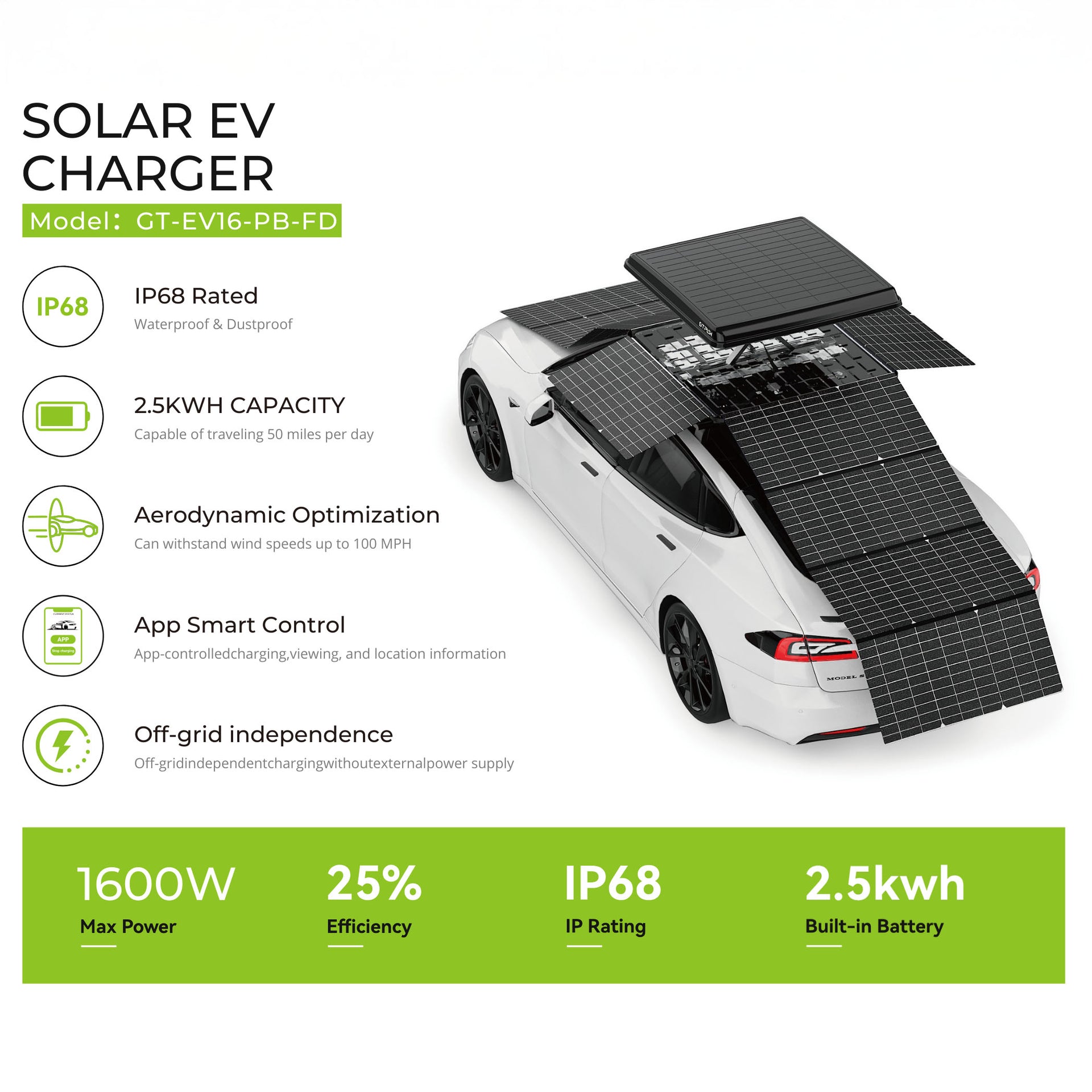

🔹 Key Features
-
1600W Maximum Solar Charging Power
-
Integrated 2.5kWh Lithium Iron Phosphate (LiFePO₄) Battery
-
Fully Off-Grid Operation (Off-grid independent charging without external power supply)
-
Tesla-Compatible EV Charging Interface
-
Smart App Control (App-controlled charging, viewing, and location information)
-
IP68 Rated (Waterproof & Dustproof)
-
Aerodynamic Design Optimization (Can withstand wind speeds up to 100 MPH)
-
Pure Sine Wave AC Output
-
Smart MPPT Solar Charging System
🔹 Technical Specifications
🔋 System Overview
| Maximum Solar Input Power | 1600W |
| Battery Capacity | 2.5 kWh |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Battery Rated Voltage | 48V |
| Operating Modes | Off-grid solar charging, grid-assist (optional), UPS |
| Inverter Type | Bi-directional AC/DC inverter |
| System Efficiency | Up to 99.9% (MPPT) |

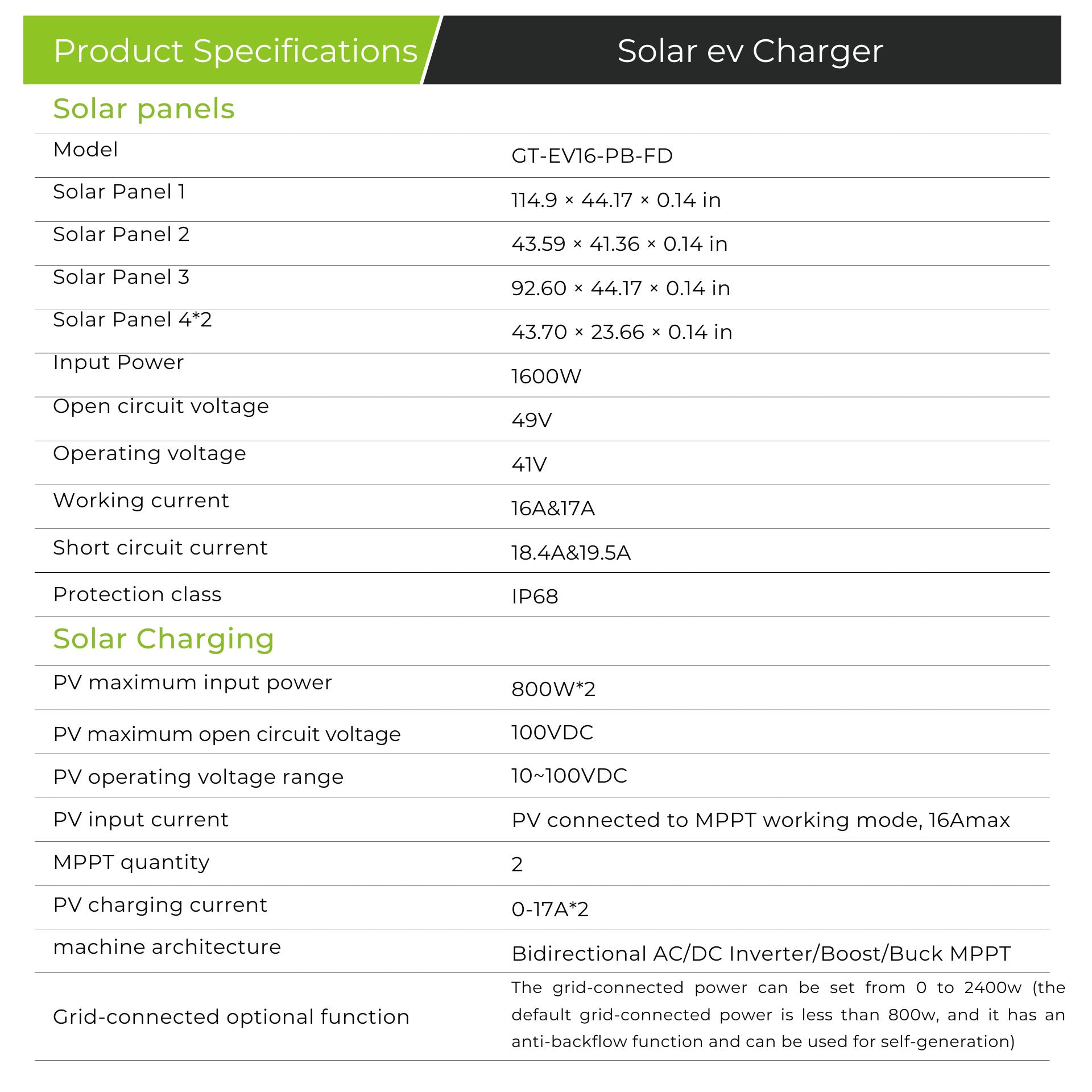

☀️ Solar Input Specifications
| PV Maximum Input Power | 800W × 2 MPPT |
| PV Max Open Circuit Voltage | 100V DC |
| PV Operating Voltage Range | 10–100V DC |
| PV Input Current | Max 16A per MPPT |
| MPPT Quantity | 2 |
| PV Charging Efficiency | Up to 96% |
| Solar Panel Protection Rating | IP68 |
🔌 AC Output Specifications
| Output Voltage | 120V / 230V / 240V (configurable) |
| Output Frequency | 50 / 60Hz (auto-detect) |
| Output Waveform | Pure Sine Wave |
| Rated Output Power | 1600W |
| Output Voltage Accuracy | ±0.1% |
| Noise Level | <45 dB |
🔋 Battery & Charging
| Charging Current | Adjustable, up to 40A |
| Charge Stop Voltage | 56.8V (adjustable) |
| Discharge Stop Voltage | 44V (adjustable) |
| Charge Control Stages | Pre-charge, CC, CV, Equalization, Float |
| Battery Protection | Over-charge, over-discharge, temperature protection |
| Idle Consumption | <20W |

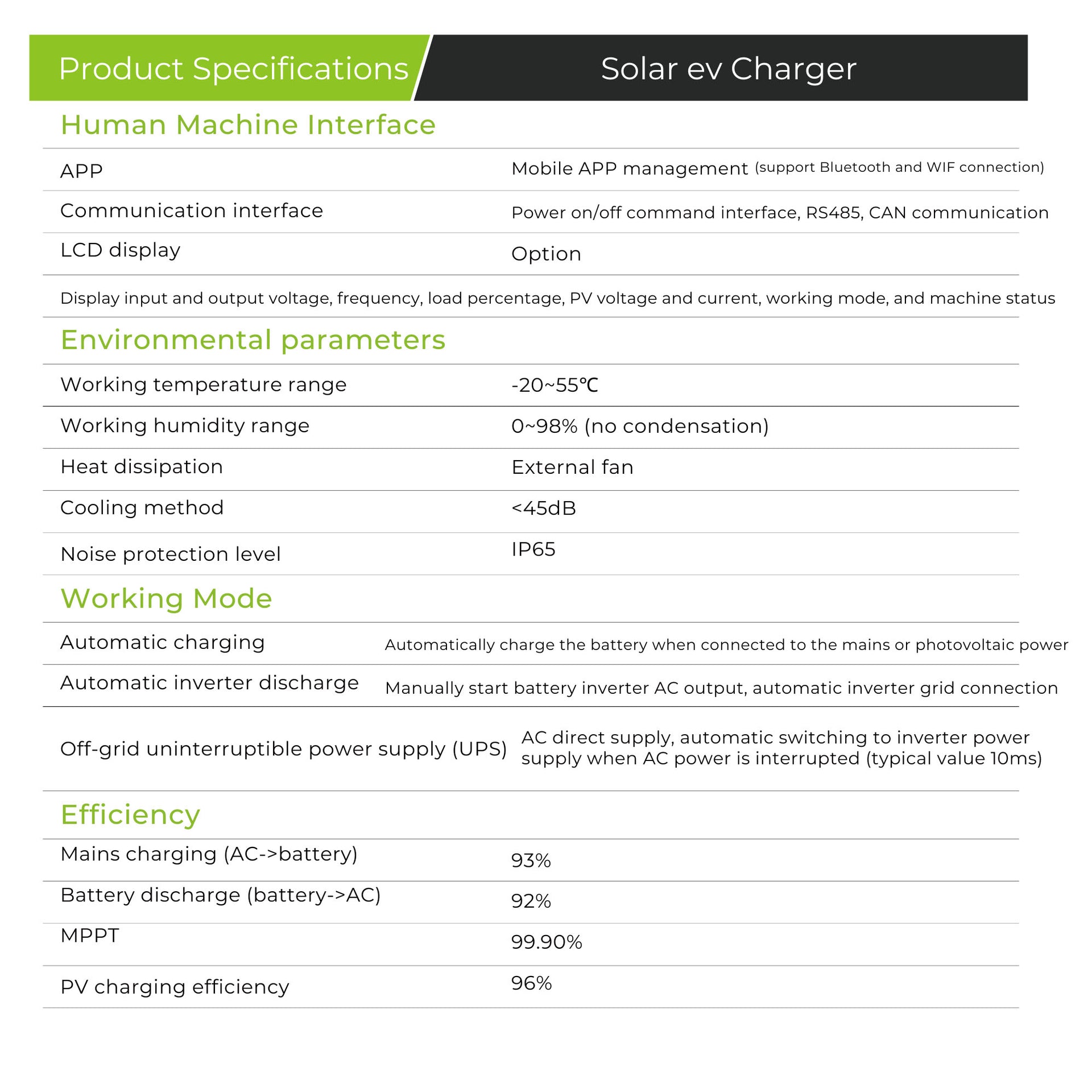

📱 Smart Control & Interface
| Mobile App | WiFi & Bluetooth |
| Display | LCD (optional) |
| Communication Interfaces | RS485, CAN |
| Selectable Charging Current | 6A / 8A / 10A / 13A / 15A |
| System Monitoring | Voltage, current, load, PV input, system status |
🌧️ Environmental & Physical Ratings
| Operating Temperature | -20°C to +55°C |
| Operating Humidity | 0–98% (non-condensing) |
| Cooling Method | External fan |
| Noise Protection Level | IP65 (unit) |
| Solar Panel Rating | IP68 |
| Wind Resistance | Up to 100 MPH |

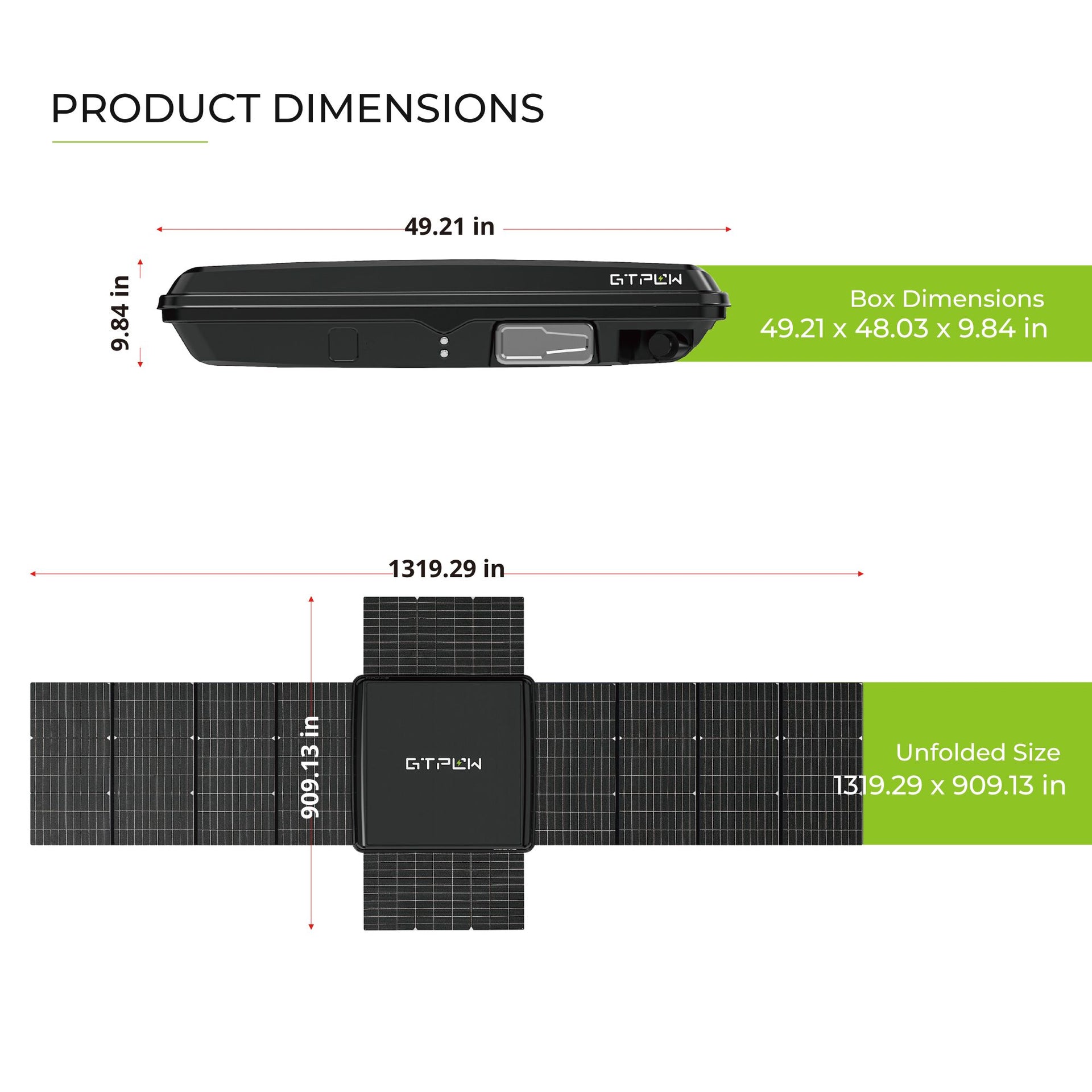

📐 Dimensions, Warranty & Certifications
| Box Dimensions | 49.21 × 48.03 × 9.84 in |
| Unfolded Size | Approx. 1319 × 909 mm |
| Workmanship Warranty | 5 Years |
| Power Warranty | 2 Years |
| Certifications | IEC 61215, IEC 61730, CE, IP68, ISO 9001 |
👉 Downloads & Technical Documents
For detailed electrical, mechanical, and performance specifications, you can download the complete product specification sheet below:
