Solbian SR 45C-W 45w Solar Panel - with Merlin Monocrystalline Cells
$522.41
$522.41
Shipping calculated at checkout.
Not Sure How Many Solar Panels You Need?
Try our Power Consumption Worksheet.
Make a copy of the worksheet and update with your information.
Wiring Diagrams
Table: Solar Panel Wattage Range vs. Appropriate Controllers
See All Solar Panel Specifications
Free Shipping
Solbian SR 45C-W 45w Solar Panel with new "Merlin" technology, Monocrystalline silicon solar cells, with a solar cell efficiency of 22%

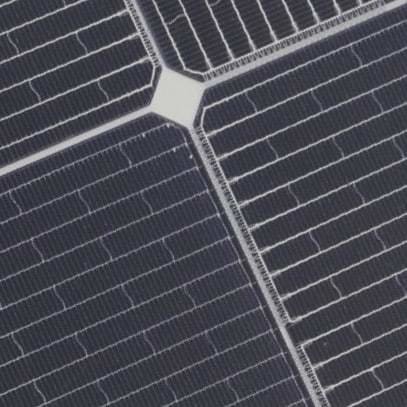

The monocrystalline high efficiency SR cells are sandwiched by two patented metallic grids. The grid in the front is carefully tailored to optimize current harvesting, while the grid behind the cell offers strong mechanical support. These grids essentially form a double shield that acts as a conducting reinforcement to the solar cell. Extreme crack and bend tolerance are built in, enabling novel crystalline silicon architectures. A guaranty of high efficiency and unmatched durability in flexible solar panels.
Comes with back side wiring for permanent installation on a cabin top or other hard surface.
There are integrated bypass diodes to minimize output losses associated with partial shading.
Specially designed and warrantied for the marine environment (waterproof and resistant to salt water and with extra UV protection), but easily adaptable for RV or motor coach installations.
Adaptable to any battery: from 5 to 48 volt, lead-acid or lithium.
These high quality panels are designed and manufactured in Italy.
Complete your solar array with a solar controller.
Specifications:
- Model: SR45C
- Rated Power: 45 Watts
- Peak Power Voltage (Vmpp): 7.9 Volts
- Peak Power Amps (Impp): 9.2 Amps
- Cell Conversion Efficiency: 22%
- Dimensions: 14.3" x 34"
- Weight: 2.4 lbs
