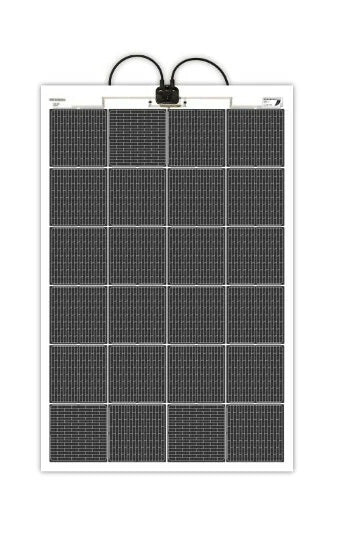

Solbian SR 108-JB 108w Solar Panel - with Merlin Monocrystalline Cells

Free Shipping

Solbian SR 108-JB 108w Solar Panel with new "Merlin" technology, Monocrystalline silicon solar cells, with a solar cell efficiency of 19%

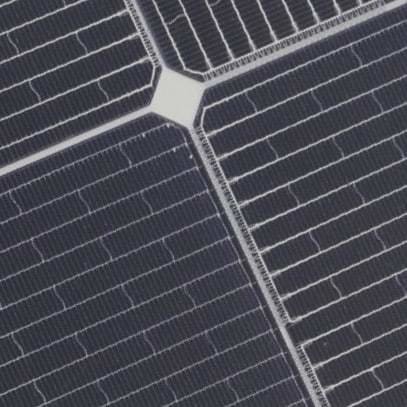

The monocrystalline high efficiency SR cells are sandwiched by two patented metallic grids. The grid in the front is carefully tailored to optimize current harvesting, while the grid behind the cell offers strong mechanical support. These grids essentially form a double shield that acts as a conducting reinforcement to the solar cell. Extreme crack and bend tolerance are built in, enabling novel crystalline silicon architectures. A guaranty of high efficiency and unmatched durability in flexible solar panels.

Comes with a Junction Box installed with MC4 connectors for installation on a bimini, dodger or other surface where the flexibility of removing the panel for storage or to retract your canvas is a desired option.

There are integrated bypass diodes to minimize output losses associated with partial shading.

Specially designed and warrantied for the marine environment (waterproof and resistant to salt water and with extra UV protection), but easily adaptable for RV or motor coach installations.

Adaptable to any battery: from 5 to 48 volt, lead-acid or lithium.

These high quality panels are designed and manufactured in Italy.

Choose a solar controller and any necessary cable with MC4 connectors to complete your solar array.

Warranty: 5 years product and performance

Specifications:

• Model: SR108JB
• Rated Power: 108 Watts
• Peak Power Voltage (Vmpp): 12.6 Volts
• Peak Power Amps (Impp): 9 Amps
• Cell Conversion Efficiency: 19%
• Dimensions: 26.9" x 41.2"
• Weight: 3.7 lbs
